Dynamic Checkweigher System for Carton Packaged Biscuit Food Large Range Check Weigher with Drum Conveyor China Price
Checkweigher as known as weight inspection machine, check weigher, check weight machine, check weighing machine, weight checker, weight sorting machine, and etc,.
The sorting range and related parameters of the large range checkweigher system for carton can be set, and users only need to simply set the upper and lower limits. The remaining operations are automatically completed by the sorting scale. Dynamic check weigher with drum conveyor can be embedded in various production/transportation lines, characterized by low cost, judgment, and strong universality. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

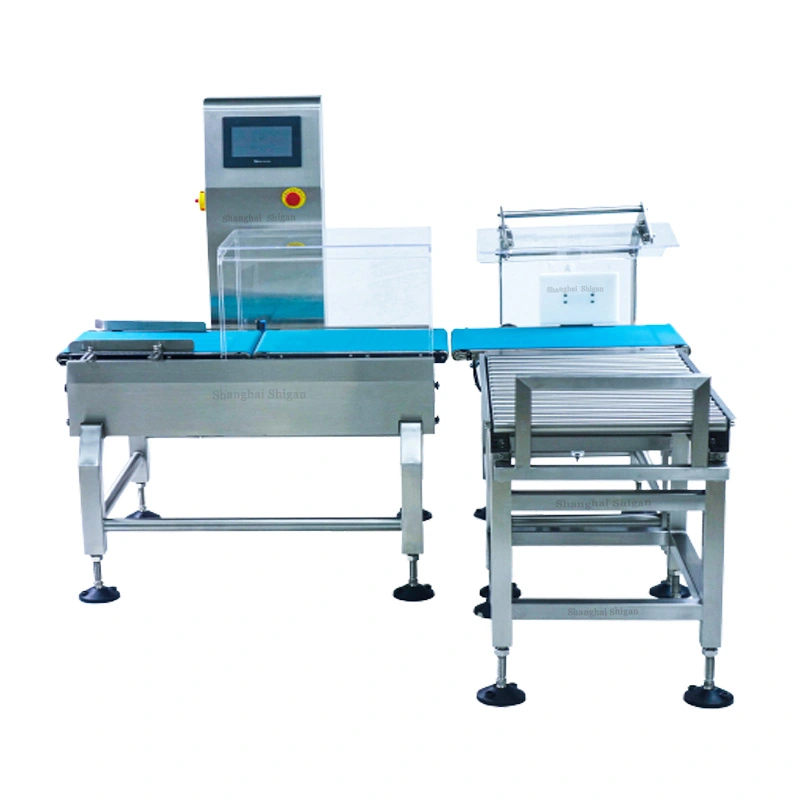

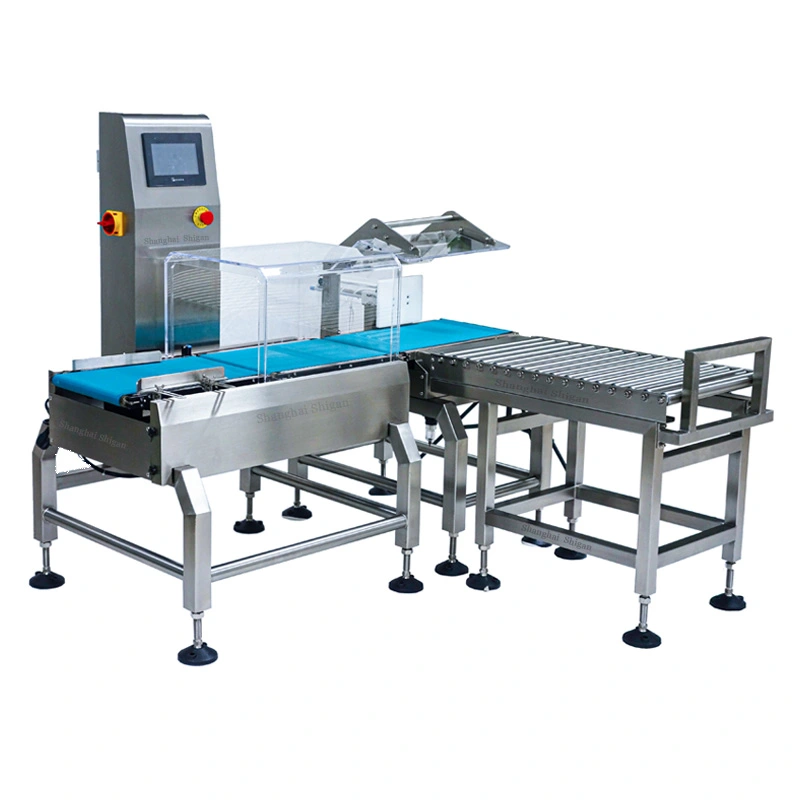

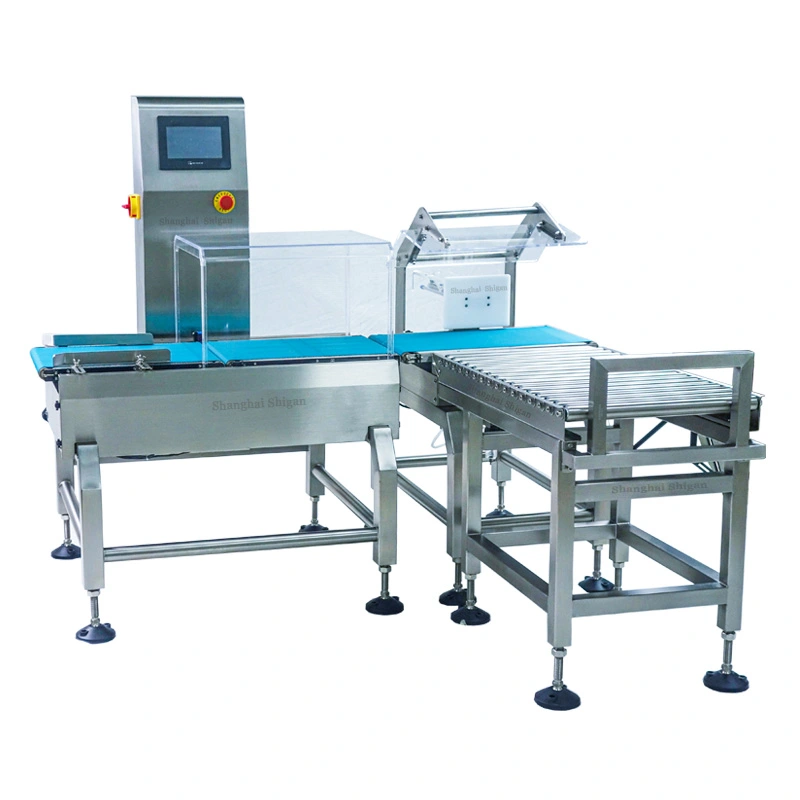

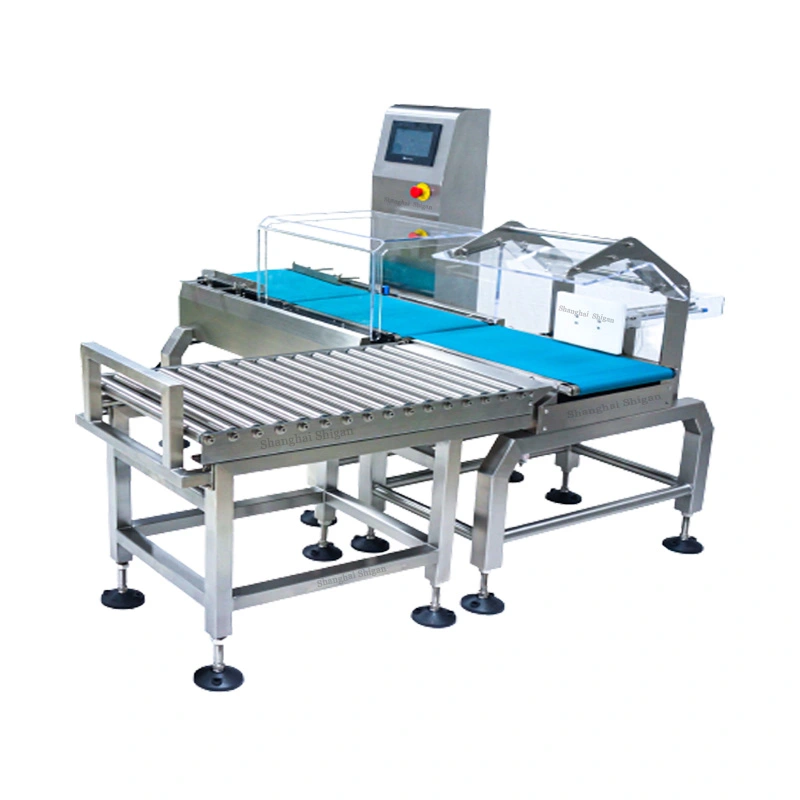

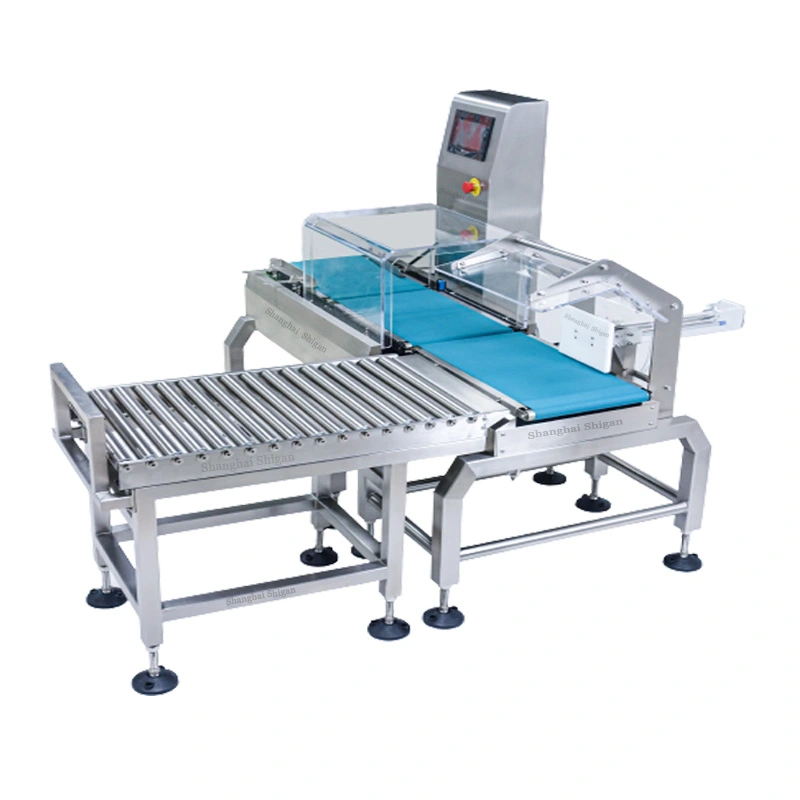

Long range roller checkweigher system pictures
TypeSG-450
Weighing Range0.05-20/40kg
Limited of productL: 500 W:450 H: 3-400mm
Accuracy±1g
Division Scale0.1g
Belt Speed0- 40 m/min
Max Speed40 pcs/min
Belt Width450mm
Machine Weight100kg
Power SupplyAC 110/220V ±10% 50HZ
Power100W
Main MaterialSU304 stainless steel
1. According to the external dimensions of the tested product and the working environment in which the equipment operates, there are also slight differences in the accuracy of the testing speedometer
2. All specifications and parameters can be customized according to needs
The large range checkweigher system is used to detect the missing quantity of individual items in bags, bags, boxes, bottles, cans, boxes, and other products, such as missing bottles in the entire box, missing cans in the entire box, missing parts in the entire box, missing bags in the entire bag, missing bags in the entire strip, etc.
1. Color touch screen, intelligent and compact design structure;
1. Automatic program setting adjustment, more stable and easier to operate;
2. Using HBM weighing sensors to ensure high accuracy and stability;
3. Sturdy SUS304 structure, stable performance, and accurate weighing;
4. Refuse selection of arms, air jets, or pneumatic thrusters;
5. The belt can be disassembled without the need for tools, making it easier to clean;
6. Install machine sized emergency switches for user-friendly operation;
7. Clearly display the production situation (optional);
8. Large range checkweigher system can record 10 different product parameters,
Shanghai Shigan Industry Co., Ltd.
Our service and strength
1. With over ten years of experience in professional quality testing equipment, we always pay attention to customer needs.
2. The use of a digital intelligent modular design with low maintenance costs and a people-oriented approach results in excellent performance and convenient operation and maintenance.
3. Strong R&D and design capabilities can be customized according to customers' special requirements.
4. The main products include digital metal detector,conveyor belt metal detector,automatic checkweigher metal dtector, checkweigher, high-speed and high-precision checkweigher and etc,.
The Delivery Date: After receiving the payment, the delivery date will be within 15-30 working days
Packaging: Protective film + wooden case
Logistics: Air, sea or express (DHL, etc.)
The Freight: The cost of transport depends on the destination, mode of transport and the weight of the goods
Pay: T/T, Western Union, paypal
1. A manual/video for machine installation, adjustment, setup, and maintenance for your use.
2. If any problems occur and you are unable to find a solution, you can communicate online 24 hours a day.
3. The machine has a one-year warranty period for parts that are not damaged by human factors. We will replace it with a new one for free. After the machine is shipped and we receive the bill of lading, the warranty will begin.
4. Shanghai Shigan has an independent after-sales service team. Please call the salesperson or our after-sales manager in any emergency situation.
