Dairy Food Conveyor Belt Metal Detection Machine Cheap Digital Metal Detector With Multiple Removal System Supplier Price
The dairy food metal detector with removal developed by our company has excellent performance, fully automatic foreign object and defect detection algorithm, and high detection sensitivity. The digital metal detection machine has reliable quality, simple operation, and multiple functional modules such as data statistics, data storage, and network communication, with complete functions. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

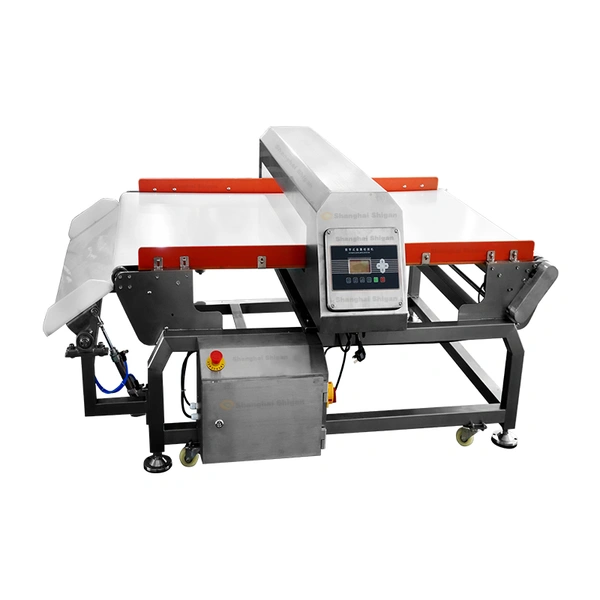

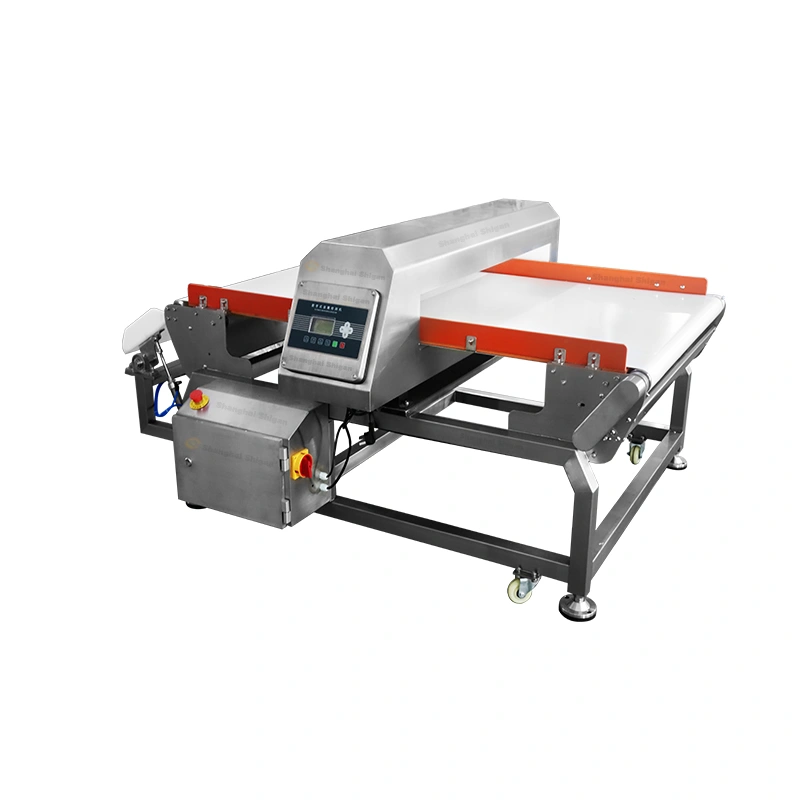

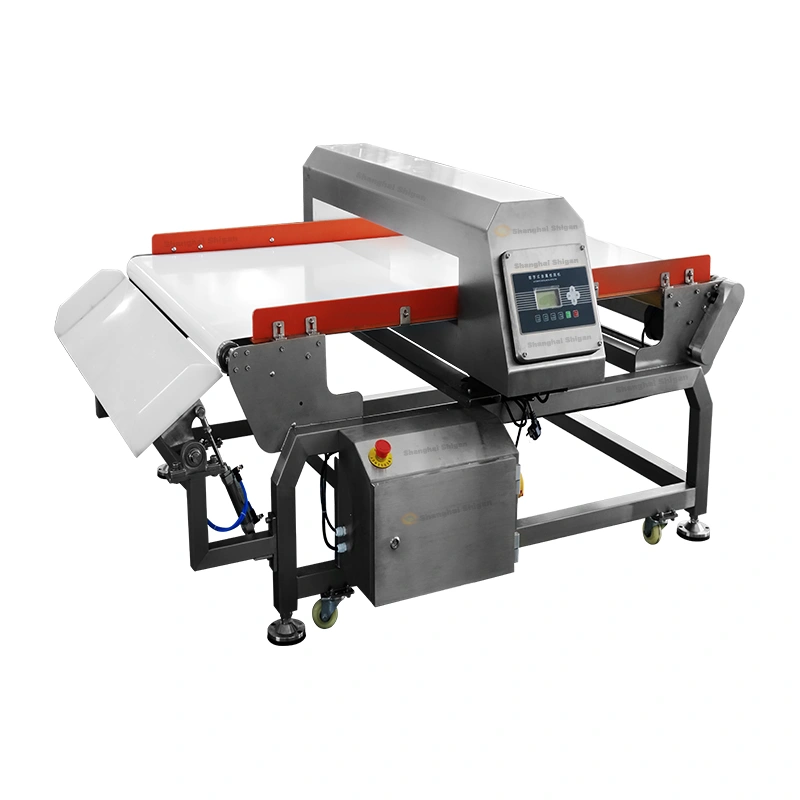

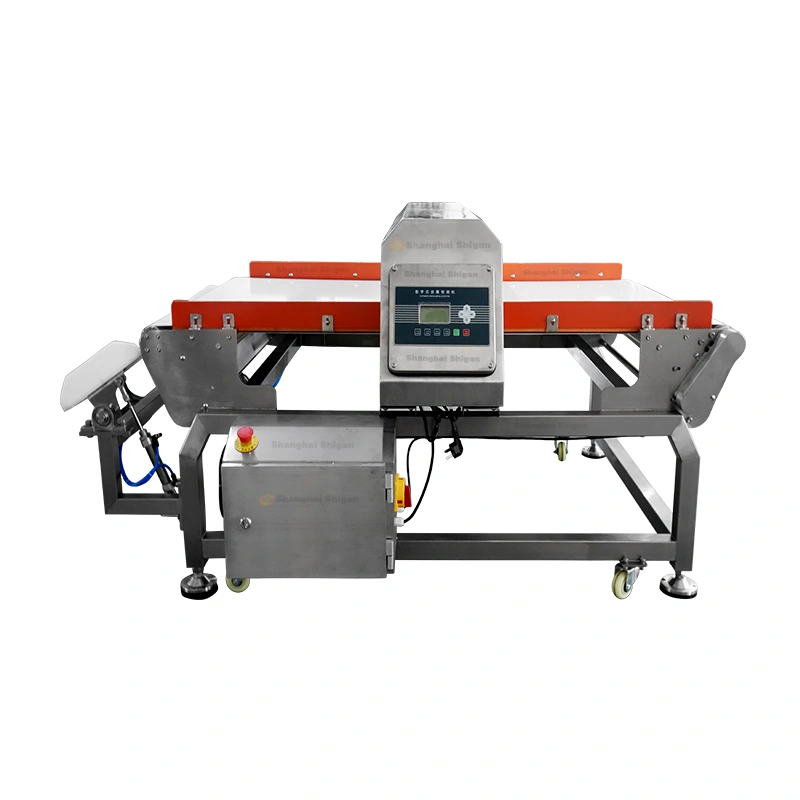

Dairy food metal detector with removal photos
◆ Detection window height: 120 mm. (Regular size: 100/120/150/200mm, other heights can be customized according to requirements, and the higher the window height, the lower the sensitivity accordingly.)
◆ Detection window width: 300-500 mm.
◆ Body material: Made of all stainless steel.
◆ Sensitivity: Iron ball φ 0.8mm- φ 2.5 mm
◆ Non ferromagnetic metals such as stainless steel 304 type copper and aluminum ≥ φ 1.2 mm.
◆ Power supply: 220V 50Hz.
◆ Power: 120W.
◆ Alarm method: Audible and visual alarm, and automatic shutdown.
◆ External dimensions (length × wide × Height (mm): 1600 × eight hundred and forty × 1005.
◆ Weight: approximately 250 kg.
1st step: Customer has showed his special requirements.
2nd step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3rd step: Making the conceptive CAD drawing based on communication and understanding.
4th step: Making the detail and 3D drawing agter fixed the design and other details.
5th step: Offer the quotation after confirm the design,material and surface treament.
6th step: Making the sample for approval.
7th step: Testing installation after demo mock up.
8th step: Big production delivery and service after sales.
1. The movement, main electrical components and conveyor belt are imported, and the circuit control system is programmed by computer chip, which makes the machine more accurate, reliable and stable.
2. This Food industry metal detector has an automatic control system, which uses special magnetic sensitive materials and special technology to make it scientific, so that the detection accuracy of the needle detector is particularly high.
3. This Food industry metal detector has the advantages of high detection accuracy and high detection thickness.
4. Automatic detection, automatic sensing, 0-10 sensitivity stepless adjustment. In case of needle breakage, the conveyor belt will automatically stop and return.
5. Food industry metal detector also has two alarm modes: sound effect and light.
6. Automatic shutdown and power-saving function are not detected for 10 minutes.
7. Luxury appearance, novel style, time-saving and power-saving, convenient and fast.
Dairy food metal detector with removal is mainly used in industries such as food, medicine, toys, clothing, handbags, textiles, plastics, footwear, printing, paper luggage, etc., for detecting metal foreign objects such as broken needles and iron wires mixed or lost in raw materials or products.
Shanghai Shigan Industrial Co., Ltd. was established in 2010 and is a leading high-tech company with over 13 years of experience in metal detectors and checkweighers. The main products include digital metal detector,conveyor belt metal detector,automatic checkweigher metal dtector, checkweigher, high-speed and high-precision checkweigher and other series of assembly line detection equipment. Shanghai Shigan has its own research and development team, with many experienced engineers and workers in design and manufacturing. Shanghai Shigan can provide customized services to customers to meet their special requirements for machines. Shanghai Shigan has a CE certificate and has been sold to many foreign countries. Due to our professional service, high-quality products, and competitive prices, we enjoy a reliable reputation among our customers. If you are interested in our machines, please feel free to inquire.
Packaging
Film pack inside, Wooden case outside
Shipping
1. Upon receipt of payment, delivery date will be in 20-30 working days
2. By Air, by Sea or by Express (DHL, UPS, TNT, EMS, etc.)
1. We will deliver the machine and provide a load list on time to ensure that you can quickly obtain the machine
2. We often ask for feedback and provide assistance to customers whose machines have been used in their factories for a period of time.
3 We offer a one-year warranty
4. Trained and experienced employees will answer all your inquiries in English and Chinese
5.12 month warranty and lifetime technical support.
6. Your business relationship with us will be kept confidential to any third party.
7. Provide good after-sales service. If you have any questions, please contact us.
