Digital Bakery Food Factory Metal Detector, Anti-interference Dynamic Metal Detector
Products Description
The probe part of the digital metal detector adopts a special induction design, which greatly improves the sensitivity and anti-interference ability of the instrument. The dynamic food metal detector has a light-controlled automatic alarm. When a metal foreign body is detected, both sound and light will alarm at the same time, and the conveyor belt will stop.Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

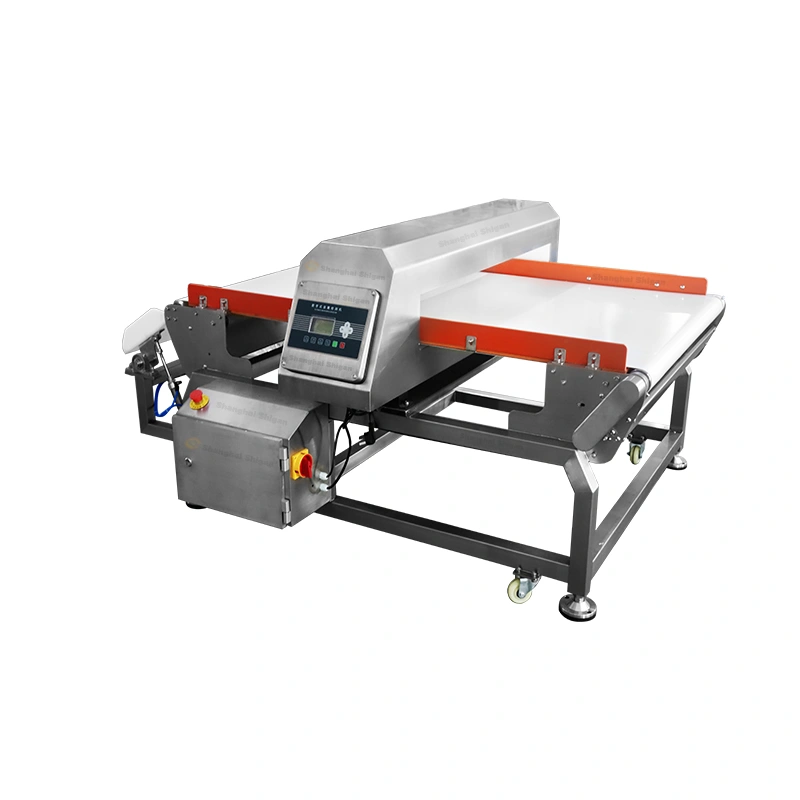

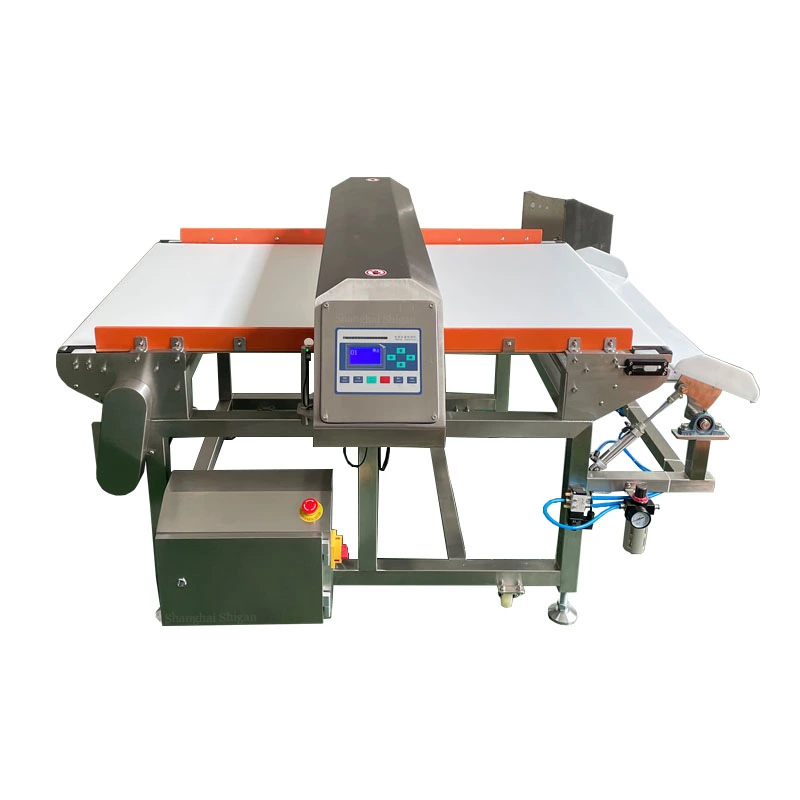

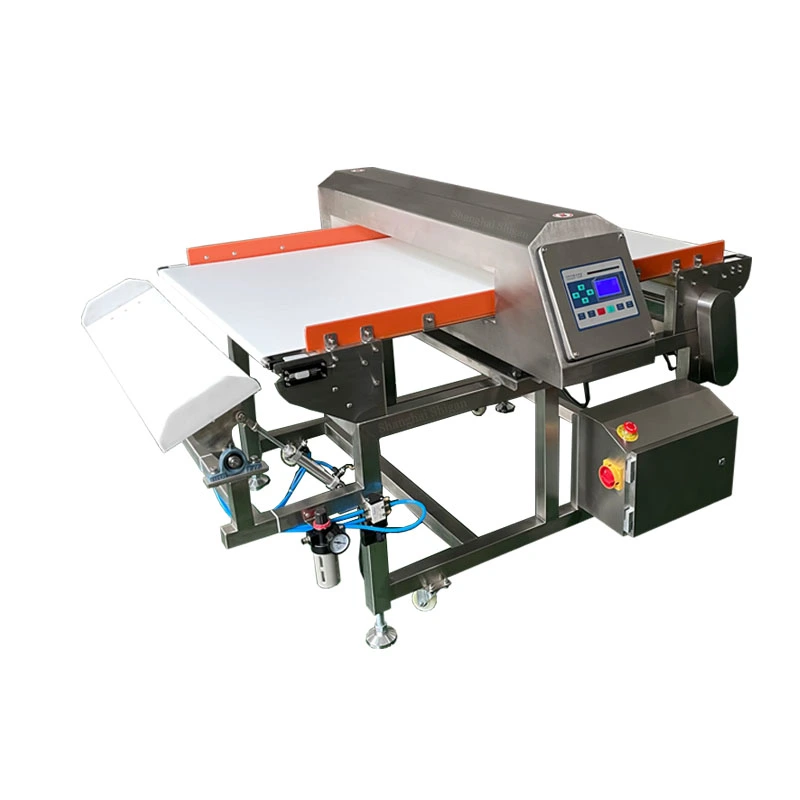

Digital metal detector pictures
Specifications
Metal detector detection method: electromagnetic induction
Detection sensitivity: Fe￠0.6mm
Detection surface width: 400mm detection height 100mm
Alarm mode: buzzer, reject mode
Conveying speed: 25m/min (50HZ)
Power supply: AC220V/380V 50-60HZ
Power: about 200W
Dimensions: 1800mm(L)*680mm(W)*850mm(H)
Weight: about 160Kg
Customized
1. The above sensitivity is for empty machine detection, and the actual sensitivity should have product effects that may vary depending on the product
2. The parameters are for reference only. If there are special requirements, they can be customized according to the requirements
Features
1.The body is made of all stainless steel 304 wire drawing, and the conveyor belt is a white non-toxic food-grade PU special conveyor belt that meets the US FDA standard.
2. LCD display, Chinese and English menu-style pictures, easy to realize man-machine dialogue operation.
3. It has a memory function. Through the fast self-learning function, it can be used once automatically set and has a memory function. It can store more than 100 product detection parameters, which can be adapted to more product groups.
4. Good waterproof performance, suitable for damp, cold storage and other environments.
5. It can pass water-containing, salt-containing and oil-containing products.
6. The probe is a digital all-metal probe, filled with epoxy resin to ensure the stability and service life of the equipment
7. The motor speed is 26-35 meters per minute (speed-regulating motor is optional), and supports 24 hours of uninterrupted work.
8. Conveying direction: facing the operation panel from left to right, the height of the conveyor from the ground, 700mm
9. Motor power: 120w; power supply, AC220V±10%, 50-60Hz.
Application
Digital Metal Detector is mainly used for metal detection in various industries such as food, medicine, toys, clothing, health care products, and cosmetics.
Our Company
Shanghai Shigan Co., Ltd. is a packaging machinery automation equipment manufacturer integrating R&D, design, production and sales. Located in the developed area of the machinery industry-Shanghai, China, it upholds "Excellent Service, Good Quality". The company has complete equipment and independently produces various mechanical transmissions and hardware accessories. The courage to research innovative technology and continuous improvement has won unanimous praise from the majority of enterprises. Shanghai Shigan has always been committed to the R&D and manufacturing of a series of packaging testing equipment such as automatic checkweighers, digital metal detectors, vertical packaging machines, prefabricated bag packaging machines, multi-head weighers, linear scales, etc., bringing products that balance performance and price To every corner of the world.
After Sale Service
Over the years, our company has continued to innovate and improve after-sales service. It has always been based on the idea of serving customers as the core, providing users with stable and high-quality projects, while adhering to the purpose of "pursuing excellence and moving towards the future". Good after-sales service makes customers feel relieved to buy and use happily. Good products in the world require follow-up after-sales service. In order to eliminate customers' concerns about future maintenance of products, our company solemnly makes the following commitments regarding after-sales service.
1. The customer will have a free warranty within one year from the date of acceptance, and will be responsible for maintenance throughout his life.
2. Answer all questions of customers and achieve high-quality service.
3. Establish a customer after-sales service staff responsible for the system, each time the service is completed, an after-sales service form must be filled in and the customer signed and approved for storage.
4. Warm and serious reception of visiting customers, and deal with related matters in a short time until the customers are satisfied.
