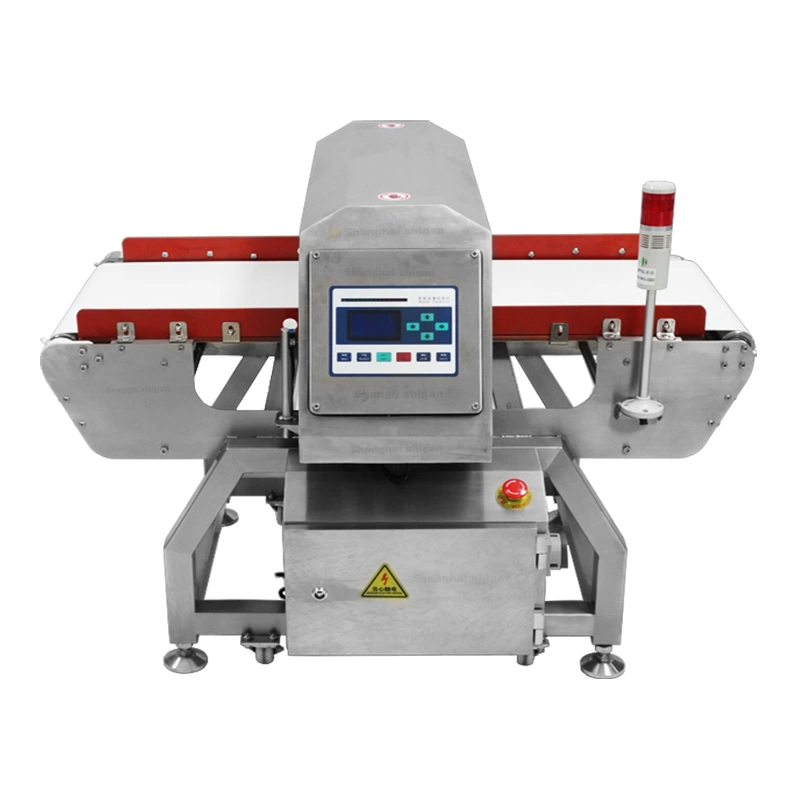

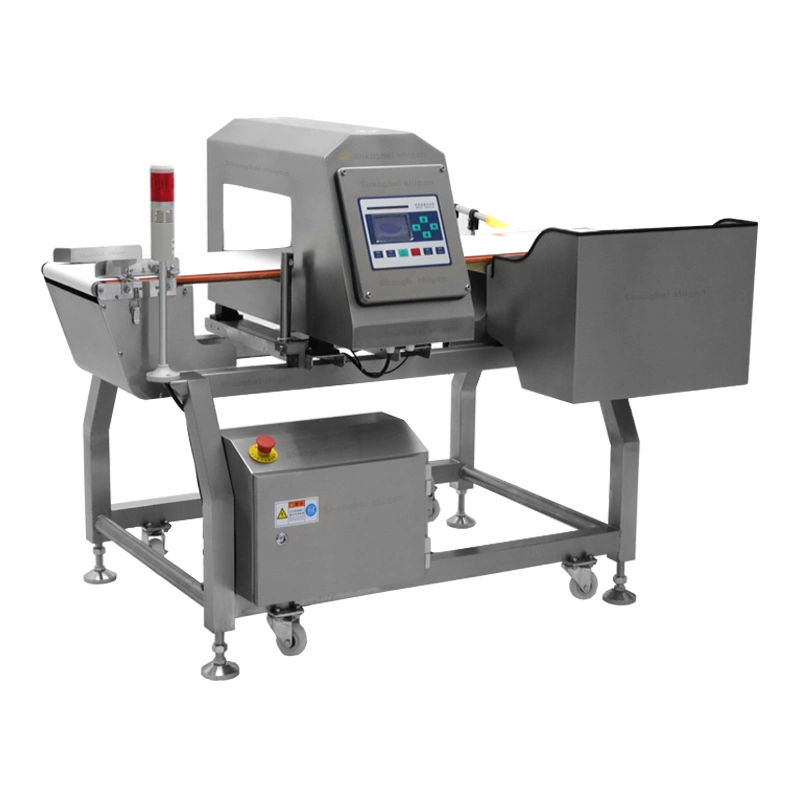

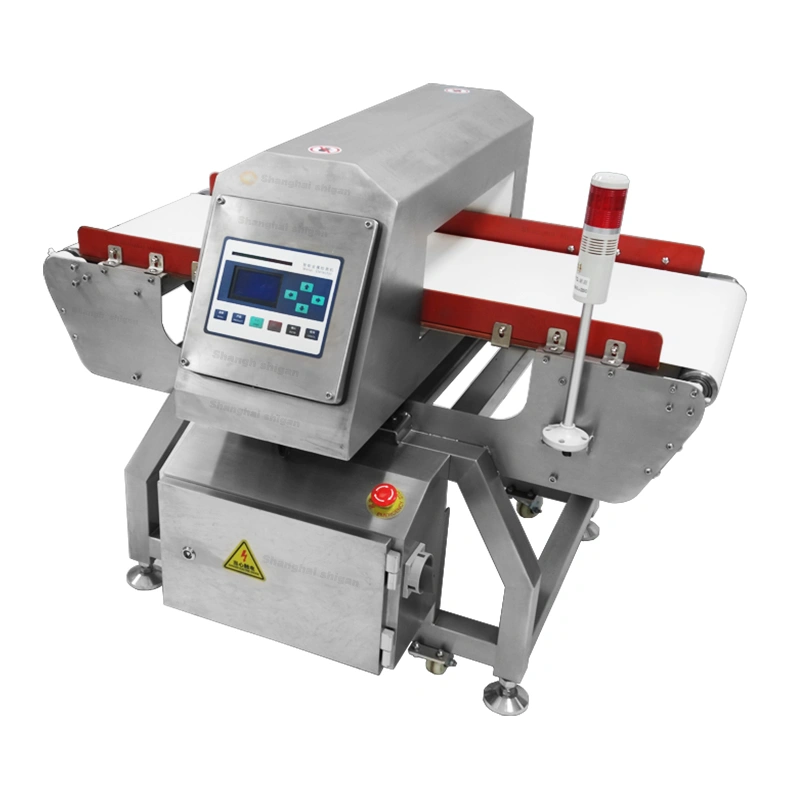

Plastic Aluminum Foil Packaging Food Automatic Metal Detector Digital Metal Detection Machine
Product Description
This is a digital metal detection machine, which can be used for food metal detection of plastic packaging and aluminum film packaging. Automatic metal detector has the function of automatically flipping and rejecting metal foreign bodies. The length and size of the digital metal detector for food can be designed and manufactured as required. Designed with European and American standards, the whole machine design meets the requirements of food machinery and is suitable for connecting assembly line inspection operations.For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.
Parameter
Model category: standard model
Detection channel width (mm): 300-400 (customizable)
Detection channel height (mm): 100 (customizable)
Detection sensitivity: iron ball diameter (φmm) 0.6-0.8; 304 stainless steel diameter (φmm) 1.2; copper, aluminum, lead and other non-metals (φmm) 1.2
Alarm mode: buzzer, LED sound and light alarm, and automatic shutdown
Machine material: 304 stainless steel
Machine size: 1520*860*930MM
Machine weight: about 200㎏
Power supply: AC220V 50-60Hz
Power: about 140W
Load capacity 5-25KG
Conveying speed: 24m/min (50Hz)
Parameters are for reference only, customized according to requirements
Customized
1. The properties of the tested product are also different from the usage environment, resulting in slight differences in actual detection speed and accuracy
2. The displayed machine is of standard specifications, and other sizes and special requirements can be customized
Main Advantages
1. Digital,metal detection machine adopts dual-channel signal detection circuit merging technology, especially high detection sensitivity and product effect suppression ability, and it is widely used. It has a dual-channel signal display function. When a metal object passes through, the indicator light will display different induction intensities according to the size of the metal. Using DDS frequency synthesis, DSP digital signal processing, power amplifier and other technologies, the industry technology is good.
2. Adopt dual high-speed digital signal processor design, with high detection accuracy and high-speed processing speed, with product effect adjustment function. For example, wet products, sugar-containing products, and salt-containing products will produce metal-like signals to the metal detector. This effect will affect the detection effect. This function can reduce the product effect and achieve a better detection effect.
3. The mechanical structure is easy to disassemble, which is convenient for users to clean and maintain.
4. Food metal detector can be used for supporting production on assembly line.
5. Fully welded food-grade 304 stainless steel frame, high-grade protection motor for choice, higher IP69 protection grade, suitable for particularly harsh working environment.
6. Alarm mode: buzzer alarms and shuts down, or optional reject device.
7. A variety of removal methods are available (push rod, flap, blow, etc.) to ensure accurate and reliable removal of foreign objects and reduce material waste to a large extent.
Application
The digital metal detector is suitable for food, medicine, toys, clothing, shoemaking, chemical industry, leather, knitting and other industry products, and is used to detect metal impurities mixed in various products or raw materials in the production and processing process. Such as: iron and non-ferrous magnetic metal objects (common metals such as iron, copper, aluminum, stainless steel can be detected).
Details
Our Company
About our company
1. Founded in 2010.
2. Shanghai High-tech Enterprise.
3. We have more than 10 years of experience in the field of packaging machinery, and have our own factory, which can provide you with the most suitable project for your needs.
4. 6-8 international machinery exhibitions every year.
5. Supply OEM/ODM manufacturing.
6. Multiple engineers to ensure quality/service.
7. As a manufacturer and trader, we have very good quality and price control of our products.
8. Products are exported to more than 40 countries including the United States, Canada, Mexico; Australia, New Zealand; Saudi Arabia, Italy, Spain; France, Poland, Israel, Russia, South Korea; Thailand, Indonesia, Malaysia, the Philippines, etc.
Packing Detail:
Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
Shipped in 20 days after payment
After Sale Service
1. Service tenet: fast, decisive, accurate, thoughtful and thorough
2. Service goal: service quality wins customer satisfaction
3. Service efficiency: If the equipment fails during the warranty period or outside the warranty period, our company will arrange maintenance personnel to provide maintenance services for customers within 24 hours after receiving the notice.
4. Service principle: The product warranty period is one year. During the warranty period, our company will repair the parts damaged due to quality reasons for free. If the parts are damaged outside the warranty period, only the cost will be charged for the accessories provided. If due to human factors If the equipment is damaged, the parts repaired or provided by our company are calculated at the cost price.
