10-lane Strip Pack Multi Lane Weight Inspection Checkweigher Small Pouch Coffee Powder High-precision Multi-line Checkweigher

The high-precision multi-line checkweighers a high-precision online weight detection equipment. Using the weighing detection method to test packaged products, qualified products will automatically pass through the conveyor belt, and unqualified products will be removed. The sorting range and related parameters can be set, and users only need to simply set the upper and lower limits to automatically complete the operation by the small pouch multi lane checkweigher.
tag:

10-lane Strip Pack Multi Lane Weight Inspection Checkweigher Small Pouch Coffee Powder High-precision Multi-line Checkweigher

High-precision checkweigher also called check weigher, check weight machine, check weighing machine, weight checker machine, weight sorting machine, weighing scale, and etc,.


The high-precision multi-line checkweighers a high-precision online weight detection equipment. Using the weighing detection method to test packaged products, qualified products will automatically pass through the conveyor belt, and unqualified products will be removed. The sorting range and related parameters can be set, and users only need to simply set the upper and lower limits to automatically complete the operation by the small pouch multi lane checkweigher. Due to the many setting options on a large touchscreen, it is easy to operate. For further information about our services, please contact us.

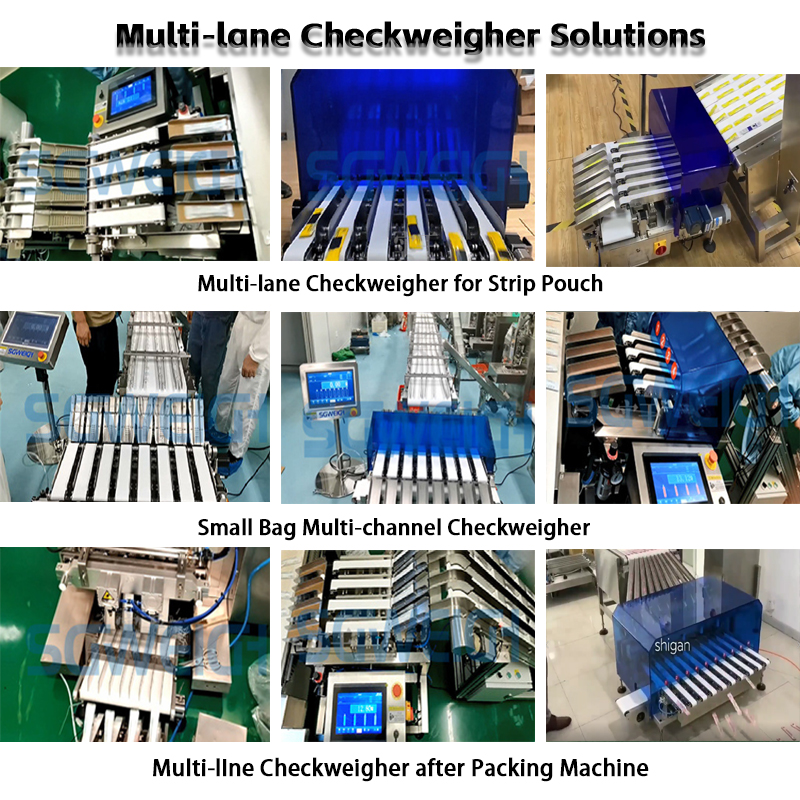

Box clamping conveyor checkweigher pictures

10-lane High-precision Multi-line Checkweigher

10-lane Strip Pack  Multi-line Checkweigher

Multi Lane Weight Inspection Checkweigher



Weighing range 1-30g


Minimum scale 0.01g


Maximum sorting speed of 50 pieces/minute (one channel)


Conveying speed 20-100m/min


Operation mode: Touch based operation


The conveying direction can be arranged according to the actual situation on site


Removal method: lifting removal


Belt height above ground 450 ± 50mm (customizable according to customer requirements)


Machine structure stainless steel (SUS304)


Power supply 220V 50-60HZ


Power approximately 1000W

1. The minimum speed and accuracy of weight inspection vary depending on the actual product being tested.


2. The standard model is only for selection reference, and the specific parameter requirements are customized according to the actual needs of users.


3. Selection: Pay attention to the direction of movement of the product on the belt. If the product is transparent or semi transparent, please inform our company.



1. The parameters of different products can be set to store 100 types of detection data, making it convenient for users to switch and call.


2. Data statistics function. The total number of products passed over a period of time/the total number of products that are too light/the total number of products that are overweight.


3. The mechanical structure is simple, and the buckle type conveyor belt is convenient for disassembly, cleaning, and maintenance. Complies with GMP and HACCP specifications.


4. Automatic dynamic compensation value and dynamic zero point tracking, including zero point tracking during continuous equipment operation, to ensure the reliability of detection data.


5. The curve/bar chart displays the statistical distribution of sorting (re inspection) results, and the window displays the values of the last 10 re inspection results.


6. Adopting patented technology, the microcontroller system is independently developed, with a unique filtering algorithm that has ultra-high accuracy and reliability. Ensure system stability.



High-precision multi-line checkweigher is widely used in industries such as food, medicine, packaging, printing, logistics equipment, IT digital, home appliances, stationery and toys, precision manufacturing, agricultural product processing, etc. for dynamic weighing, missing parts, multi item detection, and multi-level sorting.




Our company introduction

1. Established in 2010.

2. High tech enterprises in Shanghai.

3. We have over 13 years of experience in the field of weighing scale machinery and have our own factory, which can provide you with the most suitable projects for your needs.

4. 6-8 international machinery exhibitions per year.

5. Supply OEM/ODM manufacturing.

6. Multiple engineers to ensure quality/service.

7. As manufacturers and traders, we have good quality and price control over our products.

8. The products are exported to over 40 countries such as the United States, Canada, and Mexico; Australia, New Zealand; Saudi Arabia, Italy, Spain; France, Poland, Israel, Russia, South Korea; Thailand, Indonesia, Malaysia, Philippines, etc.

9. Our main products include: hdigital metal detector,conveyor belt metal detector,automatic checkweigher metal dtector, checkweigher, high-speed and high-precision checkweigher and a series of assembly line equipment.









Packing Detail:

Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.



Delivery Detail :

Shipped in 15 days after payment





1) Warranty period: 1 year. During this period, if there is any non human damage to the parts, we will replace them free of charge.


2) Quality: The product quality will be strictly checked and each machine will be tested to ensure that it can function properly before packaging.


3) Technical service: After the machine is sold, we will always keep in touch with the customer. If you need any assistance with the machine, please contact us immediately.
