4 Lines Multi-line Small Bag Check Weigher High-precision Checkweigher Dynamic Online Customized Check Weighing Scales Factory
High-precision checkweigher also called check weigher, check weight machine, check weighing machine, weight checker machine, weight sorting machine, weighing scale, and etc,.
The high-precision multi-line checkweigher is suitable for checking the weight of various products. Any weight exceeding or less will be rejected, and qualified bags will be transferred to the next device. Small bag check weigher is made of 304 stainless steel and uses high-quality electronic components, ensuring good quality at a low price. Due to the many setting options on a large touchscreen, it is easy to operate. For further information about our services, please contact us.

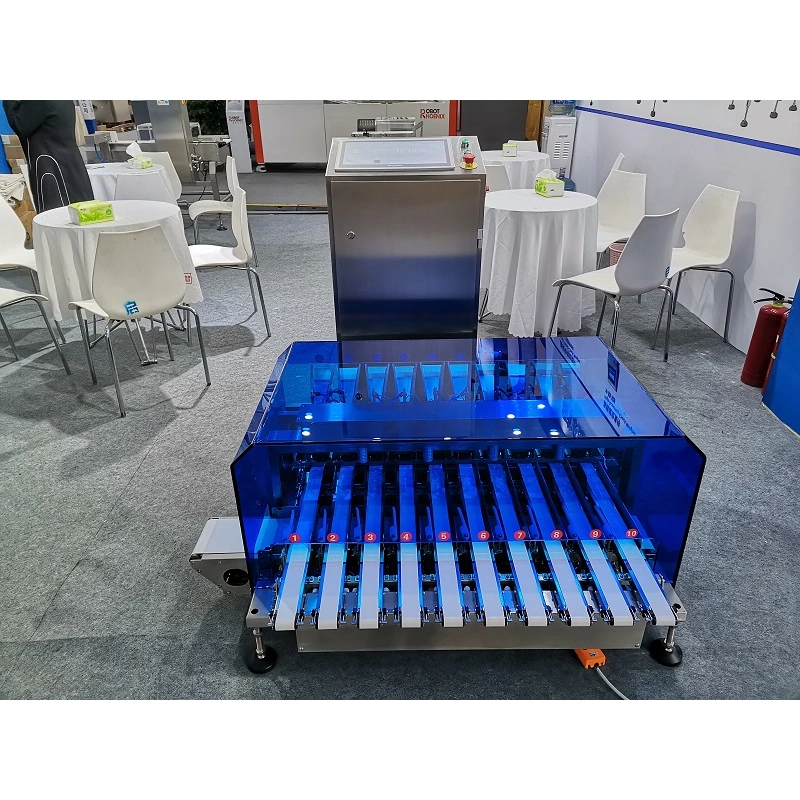

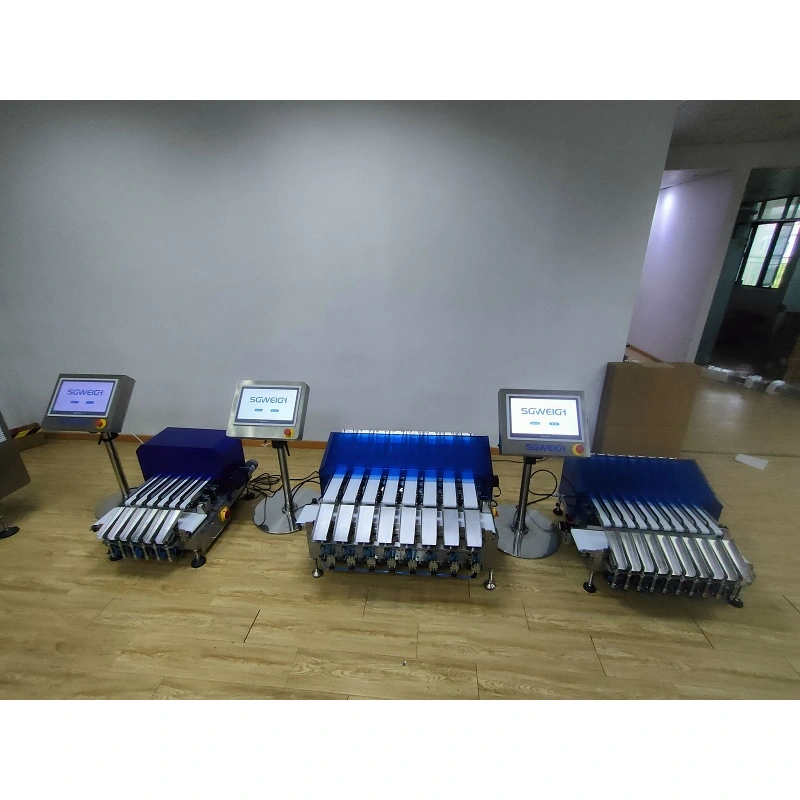

Box clamping conveyor checkweigher pictures
1. Strong practicality: 7/10 inch high color, high-resolution human-machine interface, easy to operate and user-friendly. Multiple product preset functions, one click to replace product parameters.
2. High stability: independently developed weighing recognition algorithm, automatic dynamic zero tracking and anti vibration algorithm, faster and more stable weighing data recognition. Equipped with power outage memory function, it prevents weighing data from being lost in case of sudden power outages, trips, and other situations in the factory.
3. Convenient docking: The counterweight data storage and export function can store multiple product weighing information, and export Excel table data from a USB flash drive; It can be integrated with EMS, WMS and other systems, with product information traceability, remote control of equipment startup and shutdown, and multiple data verification modes to ensure no data leakage.
4. Rigorous design: modular structure, simple and convenient disassembly and assembly, easy maintenance, and easy cleaning.
5. High cost-effectiveness: Different casing materials, sensors, and other standard components can be customized according to the actual needs of customers. Industry applications:
Weighing range 1-30g
Minimum scale 0.01g
Maximum sorting speed of 50 pieces/minute (one channel)
Conveying speed 20-100m/min
Operation mode: Touch based operation
The conveying direction can be arranged according to the actual situation on site
Removal method: lifting removal
Belt height above ground 450 ± 50mm (customizable according to customer requirements)
Machine structure stainless steel (SUS304)
Power supply 220V 50-60HZ
Power approximately 1000W
Windshield thick acrylic (to avoid airflow interference)
Working environment temperature: 0 ℃~40 ℃, humidity: 30%~95%
The properties and usage environment of the tested product vary, and the detection speed and accuracy also vary. Actual testing is the standard.
Because the specifications and configurations of the product need to be understood, different products have different specifications and prices for different configurations. So please contact us for the actual price. We will reply to you as soon as possible. Sincerely hope to cooperate with you, thank you!
The high-precision multi-line checkweigher is suitable for production lines in industries such as daily chemical, chemical, food and beverage, pharmaceutical, hardware, and daily necessities, and can achieve high-speed, accurate, and stable measurement.
Shanghai Shigan Industrial Co., Ltd. is a manufacturer specializing in weighing scales and metal testing machines. Our main products include: hdigital metal detector,conveyor belt metal detector,automatic checkweigher metal dtector, checkweigher, high-speed and high-precision checkweigher and a series of assembly line equipment. The products are widely used in food, medicine, Household goods, chemicals, toys, hardware and other industries. Our company's automatic packaging machines are popular in dozens of countries and regions around the world, including Europe, Asia, Africa, South America, and the Middle East, and have received strong support from customers from all over the world. We have experienced technical talents, high-quality work teams, and timely provide customers with comprehensive after-sales service.
The Delivery Date: After receiving the payment, the delivery date will be within 15-30 working days
Packaging: Protective film + wooden case
Logistics: Air, sea or express (DHL, etc.)
The Freight: The cost of transport depends on the destination, mode of transport and the weight of the goods
Pay: T/T, Western Union, paypal
1. Provide a manual.
2. Provide videos of installation, adjustment, setup, and maintenance.
3. Provide remote education and face-to-face online communication.
4. Can provide overseas services for engineers. The round-trip airfare, hotel, meals, and visa fees for our engineers shall be borne by the buyer.
5. The warranty period for the machine is 1 year, and the warranty period for spare parts is 2 years. During the warranty period, if there is no human damage, we will replace it with a new one for you. The warranty period will be calculated from the date of B/L.PET bottle making
