10 Lanes Small Ointment High Speed Multi-lane Checkweigher Strip Packaging Assembly Line Efficient Check Weigher Price
Check weigher as known as automatic checkweigher, check weighing machine, inline check weight machine, dynamic weight checker, conveyor belt check weigher ,weight checker and etc,.
The high speed multi-lane checkweigher can check the weight of packaged products online, whether they are overweight or overweight, to ensure that the weight of the product meets the standards. The strip packaging multi-lane checkweigher is an automatic device used in the automatic packaging production line to check the weight of products. During continuous operation, it checks whether the weight of products meets the standard weight set by us and automatically rejects unqualified products. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

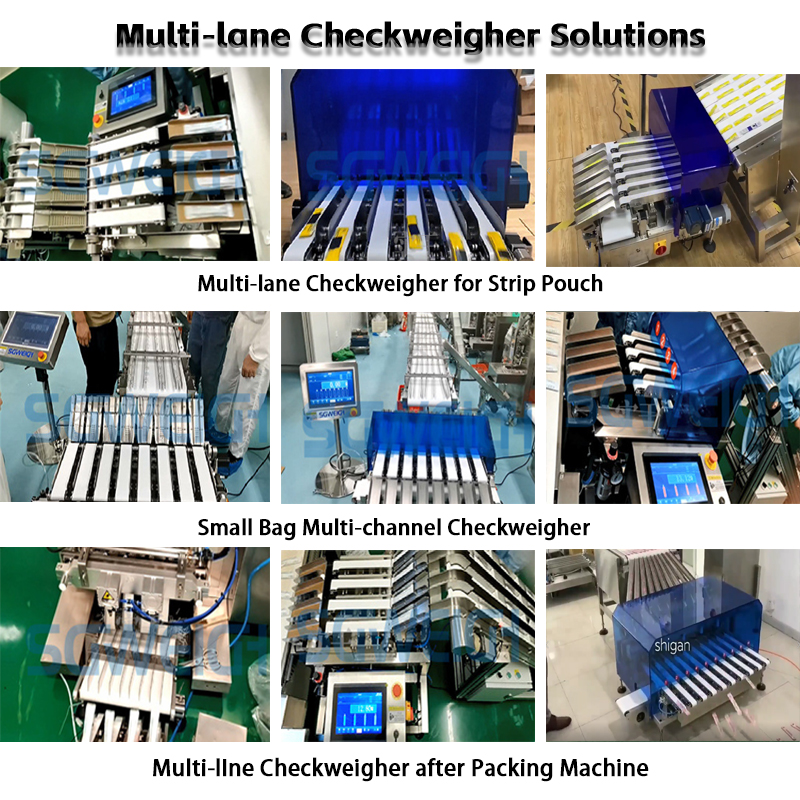

High speed multi-lane checkweigher pictures
Weighing range 1-30g
Minimum scale 0.01g
Maximum sorting speed of 50 pieces/minute (one channel)
Conveying speed 20-100m/min
Operation mode: Touch based operation
The conveying direction can be arranged according to the actual situation on site
Removal method: lifting removal
Belt height above ground 450 ± 50mm (customizable according to customer requirements)
Machine structure stainless steel (SUS304)
Power supply 220V 50-60HZ
Power approximately 1000W
Windshield thick acrylic (to avoid airflow interference)
Working environment temperature: 0 ℃~40 ℃, humidity: 30%~95%
The properties and usage environment of the tested product vary, and the detection speed and accuracy also vary. Actual testing is the standard.
In the application of assembly line high speed checkweighers, Shanghai Shigan provides the following customized services for users in various industries:
1) Assist users in selecting a suitable high speed checkweigher model for the current production line situation;
2) Customizing personalized weight detection or quality abnormality solutions for users;
3) Design specification for users of economical and practical online check weigher scheme;
4) Customize the Frontend and backend connection auxiliary mechanism of the assembly line weight detection equipment for users;
5) Provide consultation and training services for users on assembly line high speed checkweighers.
1. Adopting patented technology, the microcontroller system is independently developed, with a unique filtering algorithm that has ultra-high accuracy and reliability. Ensure system stability.
2. The curve/bar chart displays the statistical distribution of sorting (re inspection) results, and the window displays the values of the last 10 re inspection results.
3. The mechanical structure is simple, and the buckle type conveyor belt is convenient for disassembly, cleaning, and maintenance. Complies with GMP and HACCP specifications.
4. Up to 200 product presets can store hundreds of thousands of data records to meet customers' complex needs.
5. Data statistics function. The total number of products passed over a period of time/the total number of products that are too light/the total number of products that are overweight.
6. The parameters of different products can be set to store 100 types of detection data, making it convenient for users to switch and call.
7. Support customization of multiple languages, large size color LCD touch screen interface, simple operation and intuitive display.
The high speed multi-lane checkweigher is widely used in bag packaged products such as health products, bread, precious metals, instant noodles, chocolate, packaged foods, daily necessities, traditional Chinese medicine, chewing gum, etc., for automatic weighing on the assembly line, and for picking out products that do not meet the weight requirements. The high speed multi-lane checkweigher has the characteristics of high precision and fast weighing speed, greatly saving the cost of product quality control for enterprises.
Shanghai Shigan Industrial Co,.Ltd is located in Shanghai, China, with a young team specializing in the development and production of checkweigher, metal detector for pharmaceuticals, food, pesticides, daily chemicals, and chemical industries. Introduce domestic and foreign technologies and continuously improve products. Our products are distributed throughout the country and exported to various parts of the world such as the Americas, Europe, Africa, and the Middle East. We provide quality tracking services, free maintenance during the warranty period, and lifelong maintenance. Our main products: digital metal detector,conveyor belt metal detector,automatic checkweigher metal dtector, checkweigher, high-speed and high-precision checkweigher, and etc,.
Machine packaging:
Export standard non fumigated wooden boxes that meet customs clearance requirements
Delivery cycle:
10-15 days after receiving payment
Price terms:
FOB terms, CIF/CFR terms (sea/air), DDU/DDP terms (sea or air)
Transferable payment methods: T/T, LC, D/P, D/A., etc.
1. We will deliver the machine and provide a load list on time to ensure that you can quickly obtain the machine
2. We often ask for feedback and provide assistance to customers whose machines have been used in their factories for a period of time.
3 We offer a one-year warranty
4. Trained and experienced employees will answer all your inquiries in English and Chinese
5.12 month warranty and lifetime technical support.
6. Your business relationship with us will be kept confidential to any third party.
7. Provide good after-sales service. If you have any questions, please contact us.
