Seafood Multi-stage Weight Sorting Machine IP65 Waterproof Checkweigher
Product Introduction
Weight sorting machine as known as checkweigher, check weigher, check weight machine, check weighing machine, weight sorter, weight checker, and etc,.
Multi-stage sorting checkweigher is a weighing device that uses multiple sensors for joint measurement, which can accurately classify the weight of items. Seafood multi-stage checkweigher adopts advanced control algorithms and data processing technology to ensure high speed and accuracy of weighing results. Widely used in production lines, it helps to improve product quality, reduce labor costs, and improve production efficiency. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

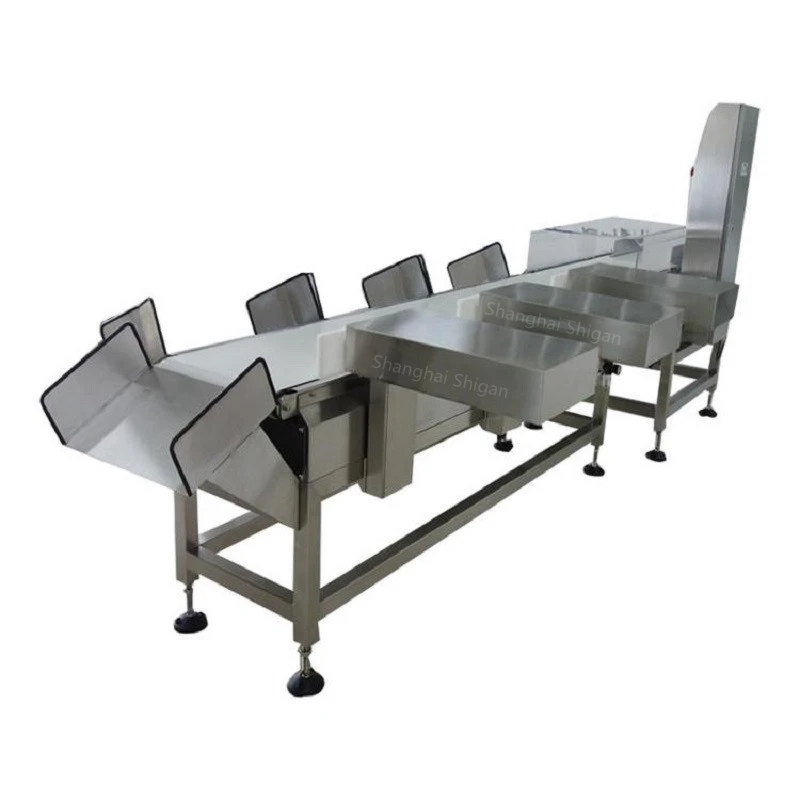

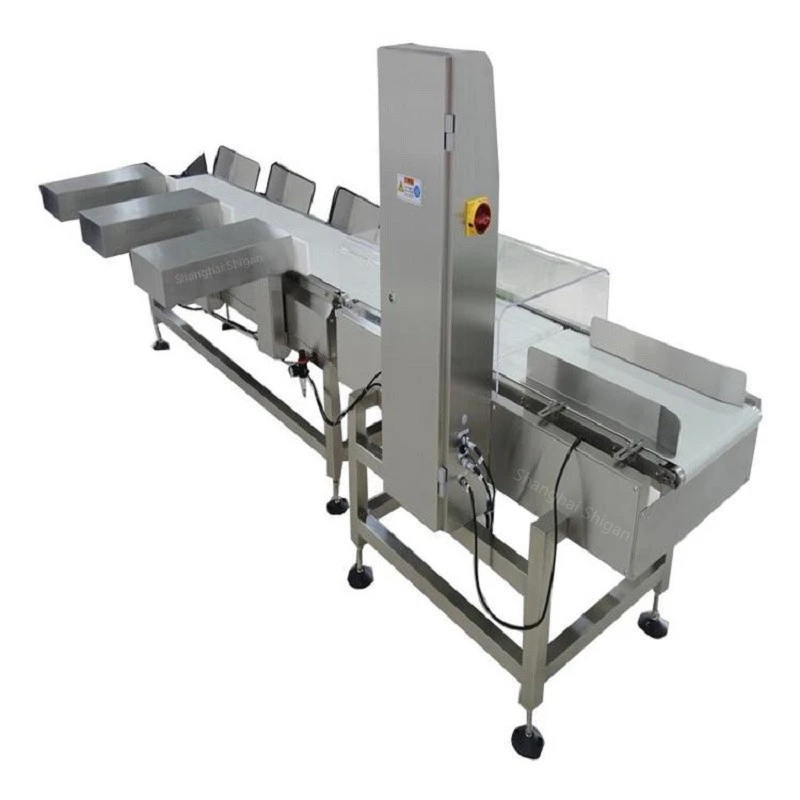

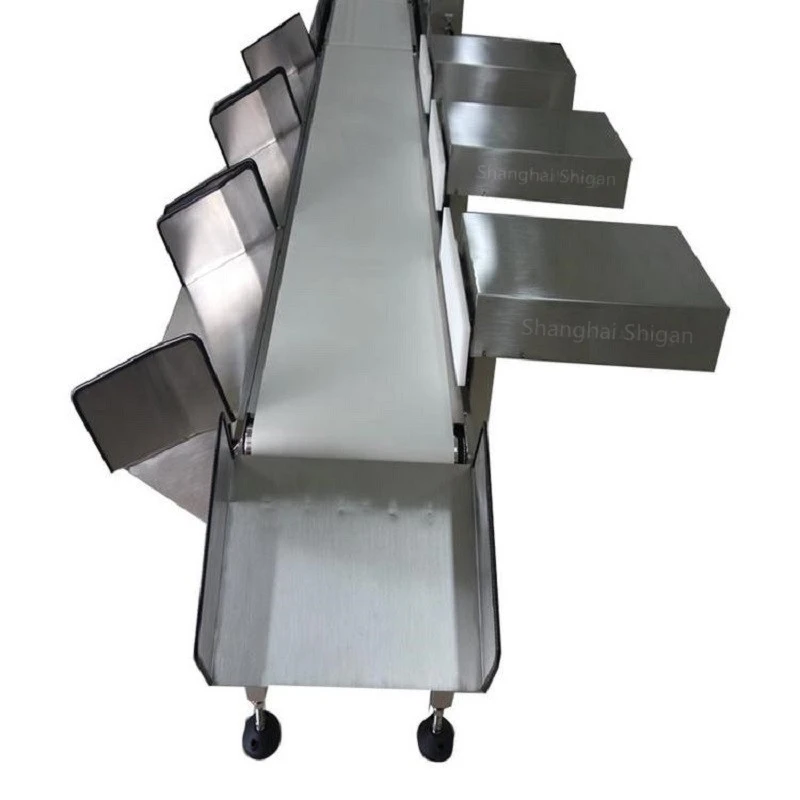

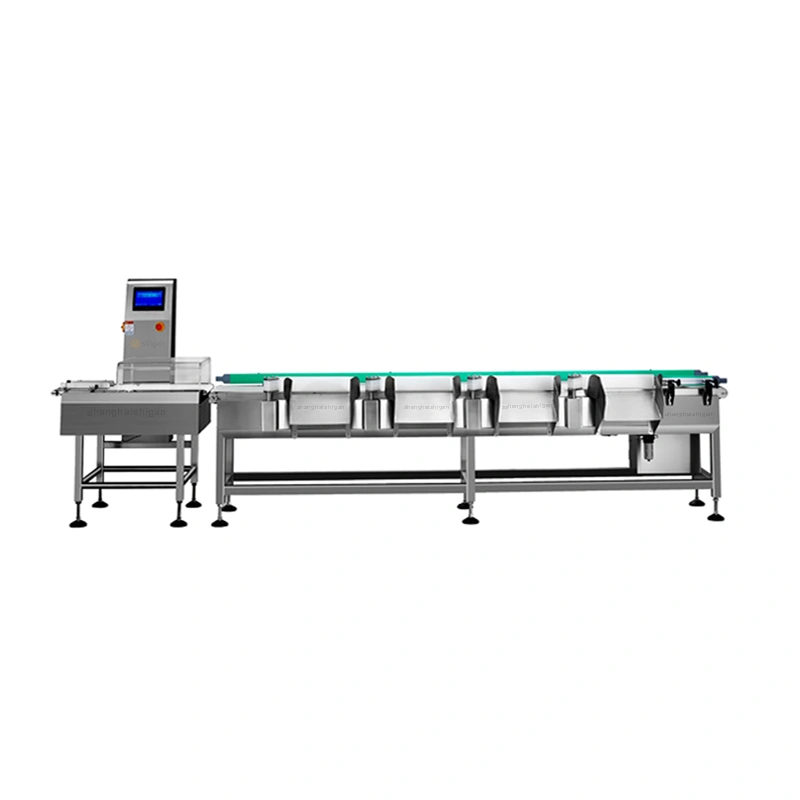

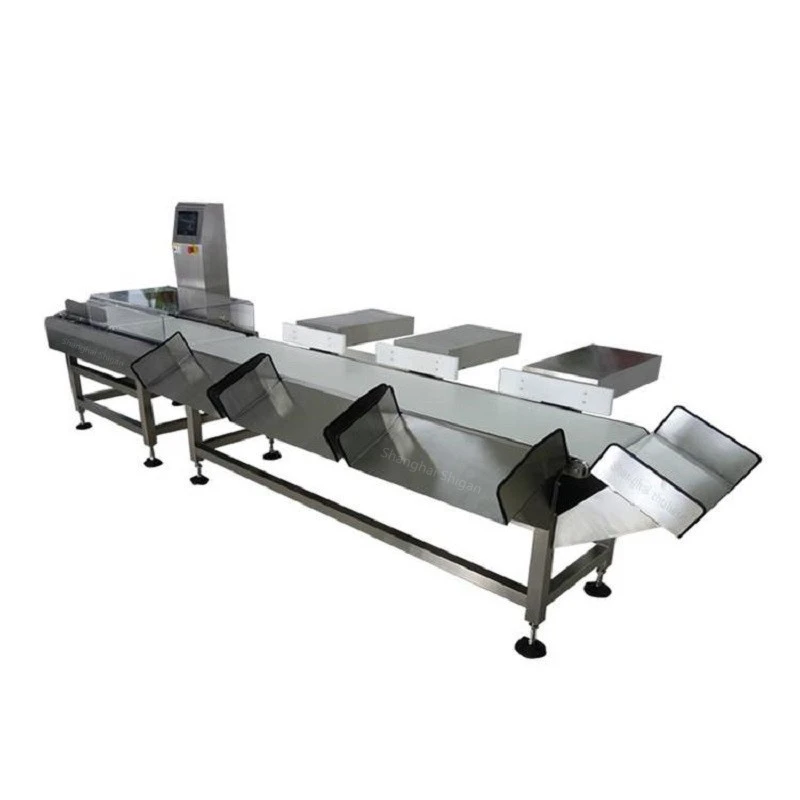

Multi-stage sorting checkweigher photos
Technical Parameter
Type SG-D300
Weighing Range 5-3000g
Limited of product L: 350 W:300 H: 3-200mm
Accuracy ±0.3g-0.5g Depends on product
Division Scale 0.1g
Belt Speed 0- 50 m/min
Max Speed 60 pcs/min
Belt Width 300mm
Machine Weight 60kg+150kg
Power Supply AC 220V 50HZ
Power 1000W
Main Material SU304 stainless steel
Customized Process
1st step: Customer has showed his special requirements.
2nd step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3rd step: Making the conceptive CAD drawing based on communication and understanding.
4th step: Making the detail and 3D drawing agter fixed the design and other details.
5th step: Offer the quotation after confirm the design,material and surface treament.
6th step: Making the sample for approval.
7th step: Testing installation after demo mock up.
8th step: Big production delivery and service after sales.
Product Details
Main Features
1. Easy to integrate: adjustable height, modular design
2. Durable and sturdy structure: stainless steel 304
3. Easy to use: The touch screen operating system is easy to use and comes with user password protection
4. Easy to clean: The detachable belt is easy to disassemble for cleaning and setting.
5. Variable speed: The speed can be configured according to the application
6. High speed and accuracy: Equipped with advanced sensors and weighing sensors, equipped with ultra fast processors, it has excellent accuracy and speed
7. Zero tracking: manual and automatic calibration to improve accuracy
8. Report and Data Export: Built in - Real time report, can be exported as an Excel file, and can store production data for 1 year in a USB drive
9. Connectivity: Standard port for data export and connection to PC
10. Self learning: No calibration required, the system will find the best settings for the product. Can configure up to 2000 product settings
11. Different detection modes: default mode, static mode, and power-saving mode
12. Fault report: The system can detect and report the faulty parts of the system, making it easier to diagnose problems
13. Output ports: RS-485 and RS-232, capable of connecting printers and label machines
Application Scope
Multi-stage sorting checkweighers are widely used in industries such as pharmaceuticals, food, beverages, electronics, health products, daily chemicals, light industry, and agricultural and sideline products, which can improve production efficiency, reduce labor costs, and ensure product quality.
Company Profile
Shanghai Shigan Industrial Co., Ltd. is a professional company that designs, produces, and sells automatic checkweigher, digital metal detector machines, which are widely used in pharmaceuticals, food, chemicals, daily necessities, hardware, and etc. The company is located in Shanghai, China, with a strong research and development team, complete production technology, and strict mechanical inspection standard system. We adhere to the spirit of pioneering and enterprising, focusing on high-quality machine innovation and production. According to customer requirements, we warmly welcome you to visit our long-term business cooperation.
Our main products
Metal Detector for Pharmaceutical
Metal Detector for Daily Necessities
Metal Detector for Other Industries
Checkweigher and Metal Detector Combo
Multi-stage Sorting Checkweigher
Our Customers
Our Exhibition
Packing & Shipping
1. Packaging materials: International standard export packaging boxes are usually used, which have good wear resistance, shock resistance, and waterproof performance. The material of the box can be hard wooden boxes, plastic boxes, or export specific cardboard boxes.
2. Protective measures: In order to ensure that the weigher is not damaged during transportation, it is necessary to add sufficient filling materials, such as foam, shockproof cotton, etc., into the packaging box.
3. Identification and Marking
After-sale Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
