High-Sensitivity Food Bag Metal Detector Conveyor Metal Detector with Rejector

High-Sensitivity Food Bag Metal Detector Conveyor Metal Detector with Rejector

High-sensitivity food bag metal detector provides continuous, non-destructive inspection without compromising the appearance or integrity of the finished packaging; it is suitable for a wide range of bagged products and production environments, delivering sensitive and stable detection performance.

tag:

Description

High-Sensitivity Food Bag Metal Detector Conveyor Metal Detector with Rejector

High-sensitivity food bag metal detector provides continuous, non-destructive inspection without compromising the appearance or integrity of the finished packaging; it is suitable for a wide range of bagged products and production environments, delivering sensitive and stable detection performance. The food conveyor metal detector with rejector can be integrated into automated conveyor lines to inspect individual packages at production speeds. Upon detecting metal contaminants, an automatic rejection mechanism removes the affected package from the production flow, preventing potentially contaminated products from proceeding to the next stage of processing. You are welcome to contact us at any time for quotation.

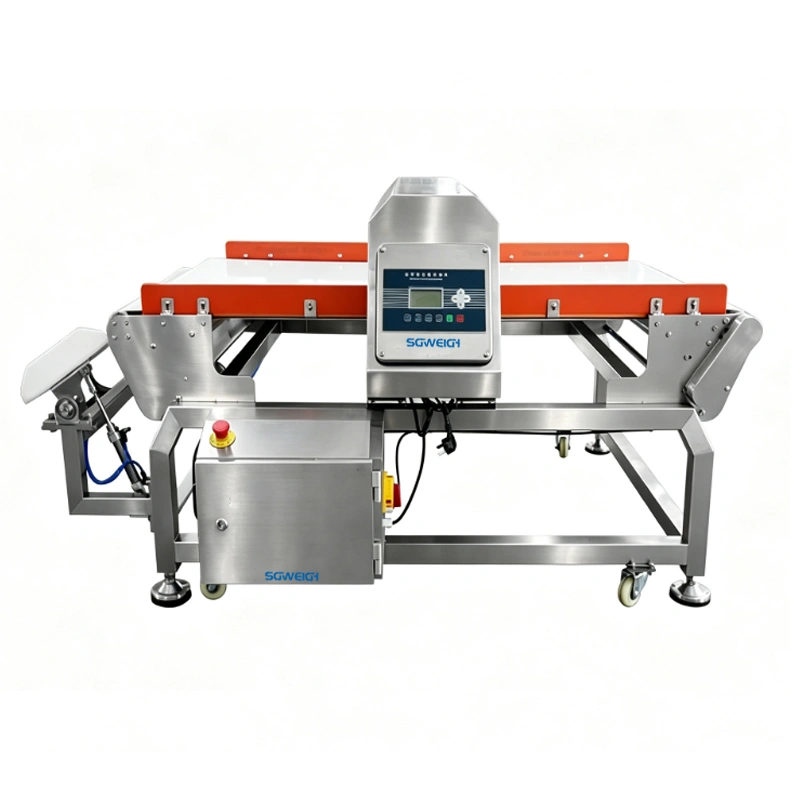

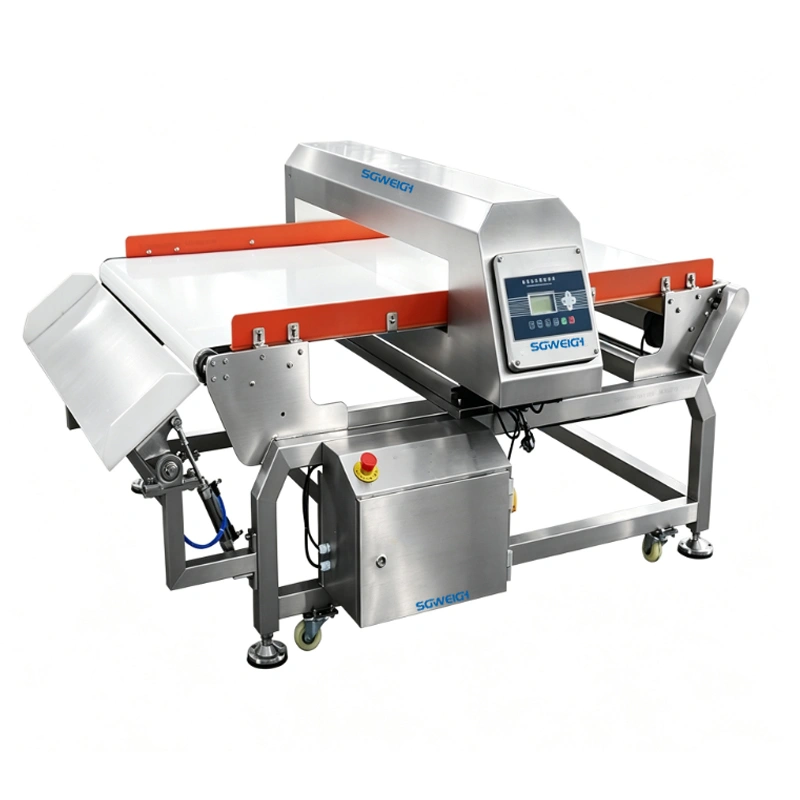

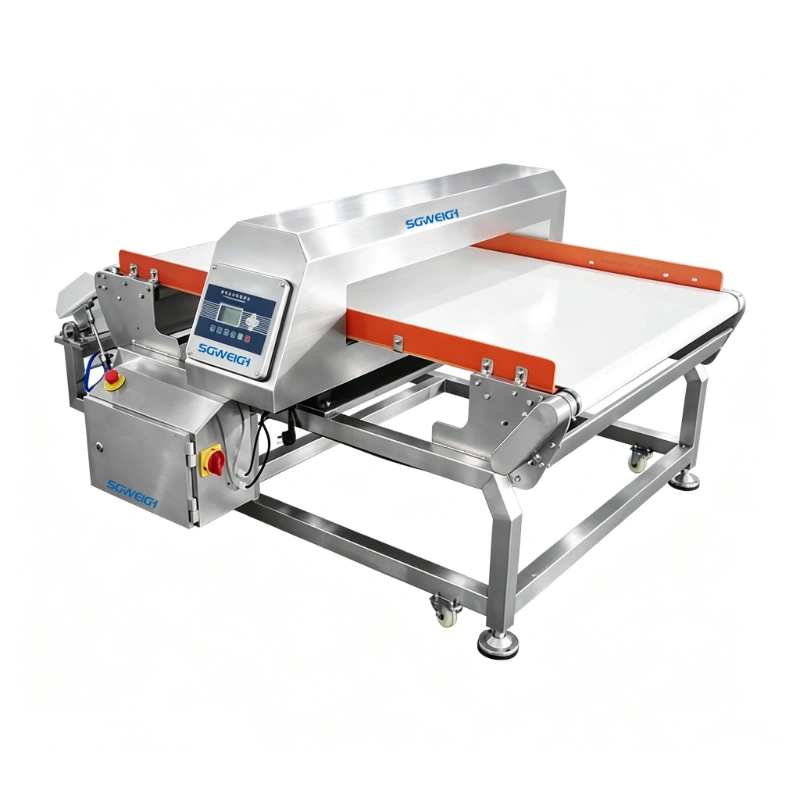

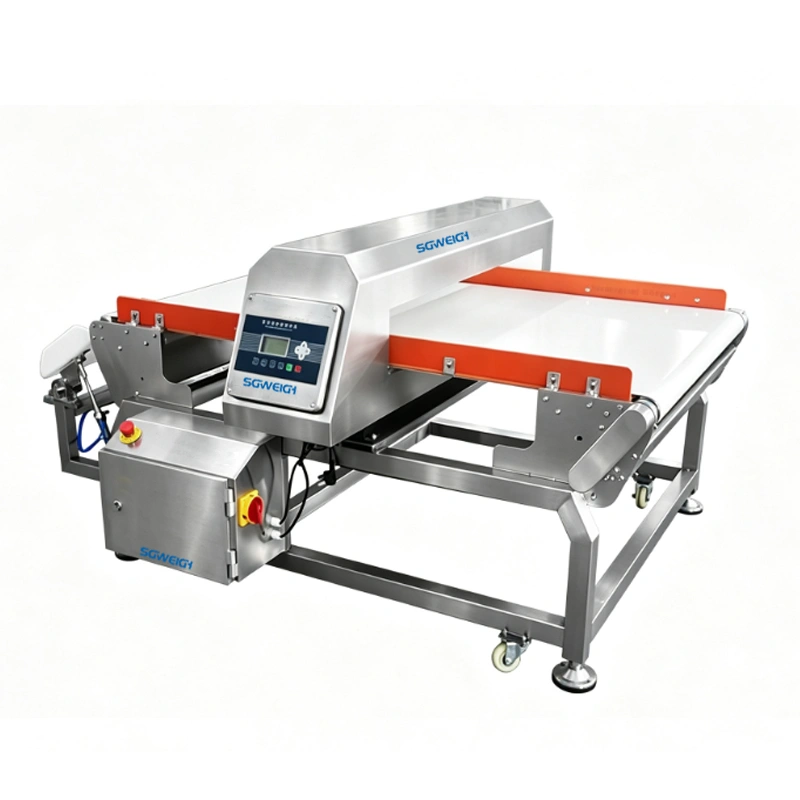

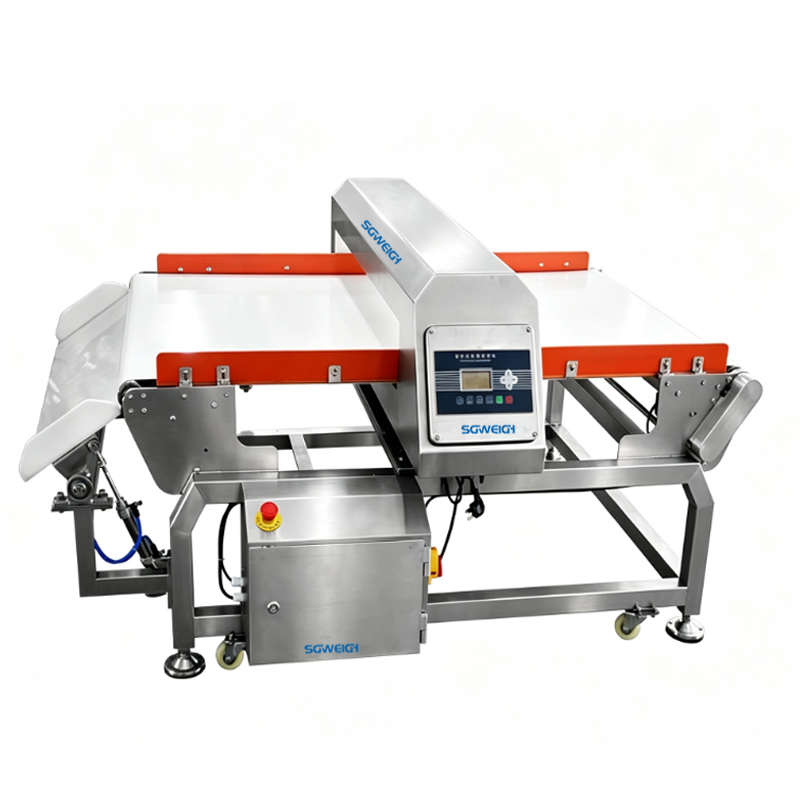

High-sensitivity food bag metal detector photos

High-Sensitivity Food Bag Metal Detector Food Conveyor Metal Detector with Rejector

1. Constructed entirely from 304 stainless steel, ensuring excellent water resistance;

2. Utilizes phase adjustment technology;

3. Employs high-speed digital signal processing components and intelligent algorithms for enhanced stability;

4. Capable of detecting various metals, including iron, stainless steel, copper, aluminum, and lead;

5. Features an LCD display for simple, convenient operation and easy human-machine interaction;

6. Includes an intelligent self-learning function to adapt to the inspection of diverse products;

7. Supports preset configurations and ID assignments for up to 100 different products;

8. Conveyor belt design prevents belt misalignment;

9. Load capacity: ≤30 kg.

Detection height: 80mm (customizable)

Detection width: 400mm (customizable)

Belt speed: Approx. 26m/min (customizable)

Detection sensitivity: Fe (diameter) ≥ 0.8mm, SUS (diameter) ≥ 1.5mm

Power: 90W

Voltage: AC 220V/50–60Hz (110V optional)

Operating temperature: -20°C to 60°C

Dimensions: 1330 x 980 x 1030 (mm)

Weight: 280kg

Detectable metal size: 0.6mm

Detection range: All metals

Alarm mode: Audible and visual alarm; automatic stop or rejection (optional)

Power supply: 220V


High-Sensitivity Food Bag Metal Detector Conveyor Metal Detector with Rejector

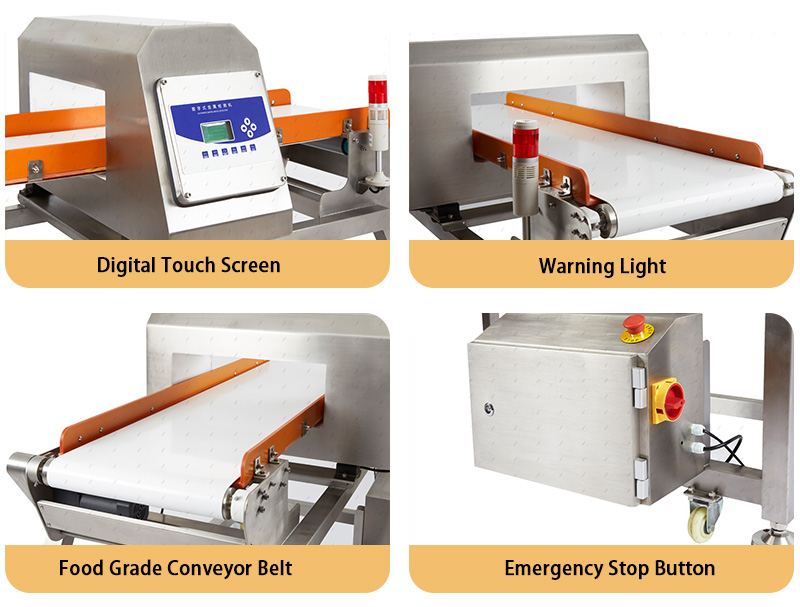

metal detector details.jpg

High-sensitivity food bag metal detector is suitable for a variety of bagged food products, including snacks, frozen foods, cereals, powdered products, dry goods, confectionery, and other packaged foods.

应用行业 (3).jpg

Strengthen your food safety process with a dependable metal detector for food bags. Contact SGWEIGH today for a customized inspection solution matched to your food product, package size, production speed, and conveyor requirements.

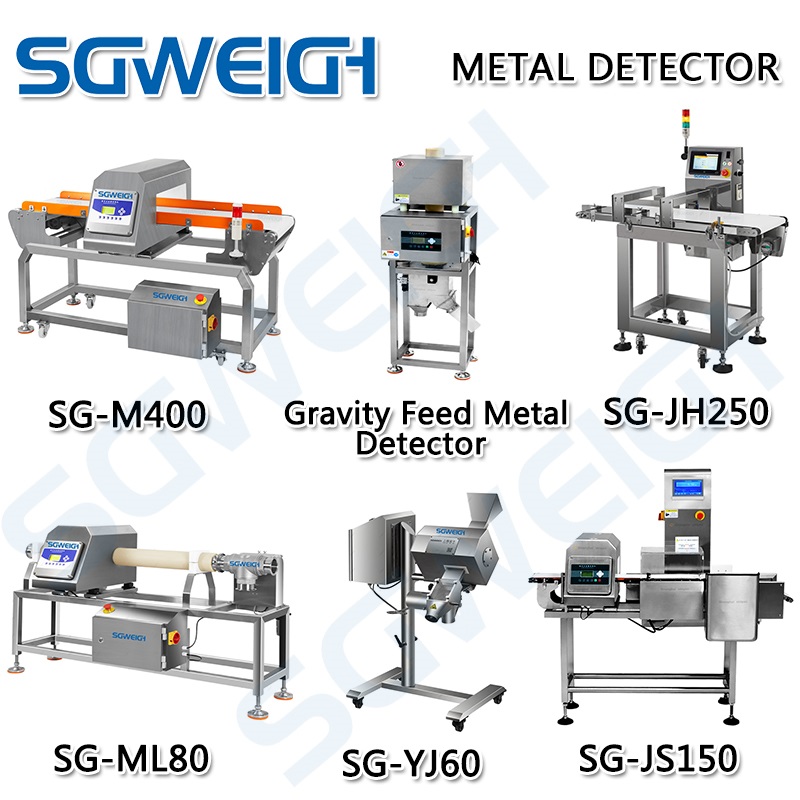

交易流程.jpg metal detector machine.jpg

High-Sensitivity Food Bag Metal Detector Conveyor Metal Detector with Rejector

metal detector company.jpg 全球搜证书展示3.jpg

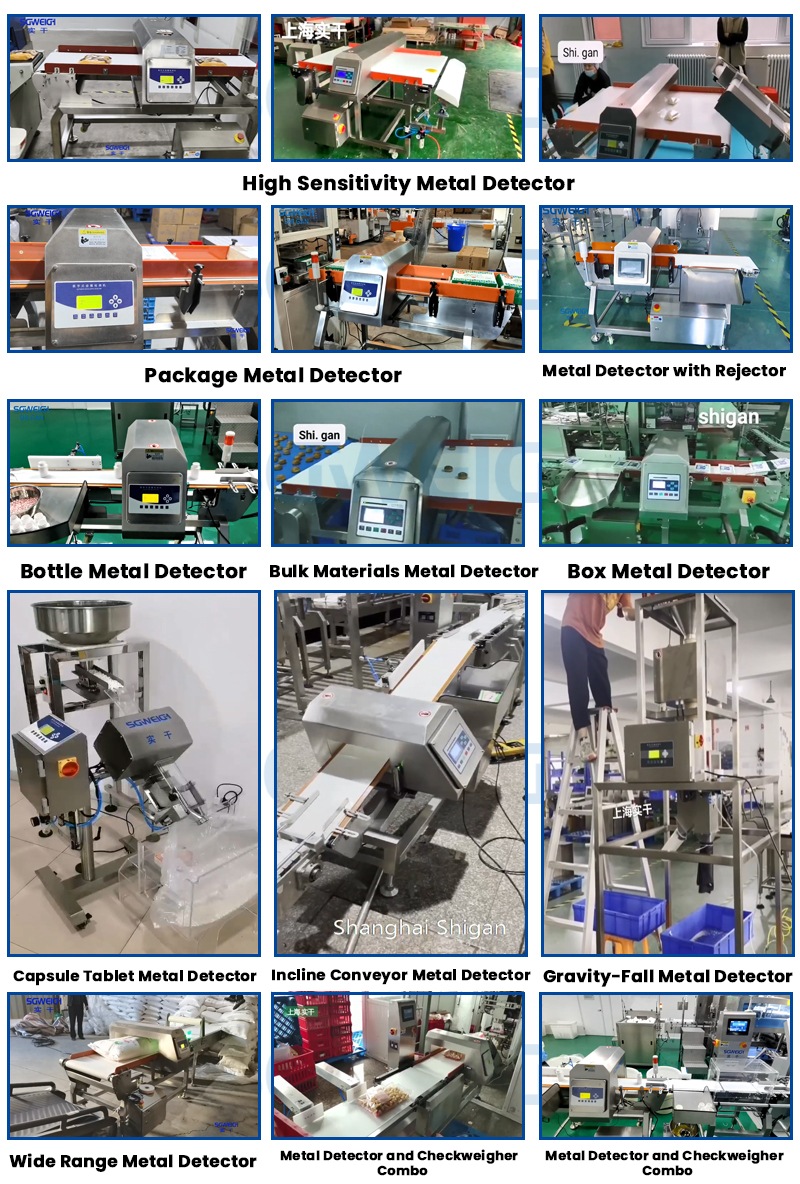

Customers (3).jpg Metal Detector Application.jpg

Packaging:

1. Outer Packaging: Standard export wooden crates

2. Inner Packaging: Products are carefully wrapped with stretch film, and the corners are secured with hardwood boards and strong bandages.

3. Inspection Team: Professional personnel will inspect and sort your shipment.


1. Training Services:

We will train your engineer to install our weigher. You can send your engineer to our factory or we'll dispatch one to your company. We'll explain how to install the weigher and fix any problems.

2. Troubleshooting Service:

If you can't fix a problem in your case, we'll send our engineer there if you need support. Of course, you'll need to pay for round-trip flight tickets and accommodation.

3. Spare Parts Repayment:

For spare parts support: If a spare part breaks during the guarantee period, we'll send it free of charge and pay the express delivery fee. If the machine is out of guarantee, we'll send it back at cost.
