High Sensitivity Food Metal Detector for Carton Packaging Dynamic Metal Detector
This high sensitivity food metal detector for carton combines advanced detection technology with a reliable conveyor-based inspection method to identify ferrous, non-ferrous, and stainless steel contaminants. Intelligent algorithms effectively minimize the "product effect," ensuring superior contaminant detection performance across a wide range of packaging materials. Designed for seamless integration into automated production environments, this carton packaging dynamic metal detector features a compact design and flexible configuration options that simplify installation while supporting continuous, high-volume production. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us for a quote.

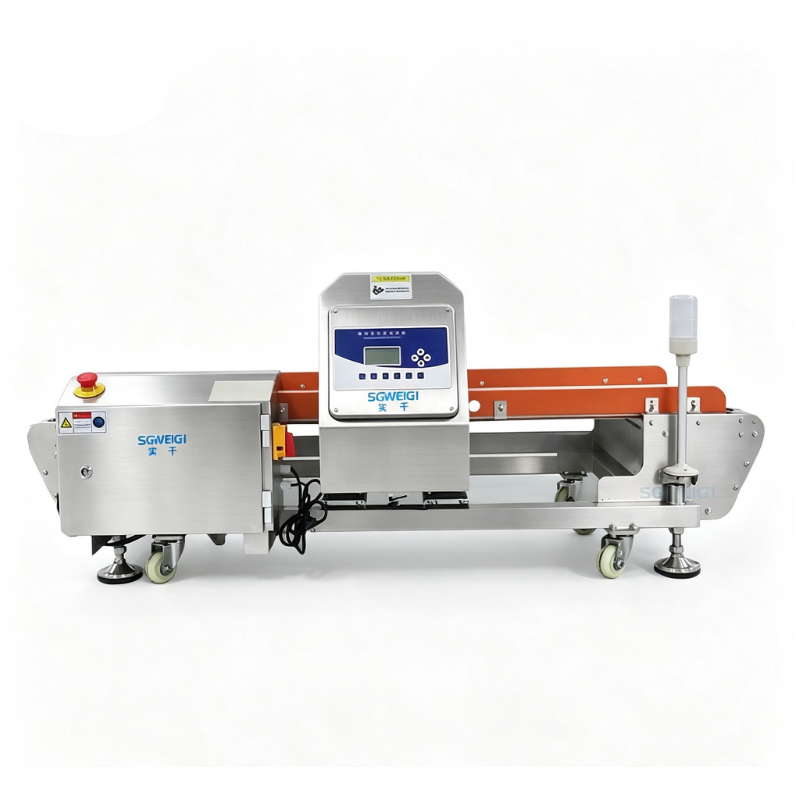

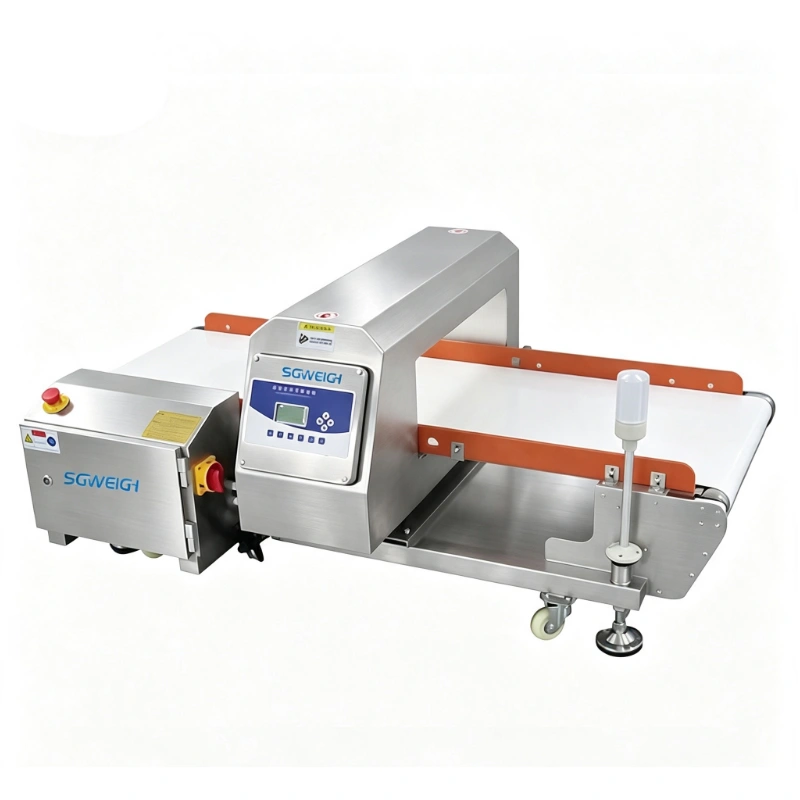

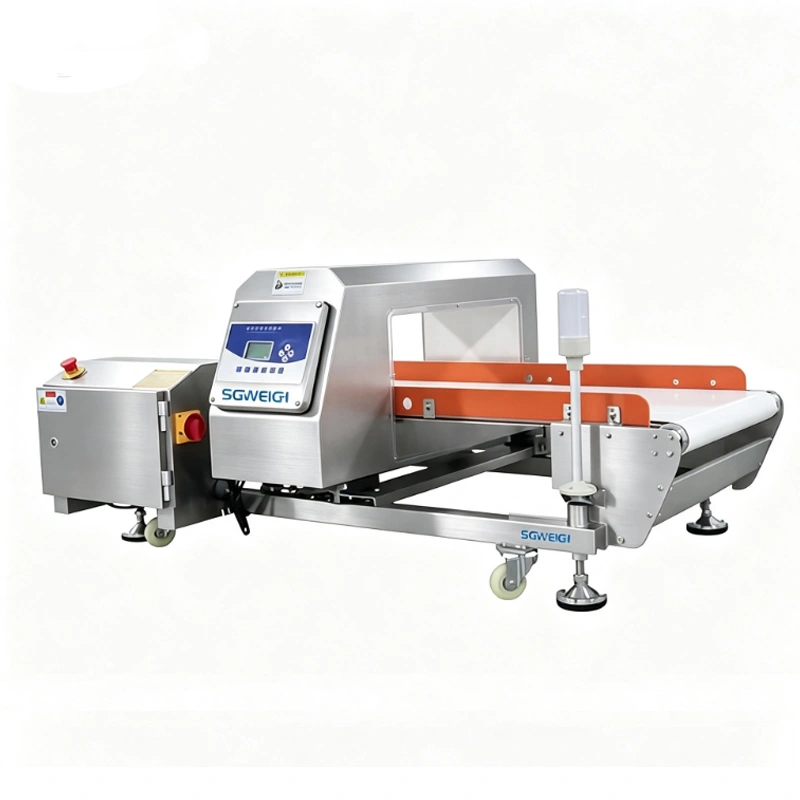

High sensitivity food metal detector for carton photos
Detecting width 200/300/400 mm(customizable)
Detecting height 100 mm / 120 mm / 150 mm / 200 mm / 250 mm / 300 mm (customizable)
Detection sensitivity Iron Fe acuity Φ 0.8 mm; Nonferrous Non - Fe acuity 1.2 mm; Stainless steel 304 SUS acuity Φ 1.5 mm
Sensitivity control Automatic configuration
Display screen 4.3 -inch LCD
Shelf life prediction 99 species of
Load capacity 0-5 kg
The speed of conveyor 350 mm (customizable)
Speed of conveyor belt 25 meters per minute
Height of conveyor belt above ground 700 mm (can be customized)
The length of conveyor belt 1200 mm
Machine material Stainless steel 304

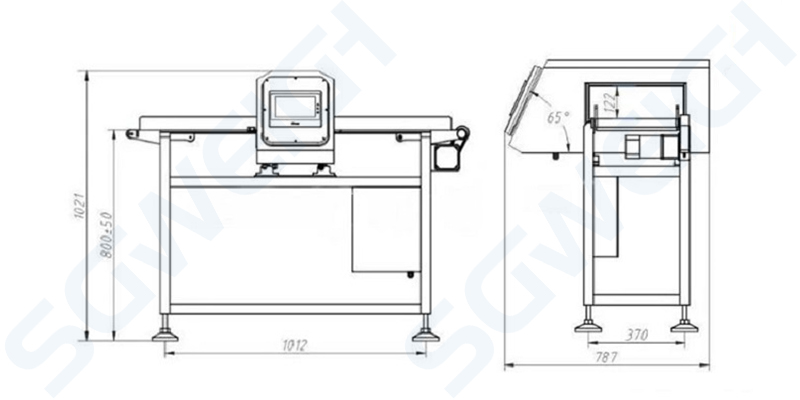

Boundary dimension 1220 x 880 x 900 mm (specific need to be measured according to the customized size)
Weight 130 kg
Power supply 110 V/220 V/50-60 Hz(customizable)
Service environment 0-40ºC relative humidity 30~85%, but no condensation
1. Detects ferrous, non-ferrous, and stainless-steel contaminants
2. High-sensitivity inspection for boxed food products

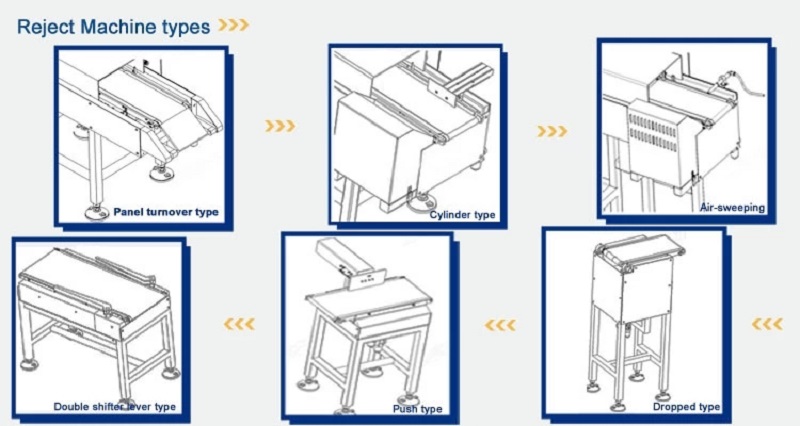

3. Automatic rejection system for contaminated packages
4. Digital control system with intuitive touchscreen operation
5. Multiple product memory settings for quick changeovers
6. Real-time monitoring and production data recording
7. Hygienic stainless-steel construction
8. Stable performance in demanding production environments
9. Easy integration into existing food processing lines
10. Supports HACCP, BRC, GMP, and FDA compliance requirements

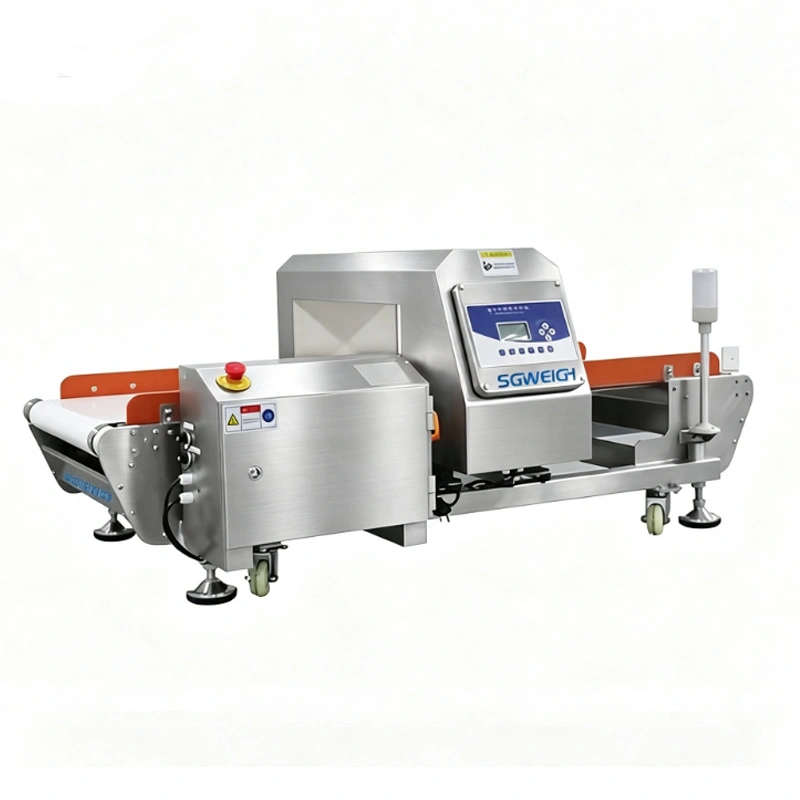

High Sensitivity Food Metal Detector for Carton Packaging Dynamic Metal Detector

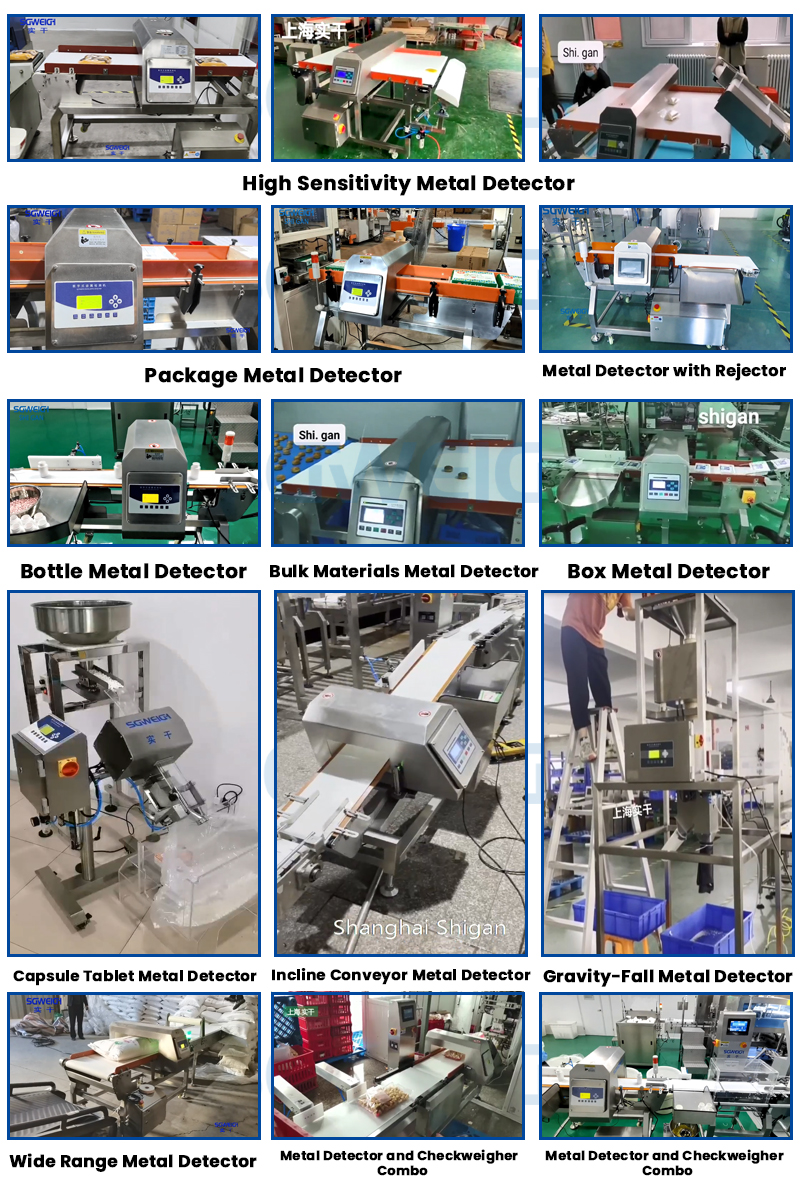

The high sensitivity food metal detector for carton is suitable for inspecting boxed products—such as snack boxes, frozen meal trays, confectionery packaging, cereal boxes, baked goods, and ready-to-eat meals—across industries including food, pharmaceuticals, plastics, chemicals, textiles, apparel, toys, papermaking, and hygiene products.

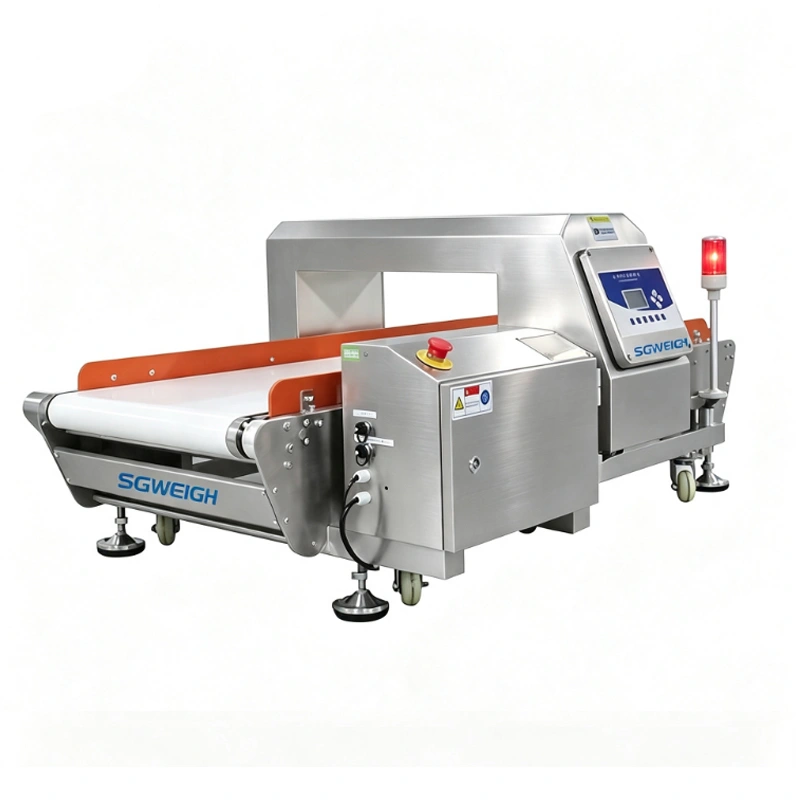

High Sensitivity Food Metal Detector for Carton Packaging Dynamic Metal Detector
1. The inner packaging is plastic film, and the outer packaging is a wooden or plywood box.
2. The packaging is bare plastic film with only a plastic pallet.
3. We can provide fumigated packaging and certificates.
4. Shipping, training, express delivery, or according to customer requirements.
1. Is your company a trading company or a factory?
Factory + Trading (integrated), 17 years of experience focusing on metal detectors and exporting. We also accept OEM.
2. How to choose the most suitable product?
Just tell us what kind of test you need and the required specifications, and our professional team will give you the best advice.
3. What is the delivery time?
Most of the time, our factory has stock. If not in stock, the delivery time is usually 15-20 working days after receiving the deposit. If you have urgent needs, we can consider making special arrangements for you.
4. Do you accept customization services?
Yes, of course. We can provide not only standard machines but also customized machines according to your requirements. Don't hesitate to tell us your requirements, and we will do our best to meet your needs.
5. Can we visit your factory before ordering?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory.
6. What is your warranty period?
Our warranty period is 1 year, with lifetime maintenance.
