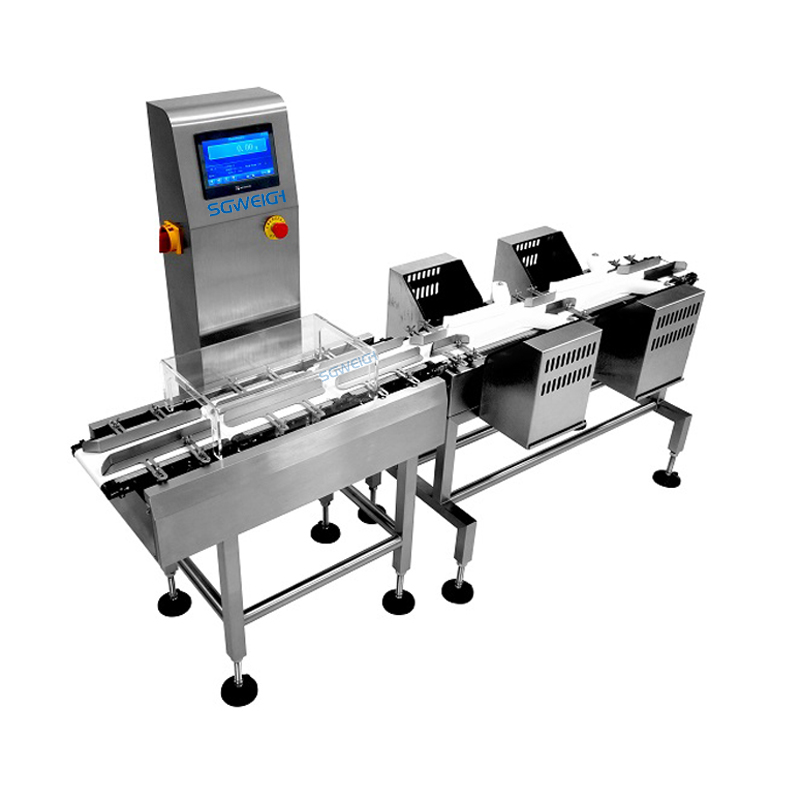

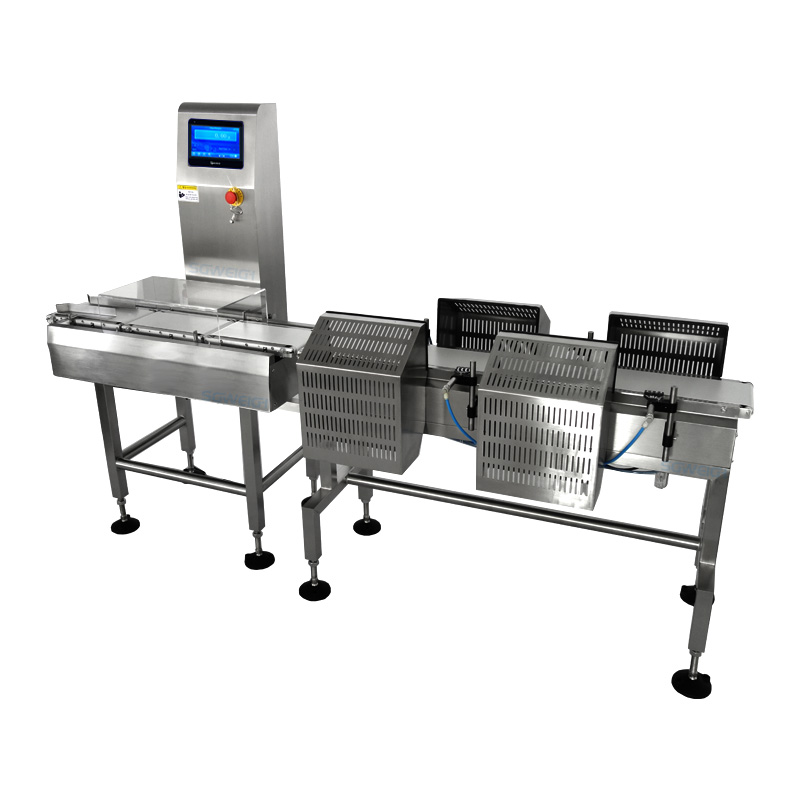

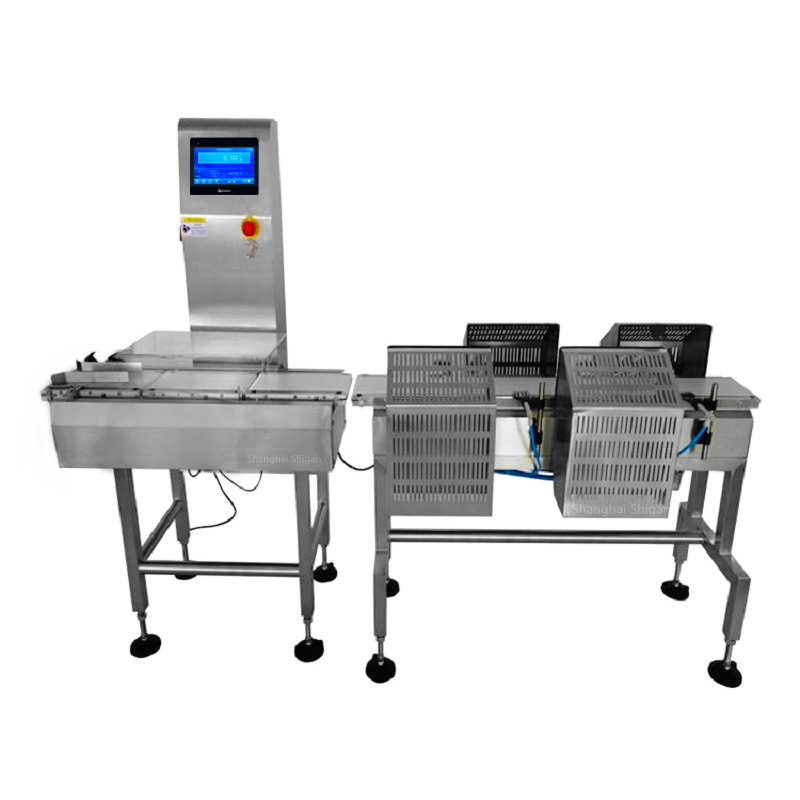

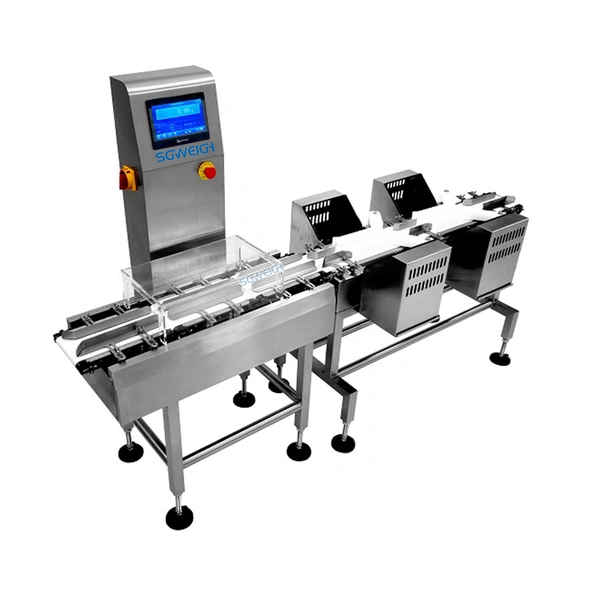

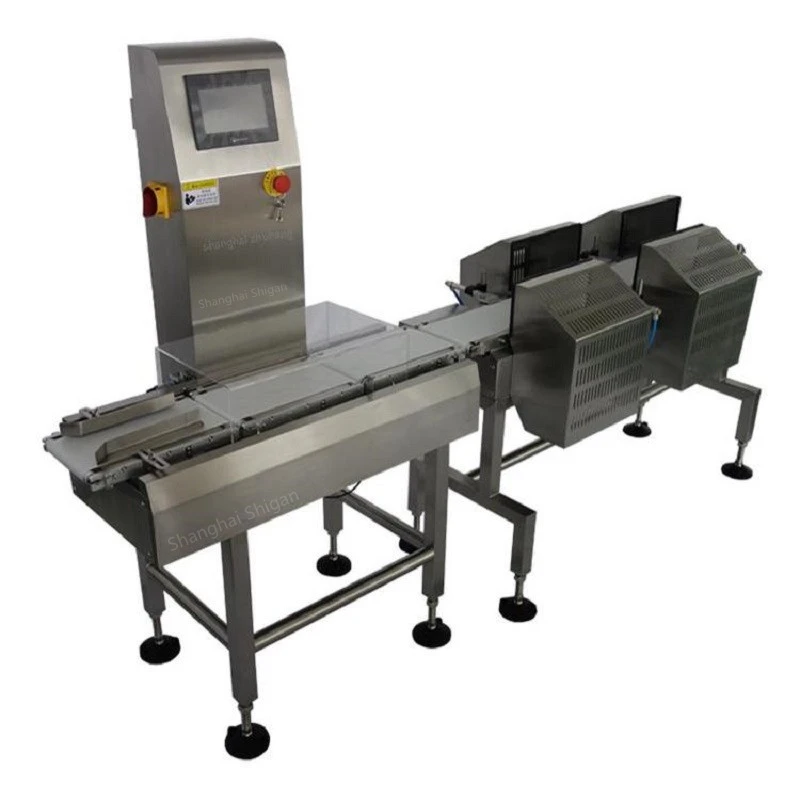

High Speed Multi-sorting Checkweigher For Food Processing Industry Weight Sorter
Multi-level weight sorting machine as known as multi-level checkweigher, weight grading machine, multi-stage checkweigher, check weigher, weight sorter, weight checker, and etc,.
The automated equipment of the multi-sorting checkweigher for food packaging detects products of different weights in continuous work and automatically classifies and collects them according to the set weight level. One of the main features of this high speed multi-stage sorting checkweigher is that it is based on modular design and can safely classify products up to 16 weight zones. Simple accessories can also be plug-and-play, and the equipment can be disassembled and installed in a very short time. You are welcome to contact us at any time for further information.

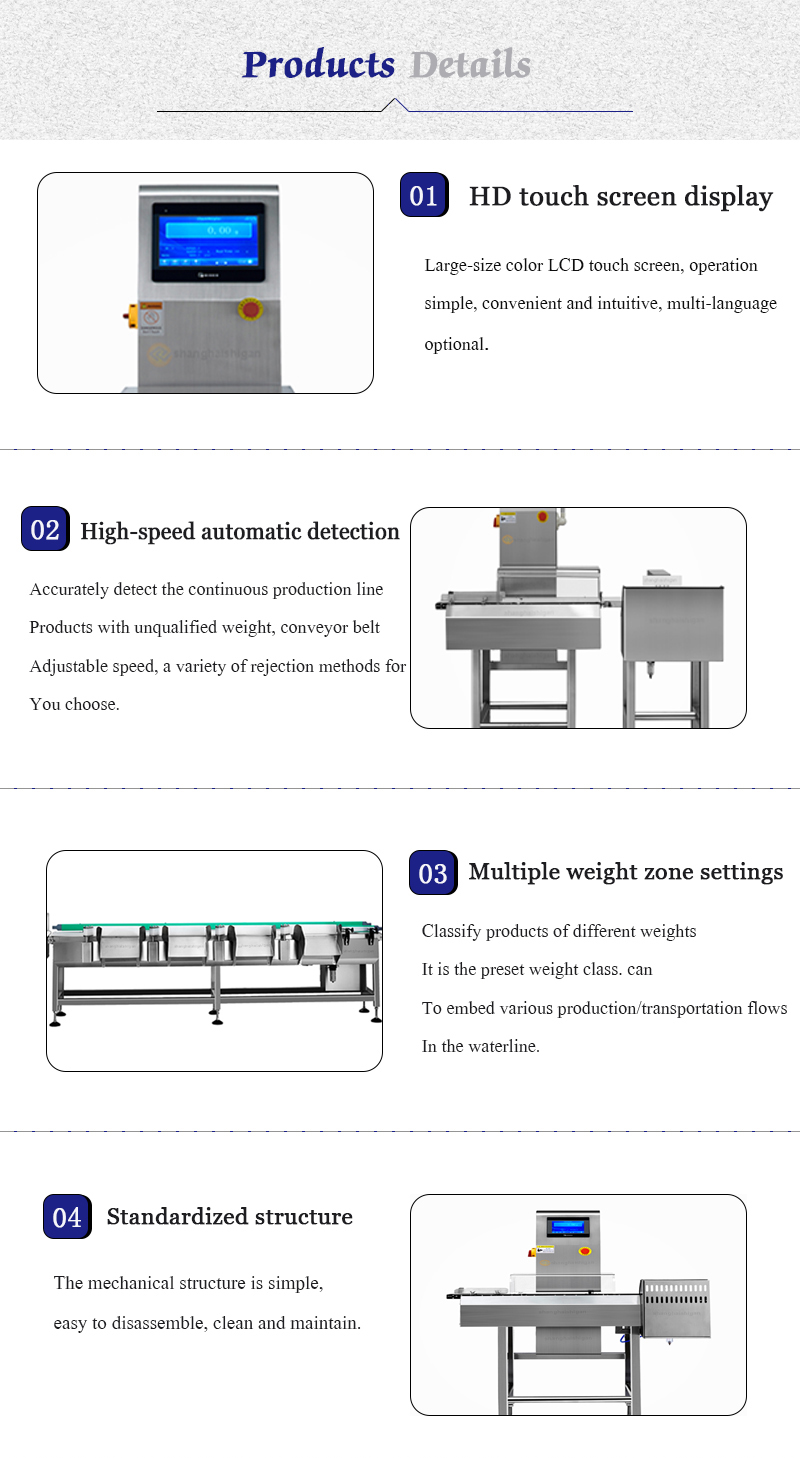

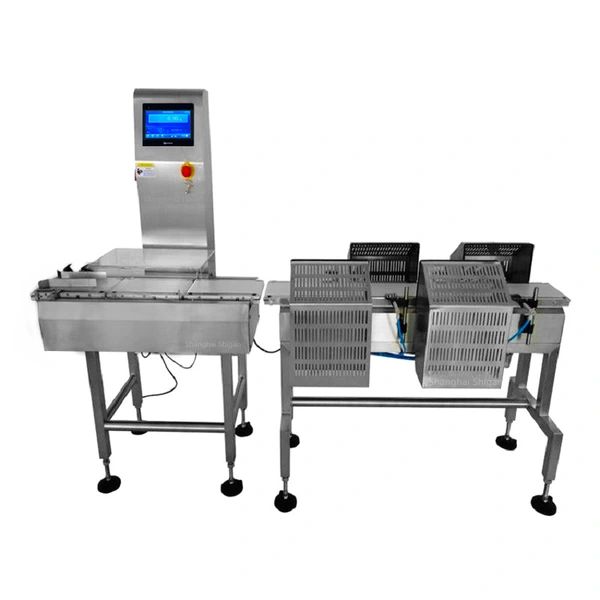

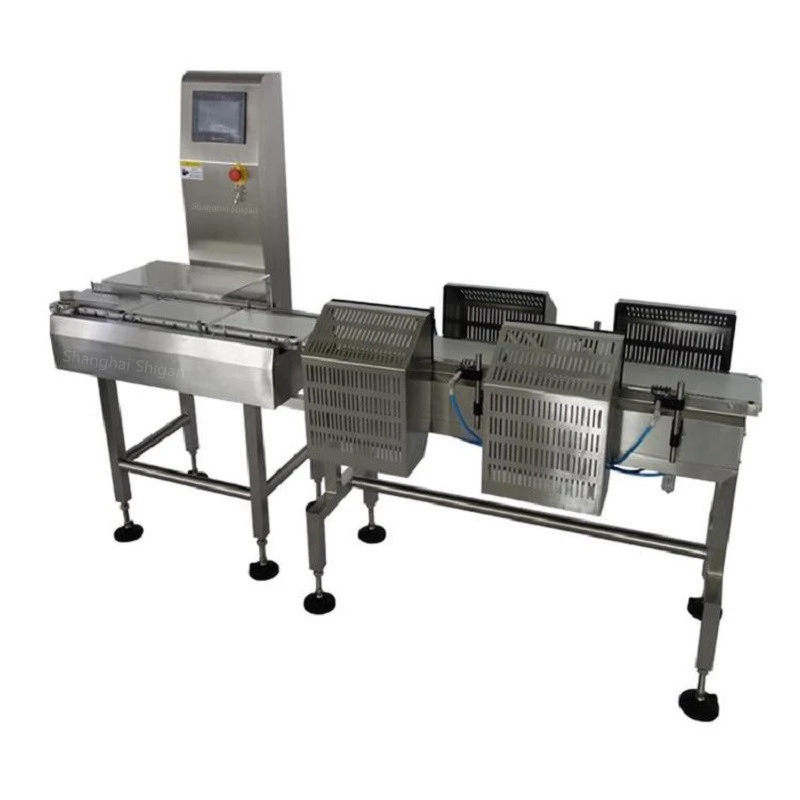

Multi-level weight sorting checkweigher for food pharmacy pictures
1.2000 logs, easy to find and print.
2. High-precision sensor based on advanced, high-speed digital processing technology.
3. Dynamic weight compensation technology, automatic zero-point analysis and tracking technology.
4.100 product presets; simple product editing and product storage.
5. Quick product change, automatic adjustment of product sorting speed. Stainless steel conveyor designed with high waterproof grade.
6. Based on friendly touch screen operation.
7. Based on 32-bit high-speed CPU.
8. Multi-function operating system, multiple languages optional.

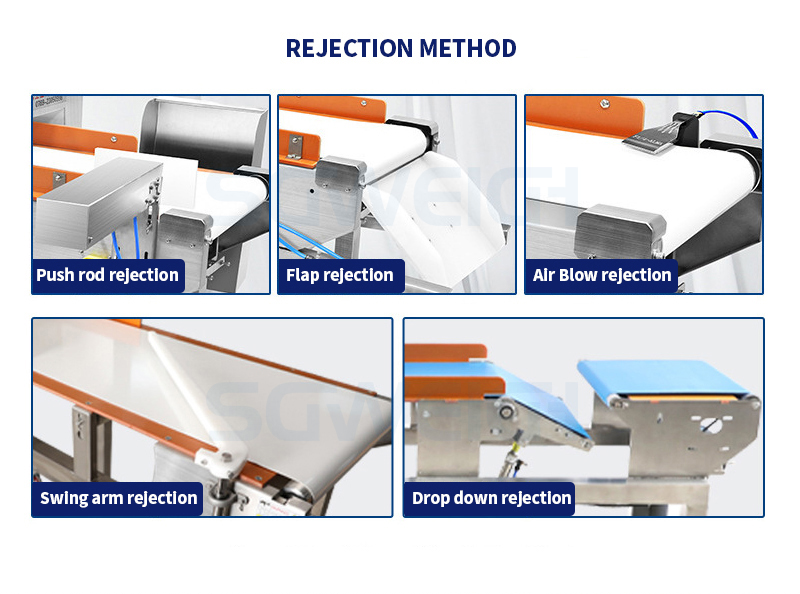

9. Automatic rejection system, different rejection devices can be selected.
10. Updated product learning function.
11. Various peripheral system connections and settings.
12. Optional multiple defenses.
13. Digital signal processing technology and multiple digital filters.

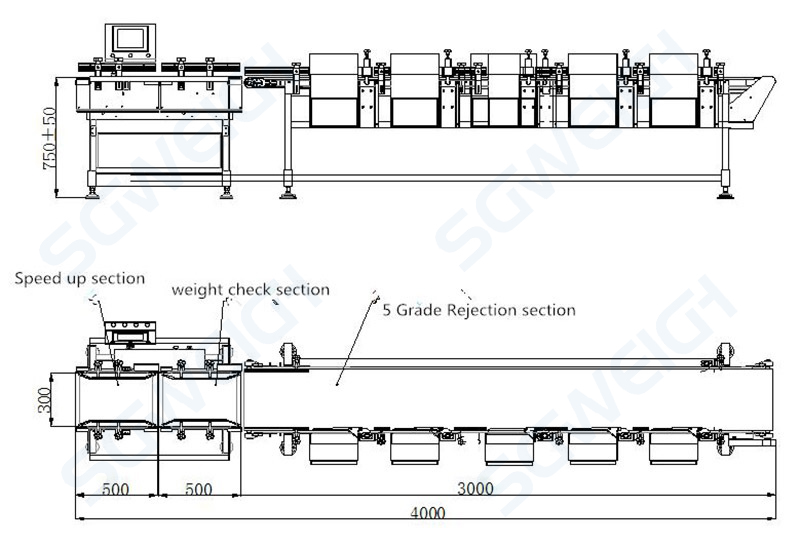

Type SG-D300
Weighing Range 5-3000g
Limited of product L: 350 W:300 H: 3-200mm
Accuracy ±0.3g-0.5g Depends on product
Division Scale 0.1g
Belt Speed 0- 50 m/min
Max Speed 60 pcs/min
Belt Width 300mm
Machine Weight 60kg+150kg
Power Supply AC 220V 50HZ
Power 1000W
Main Material SU304 stainless steel
High Speed Multi-sorting Checkweigher For Food Processing Industry Weight Sorter
Multi-sorting checkweigher for food is specially designed for continuous weighing, sorting, and batch product production lines in daily chemical, chemical, food and beverage, and pharmaceutical industries. The weight range of the products in the production line is checked according to the set level and the designated channel is sorted, so that the products go to the designated station for graded processing.
If the product specifications do not meet the requirements, please contact us by inquiry or chat with me to meet the customized needs, and provide multiple sets of solutions free of charge. We can plan and design according to the products and on-site space provided by customers, saving you the trouble of tedious weighing for the subsequent products.
High Speed Multi-sorting Checkweigher For Food Processing Industry Weight Sorter
The Delivery Date: After receiving the payment, the delivery date will be within 15-30 working days
Packaging: Protective film + wooden case
Logistics: Air, sea or express (DHL, etc.)
The Freight: The cost of transport depends on the destination, mode of transport and the weight of the goods
Pay: T/T, Western Union, paypal
1. Consultation and evaluation: Understand the customer's requirements, production process and quality control goals, and determine the multi-stage sorting checkweigher solution that best suits their specific needs.
2. Product demonstration: Intuitively understand the operation of the equipment and directly evaluate its performance.
3. Installation and commissioning: After purchase, the multi-sorting checkweigher for food is installed and commissioned by trained technicians to ensure its correct operation and seamless integration into the customer's production line.
4. Technical support: Provide continuous technical support to solve any questions, problems or maintenance needs during the operation of the weight sorting checkweigher.
5. Warranty coverage: 1 year warranty, lifetime repair
We aim to provide our customers with the right solutions, support and peace of mind throughout the lifecycle of their equipment, ensuring that the multi-level weight sorting checkweigher meets their needs and provides long-term value.
