Large Range Box Carton Multi-stage Sorting Checkweigher Industrial Weighing
Multi-level weight sorting machine as known as multi-level checkweigher, weight grading machine, multi-stage checkweigher, check weigher, weight sorter, weight checker, and etc,.
The box carton multi-stage sorting checkweigher can be divided into zones according to the weight required by the customer. The automated design can safely classify products and can directly replace manual weighing, thereby achieving the purpose of improving production efficiency, improving accuracy, reducing labor and reducing costs. The large range industrial checkweigher adopts imported special dynamic weighing device to achieve high-speed and stable measurement, simple mechanical structure, and quick disassembly, cleaning and maintenance. For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

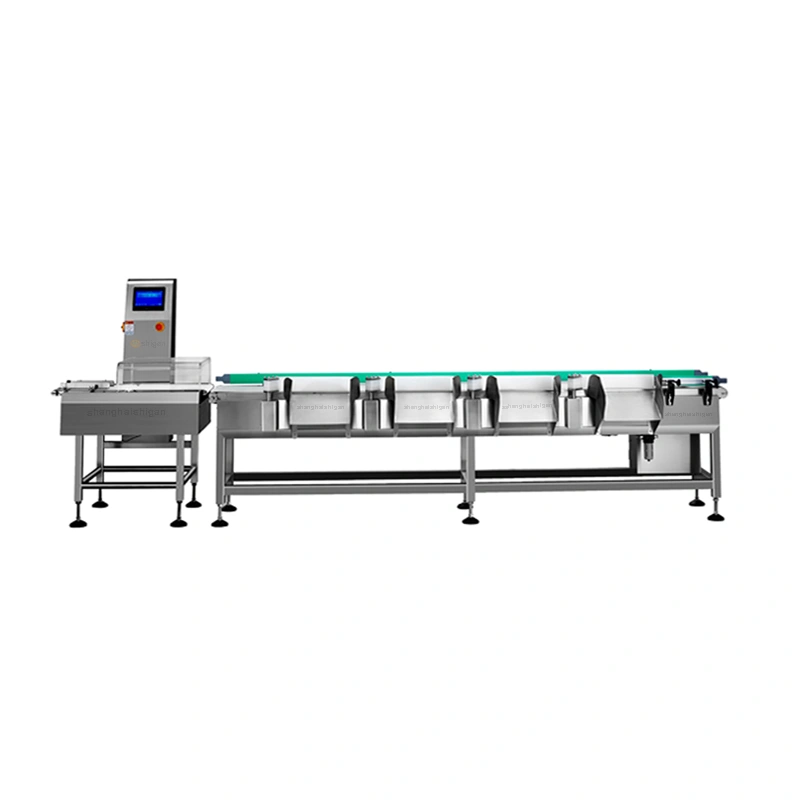

Box carton multi-stage sorting checkweigher pictures
Type SG-D300
Weighing Range 5-3000g
Limited of product L: 350 W:300 H: 3-200mm
Accuracy ±0.3g-0.5g Depends on product
Division Scale 0.1g
Belt Speed 0- 50 m/min
Max Speed 60 pcs/min
Belt Width 300mm
Machine Weight 60kg+150kg
Power Supply AC 220V 50HZ
Power 1000W
Main Material SU304 stainless steel
1. Reinforced stainless steel frame, fully waterproof design.
2. High-precision digital weighing sensor adopts high-speed digital filtering processing and has automatic zero-point tracking function.
3. Sorting area and quantity can be customized according to customer needs.
4. Automatic learning function of product characteristics.
5. 50 groups of product presets, comprehensive product editing and storage.
6. Built-in report statistics, keep track of production status at any time.
7. Intelligent design, automatic parameter adjustment, easy operation.
8. The conveying structure adopts a detachable design, which is convenient for disassembly and cleaning.
Large Range Box Carton Multi-stage Sorting Checkweigher Industrial Weighing
Online box carton multi-stage sorting checkweigher is specially designed for continuous checkweighing, sorting and batch product production lines in daily chemical, chemical, food and beverage, and pharmaceutical industries. The weight range of the products in the production line is checked and the products are sorted into designated channels according to the set levels, so that the products can be sent to designated stations for graded processing.
Shanghai Shigan provides users in various industries with a full range of customized box carton multi-stage sorting checkweigher application services to ensure that the automatic weighing and detection machine meets the actual production needs. The rejection methods include alarm prompts, lever rejection, push rod rejection, air blow rejection and other methods. Different weighing and rejection methods are used according to the size and properties of the product.
Large Range Box Carton Multi-stage Sorting Checkweigher Industrial Weighing
The usual packaging is a wooden box (size: length * width * height). If exported to European countries, wooden boxes will undergo fumigation treatment. If the container is too tight, we will use polyethylene film packaging or packaging according to the customer's special requirements
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* One year warranty, lifetime repair
