Pharmaceutical Checkweigher and Metal Detector for Small Bag Factory
Checkweigher and metal detector combo as known as weighing metal detector, checkweigher + metal detector, weighing metal detection machine, check weighing and metal detector machines, combination machine check weight metal detector, online weigh checker with metal detector, and etc,.
Shanghai Shigan is specialized in the production and sales of pharmaceutical checkweigher and metal detector adopts a simple and friendly operation interface, a conversational touch screen, and parameters can be conveniently set through a simple key control interface. its online checkweigher and metal detector for small bag has very good water resistance , in line with the national standard IP-66. For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

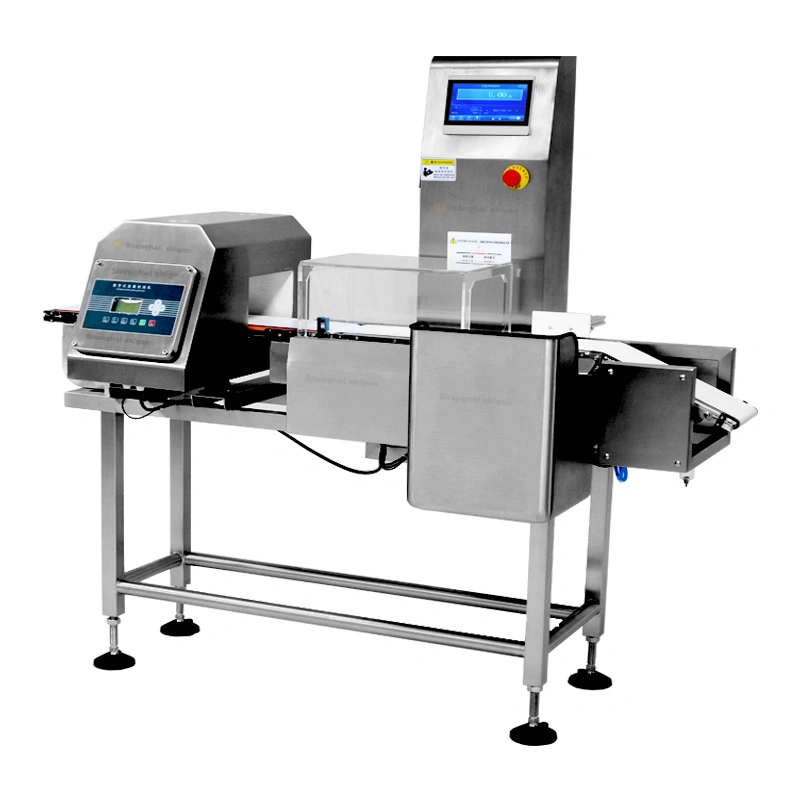

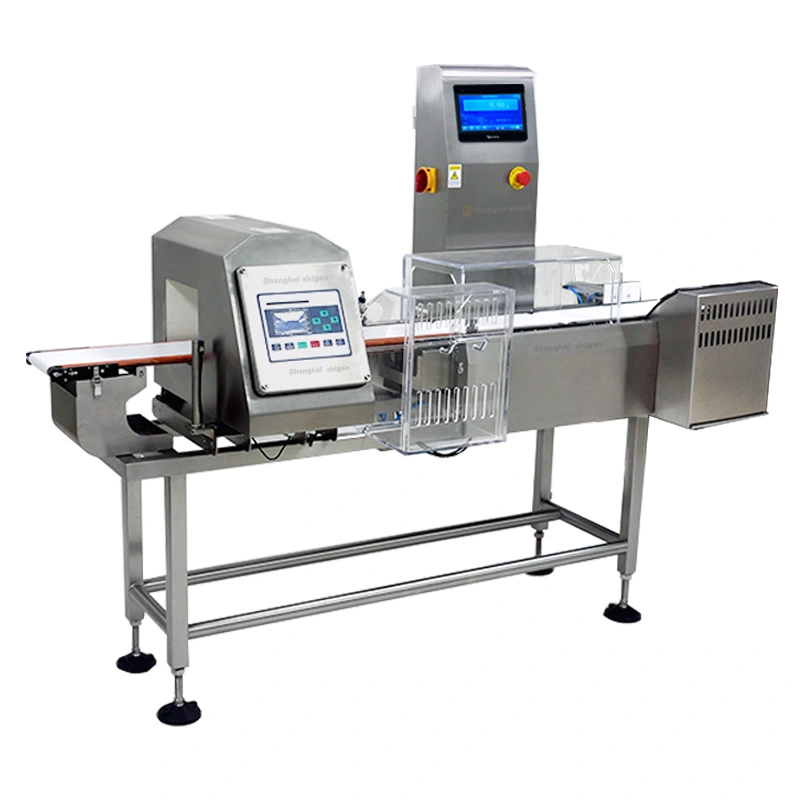

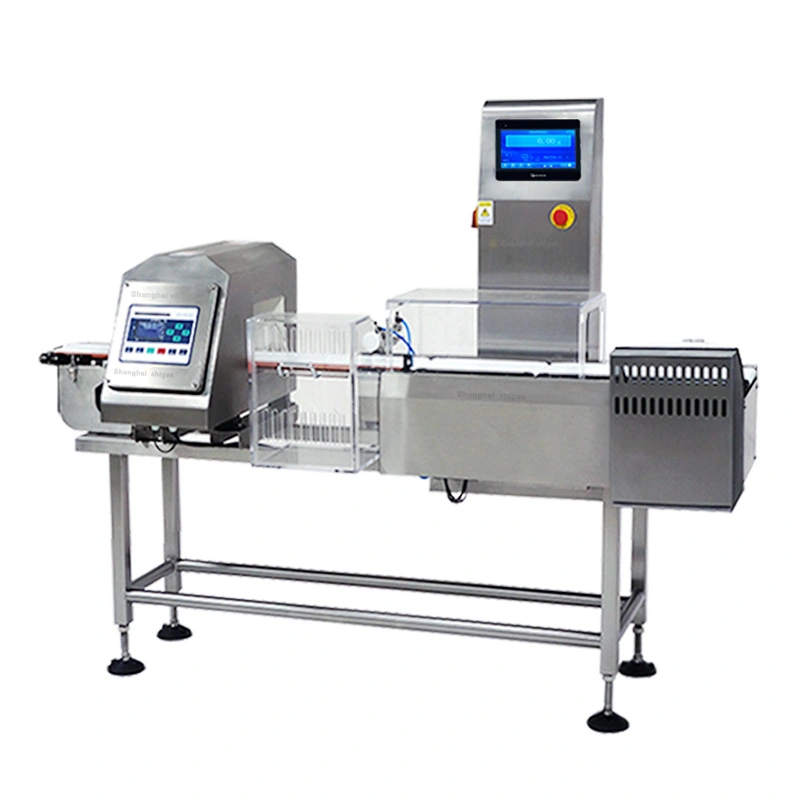

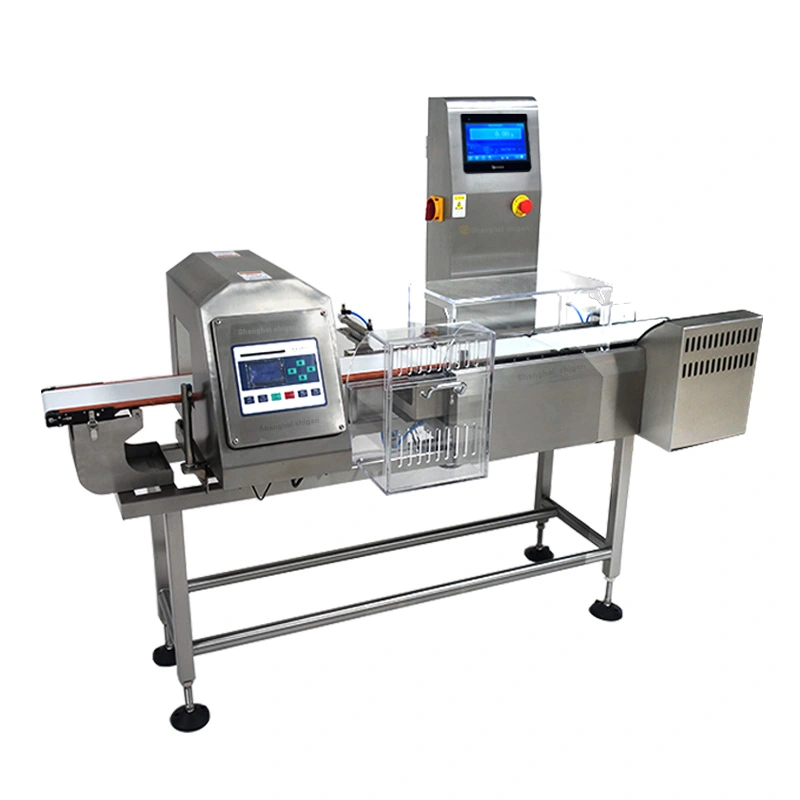

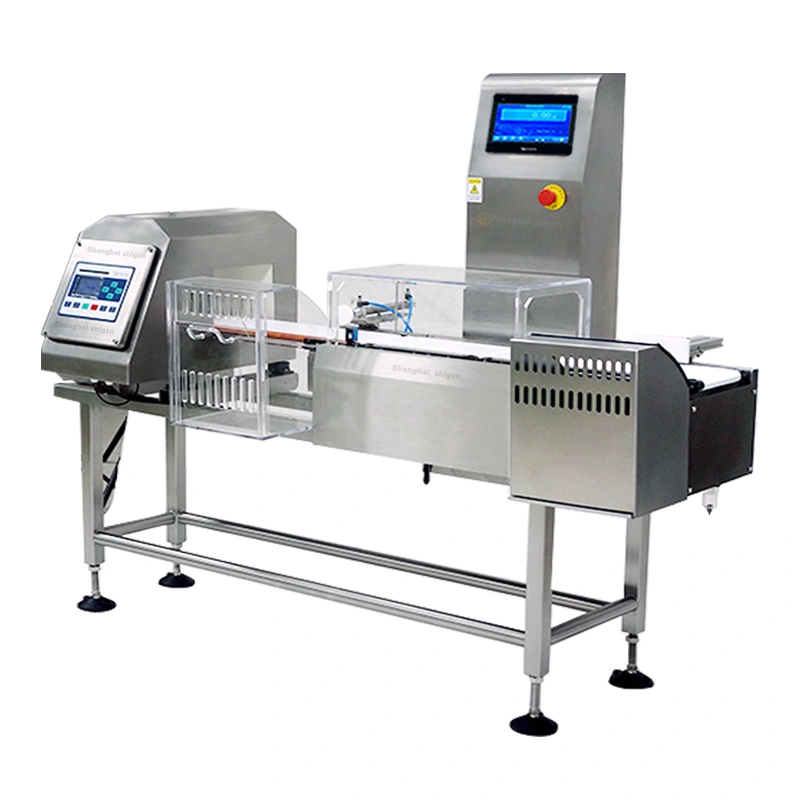

Pharmaceutical checkweigher and metal detector combo pictures
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
1st step: Customer has showed his special requirements.
2nd step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3rd step: Making the conceptive CAD drawing based on communication and understanding.
4th step: Making the detail and 3D drawing agter fixed the design and other details.
5th step: Offer the quotation after confirm the design,material and surface treament.
6th step: Making the sample for approval.
7th step: Testing installation after demo mock up.
8th step: Big production delivery and service after sales.
1. High precision: Advanced sensor technology is used to achieve high-precision weight measurement, ensuring the accuracy of measurement results.
2. High speed dynamic processing: Adopting a high-speed processing chip, it can quickly respond and handle weight changes, achieving efficient detection.
3. Intelligence: With adaptive adjustment function, it can automatically adjust according to the different characteristics of the item, ensuring the accuracy and reliability of each weighing result.
4. Stability: Stable operation, not easily affected by external environmental interference, ensuring stable equipment operation.
5. Easy to operate: The user-friendly interface makes the operation more intuitive and convenient, making it easy to get started.
6. Diverse functions: capable of detecting overweight and underweight bags, missing bottles, cans, and parts in the entire box, as well as automatic removal of non-conforming products and sound and light alarm functions.
7. Visualization and data management: Modern weighing scales are usually equipped with touch screens or display screens to achieve real-time display and recording of data, facilitating analysis and management.
Pharmaceutical checkweigher and metal detector is widely used in many industries such as pharmaceuticals, food, beverages, electronics, health products, daily chemicals, light industry, and agricultural and sideline products. Such as boxed drugs and food industry
Shanghai Shigan Industrial Co., Ltd. has been engaged in the research and development, production, sales, and service of automatic weighing, metal detection technology for over 11 years. We aim to help customers achieve automated production and management, and continuously provide effective solutions to reduce costs and improve market competitiveness. We also export to overseas markets such as Malaysia, Vietnam, Indonesia, the Philippines, Kazakhstan, Uzbekistan, the United Arab Emirates, Saudi Arabia, etc., and have received countless praise and trust!
Our main Products
Metal Detector for Pharmaceutical
Metal Detector for Daily Necessities
Metal Detector for Other Industries
Checkweigher and Metal Detector Combo
Multi-stage Sorting Checkweigher
1. Packaging materials: International standard export packaging boxes are usually used, which have good wear resistance, shock resistance, and waterproof performance. The material of the box can be hard wooden boxes, plastic boxes, or export specific cardboard boxes.
2. Protective measures: In order to ensure that the weigher is not damaged during transportation, it is necessary to add sufficient filling materials, such as foam, shockproof cotton, etc., into the packaging box.
3. Identification and Marking
1. Equipment installation and debugging: The company provides detailed operation manuals and free operation training to enable customers to proficiently master the usage methods of the equipment.
2. Technical Support: The company provides 7x24 hours of technical support, and customers can contact engineers at any time to solve any problems they encounter during use.
3. Accessories supply: The company provides original accessories to ensure the quality and stability of the accessories.
4. Quality assurance: The company is responsible for the products sold, ensuring that the quality and performance of the equipment meet industry standards.
5. One year warranty and lifelong maintenance
