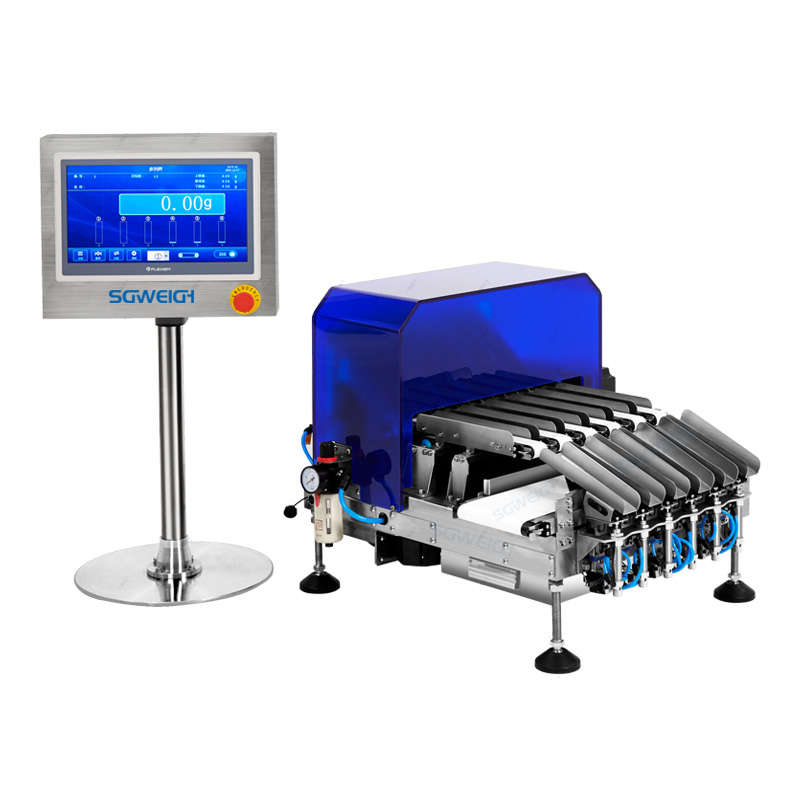

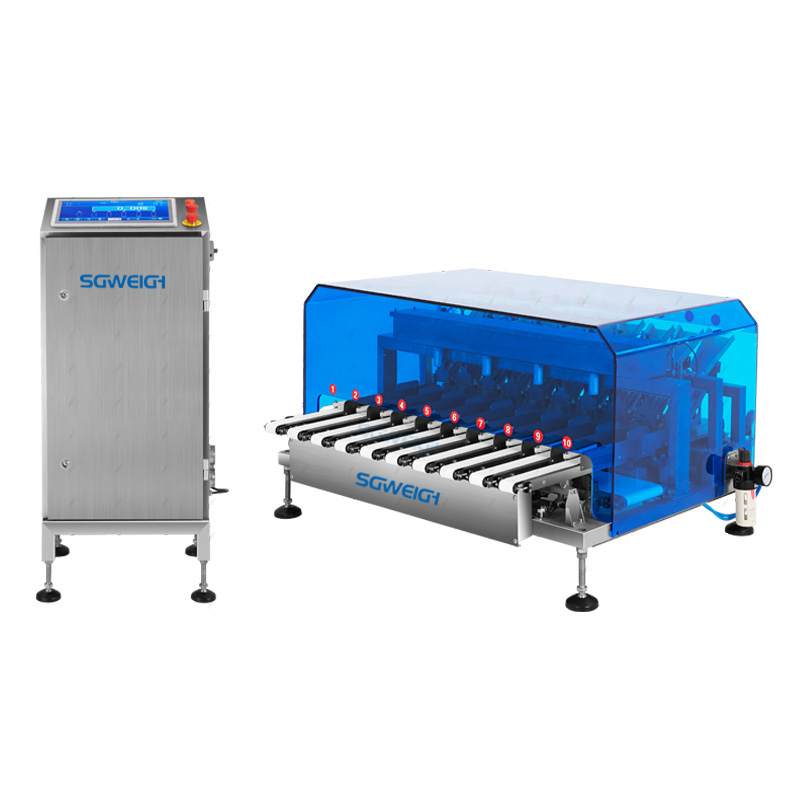

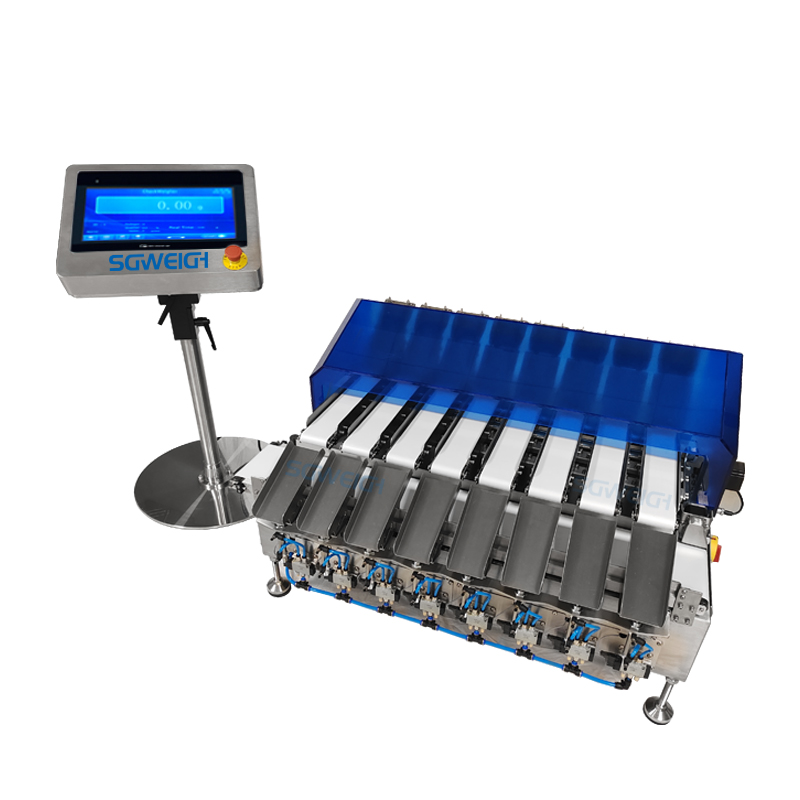

Stick Pack Multi-Lane Checkweigher For Pharmaceutical Multiline Weight Checker
The stick pack multi-lane checkweigher for pharmaceutical is designed for bar bag packaging applications. It can accurately weigh multiple lanes of bar bags at the same time, detect weight differences in real time, minimize waste and maximize product consistency, and improve efficiency. Automatic multi-lane checkweigher for pharmaceutical-save space and cost to achieve high-precision weighing of each column at the same time, independent rejection of each channel, and each channel can work asynchronously and independently. For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

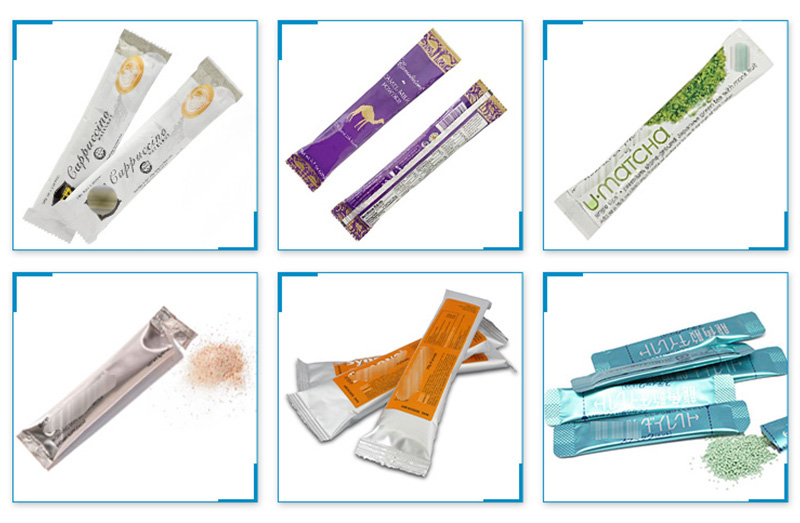

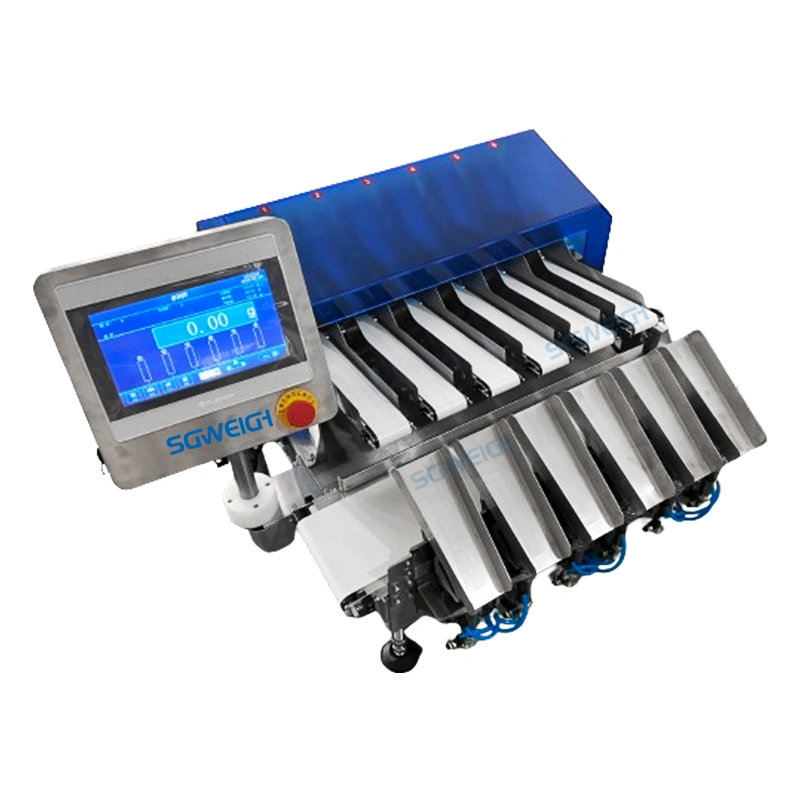

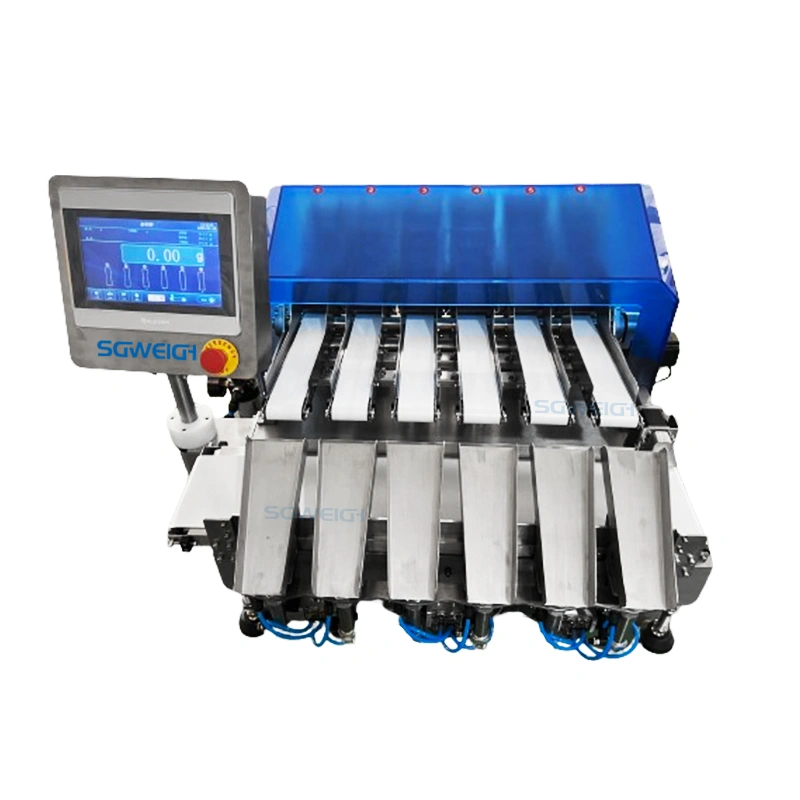

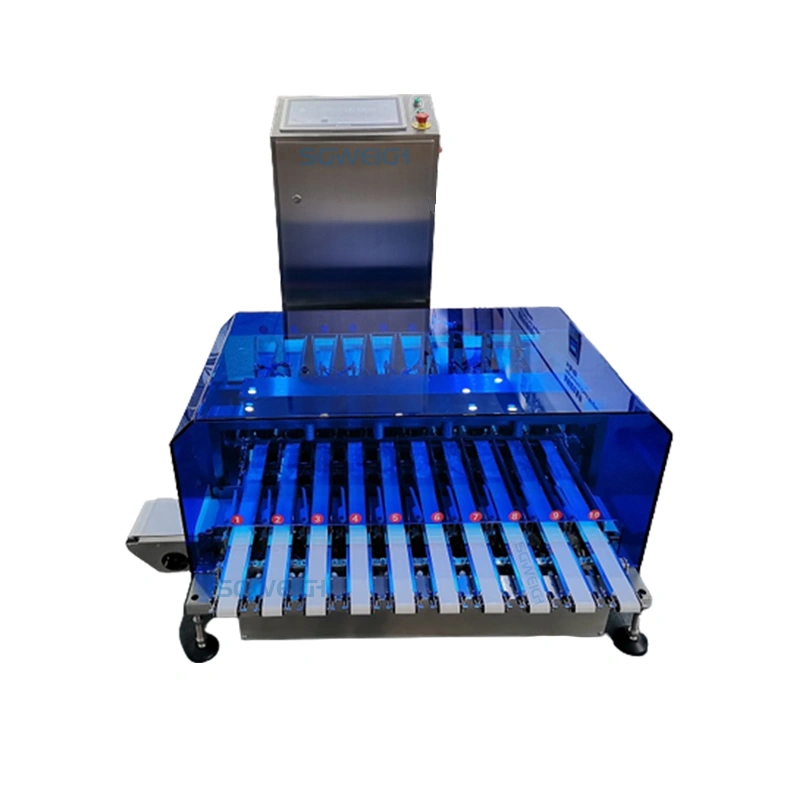

Stick pack multi-lane checkweigher for pharmaceutical pictures
Type SG-10XM
Weighing Range 2-300g
Limited of product L: 180 W: 40 H: 2-20mm
Accuracy ±0.01g Depends on product
Division Scale 0.01g
Each Channel Speed 70 pcs/min
Belt Width 30mm
Machine Weight 200kg
Power Supply AC 110/220V ±10% 50HZ
Power 300W
Main Material SU304 stainless steel
Stick Pack Multi-Lane Checkweigher For Pharmaceutical Multiline Weight Checker
1. Patented weighing channel for N-row slides.
2. Maximum weighing speed: 100 cuts/minute.
3. Maximum weighing accuracy: 0.03g.
4. Independent rejection for each channel.
5. Online feedback of weighing data to multi-row packaging machine to achieve real-time automatic adjustment of loading volume for each row.
6. The number of consecutive unqualified alarm bags for each row can be set manually.
7. Output I/O alarm signal to the host when equipment fails.
8. N≤6, 10-inch touch screen; N＞6, 15-inch industrial screen.
9. Ethernet interface; support Modbus-TCP protocol.
10. Statistical result export interface: USB.
11. Data statistics for each channel: real-time result display, trend chart display, bar chart display.
Stick pack multi-lane checkweighers are suitable for detecting whether the weight of a single product is qualified. They are widely used in many industries such as pharmaceuticals, food, beverages, electronics, health products, daily chemicals, light industry, agricultural and sideline products, etc.
1st step: Customer has showed his special requirements.
2nd step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3rd step: Making the conceptive CAD drawing based on communication and understanding.
4th step: Making the detail and 3D drawing agter fixed the design and other details.
5th step: Offer the quotation after confirm the design,material and surface treament.
6th step: Making the sample for approval.
7th step: Testing installation after demo mock up.
8th step: Big production delivery and service after sales.
Stick Pack Multi-Lane Checkweigher For Pharmaceutical Multiline Weight Checker
The Delivery Date: After receiving the payment, the delivery date will be within 15-30 working days

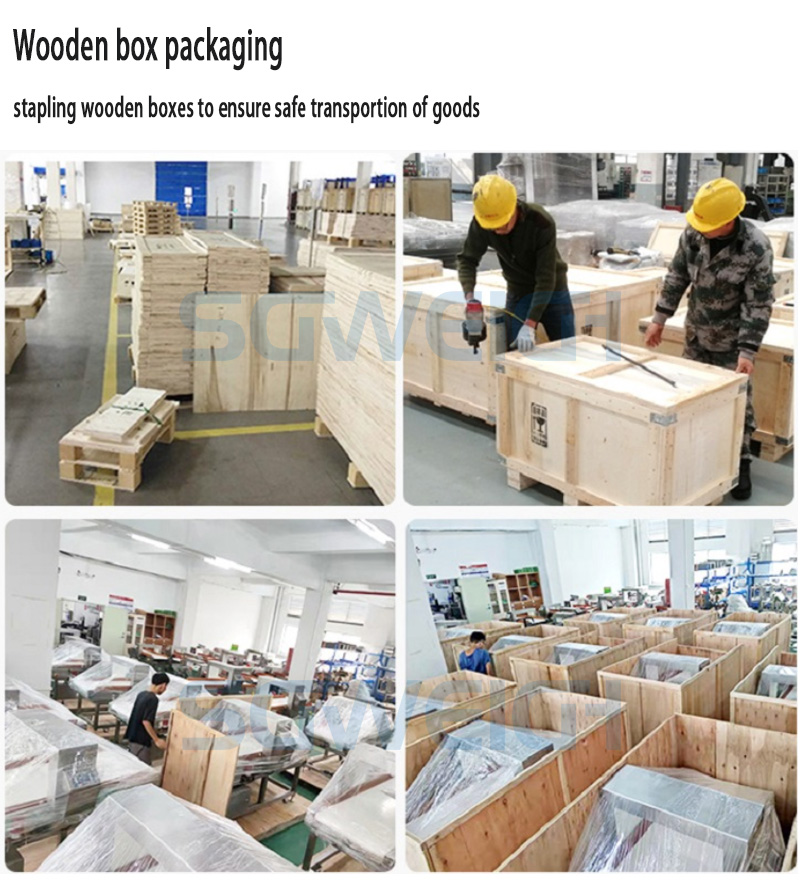

Packaging: Protective film + wooden case
Logistics: Air, sea or express (DHL, etc.)
The Freight: The cost of transport depends on the destination, mode of transport and the weight of the goods
Pay: T/T, Western Union, paypal
1.We will deliver the machine and provide the load list on time to ensure you can get the machine quickly
2.We often ask for feedback and provide assistance to customers whose machines have been used in their factories for a period of time.
3.We provide one year warranty
4.Well-trained and experienced staff will answer all your inquiries in English and Chinese
5.12 months warranty and lifetime technical support.
6.Your business relationship with us will be kept confidential to any third party.
7.Provide good after-sales service, if you have any questions, please contact us.
