Factory Price Conveyor Belt Food Metal Detector Table Metal Detector for Packaged Food
Product Description
The conveyor belt metal detector is a high-end all-metal detector with high stability and the ability to eliminate product effects. Table food metal detector can automatically analyze the signal characteristics of the product. The digital metal detection machine can automatically set the detection parameters of the specified product, which simplifies the parameter setting process. , 50 kinds of product parameters are automatically stored.Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

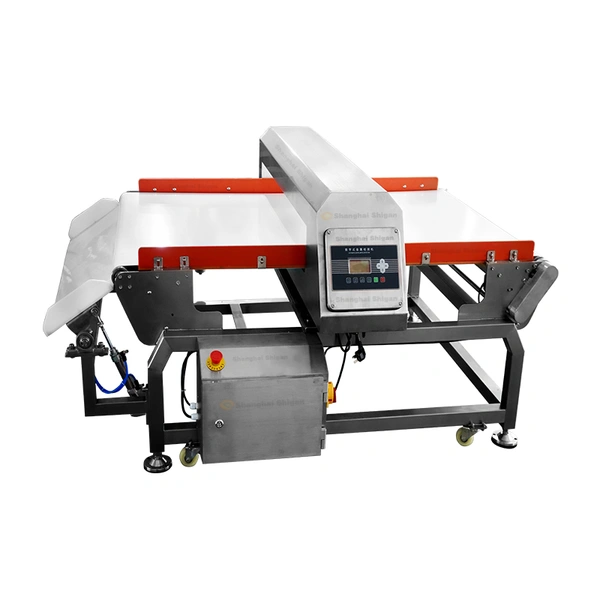

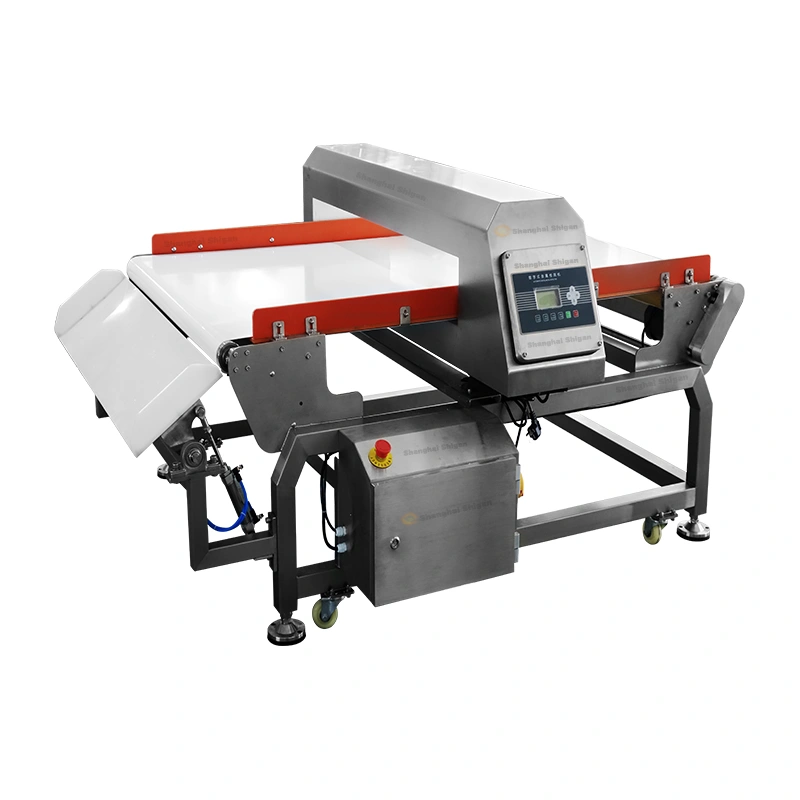

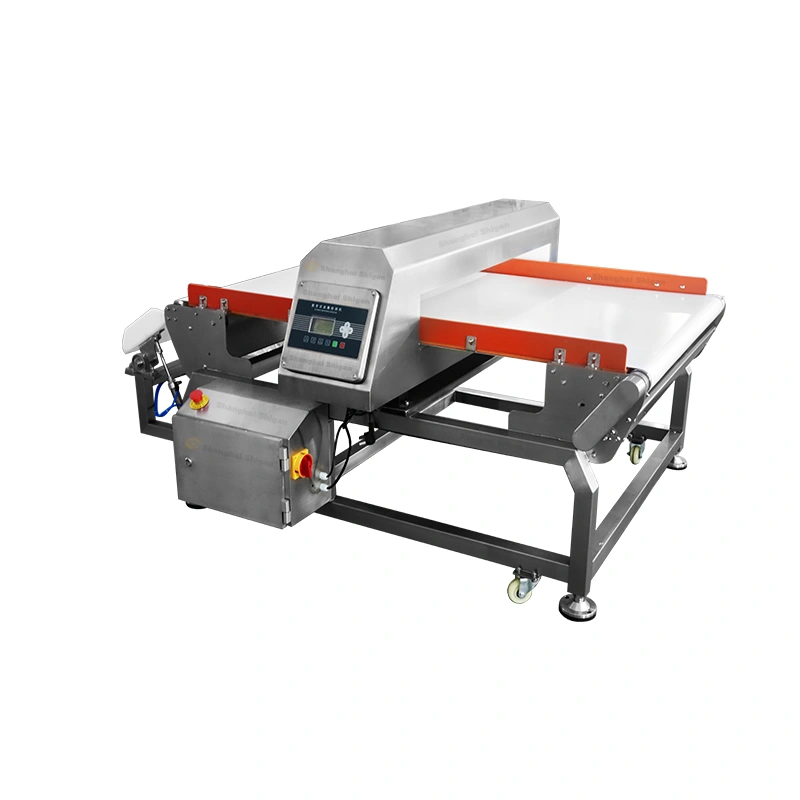

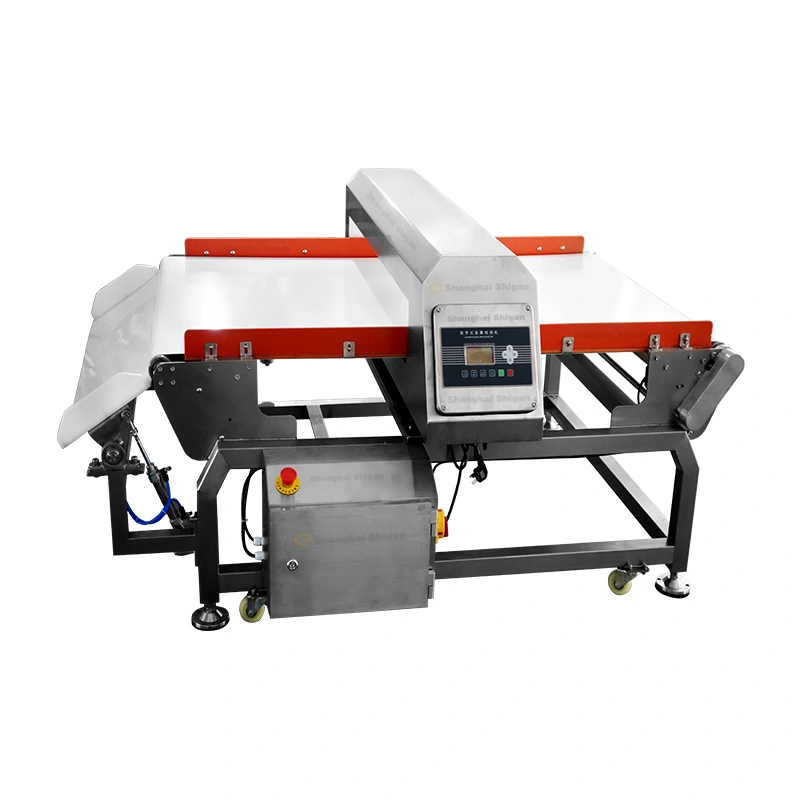

Table food metal detector pictures
Related parameters
Material: Detector 304 grade stainless steel, frame 201 grade stainless steel, PVC/PU white tape.
Belt length (mm): 1600mm.
Conveyor height from belt to ground: 650mm + 100mm ft adjustable, including removable wheels.
Alarm system: buzzer/warning light.
Flow rate: 25 m/min fixed or 10 to 40 m/min variable.
Flow direction: left to right or vice versa (facing the control panel).
Operating system language: English/Chinese.
Power supply: AC110V/220V, 50/60Hz, power: 90/120/200W.
Deny system:
1. Stop when scrap is detected (below 50KG) - If metal is detected and an alarm is issued, the conveying system will stop, allowing the operator to remove the contaminated product.
2. Pusher rejector (below 10KG) - Pneumatic pusher diverts contaminated product from the production process/belt, as shown in the left image below.
3. Drop down Reject - This rejection mechanism is typically used to remove dry bulk products that are contaminated and/or out of specification. The product passes through the chute, which in the open position allows the continued passage of high-quality product. Trigger end baffles or lift baffles to divert contaminated or out-of-spec product from good product flow.
Power supply: AC110V/220V/380V 50/60Hz.
Main Advantages
1. It adopts dual-channel signal detection circuit combining technology, especially high detection sensitivity and product effect suppression ability, and is widely used. With dual signal display function, when metal objects pass through, the indicator light will display different induction intensity according to the size of the metal. Using DDS frequency synthesis, DSP digital signal processing, power amplifier and other technologies, the industry technology is good.
2. It adopts dual high-speed digital signal processor design, has high detection accuracy and high-speed processing speed, and has the function of product effect adjustment. For example, wet products, sugar-containing products, and salt-containing products will produce metal-like signals to the metal detector. This effect will affect the detection effect. This function reduces the product effect and achieves a better detection effect.
3. The mechanical structure that is easy to disassemble is convenient for users to clean and maintain.
4. It can be used for supporting production on the assembly line.
5. Fully welded food-grade 304 stainless steel frame, high-grade protection motor for choice, and higher IP69 protection grade, suitable for particularly harsh working environments.
6. Alarm mode: buzzer alarm to stop, or optional reject device.
7. A variety of removal methods are available (push rods, flaps, blowing, etc.) to ensure accurate and reliable removal of foreign objects and reduce material waste to a large extent.
Digital conveyor belt metal detector DETAILS
Our Company
Package
Packing Detail:
Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
Shipped in 25 days after payment
Our SERVICE
In the spirit of pursuing high-quality products and customer satisfaction, Shanghai Shigan Industrial Co,.Ltd solemnly promises you the principle of preferential price, thoughtful service and reliable product quality.
1.Product quality commitment:
(1). There are quality records and testing data for the manufacture and testing of products.
(2). For the inspection of product performance, we sincerely invite users to inspect the whole process and performance of the product in person. After the product is confirmed to be qualified, it will be packaged and shipped.
2. the product price commitment:
(1). Under the same competitive conditions, our company will sincerely provide you with a preferential price on the basis of not reducing the technical performance of the product or changing the product components.
3. Delivery time commitment:
(1). Product delivery time: as far as possible according to user requirements, if there are special requirements, it needs to be completed in advance, and strive to meet user needs.
