Inline Metal Detector for Beverage Food Processing Conveyor Metal Detector
This inline metal detector for beverage food is designed for modern food and beverage manufacturers. It continuously scans products as they move along conveyor belts, identifying even the smallest traces of ferrous, non-ferrous, and stainless steel contaminants to ensure compliance with safety standards. The food processing conveyor metal detector operates at extremely high speeds, and its intelligent digital signal processing adapts to different product characteristics while maintaining exceptional sensitivity and accuracy, ensuring consistent detection performance across various food and beverage applications. For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

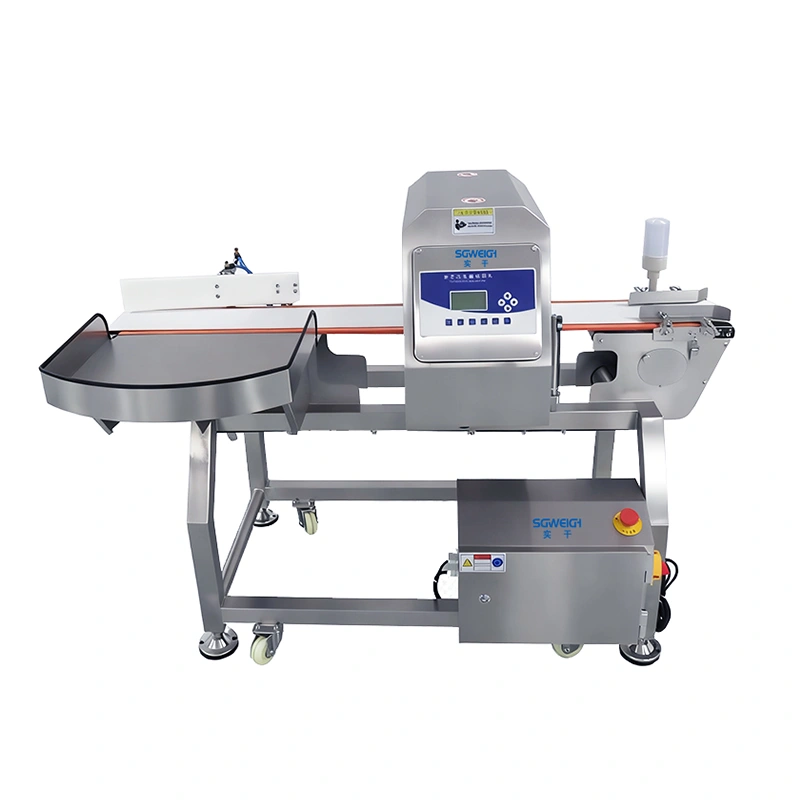

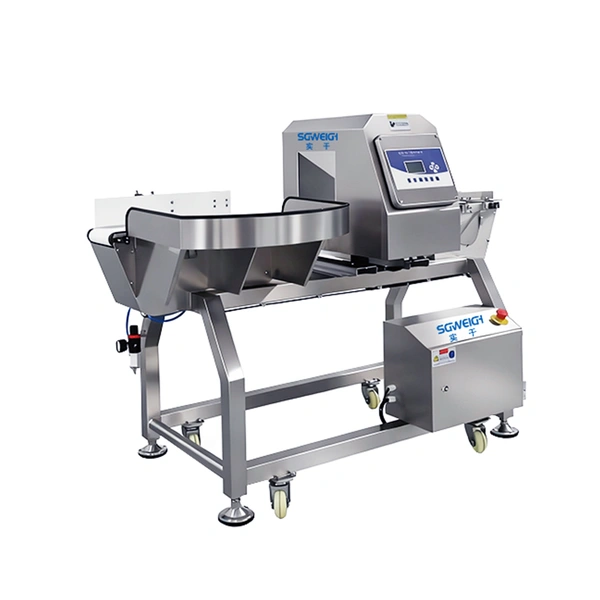

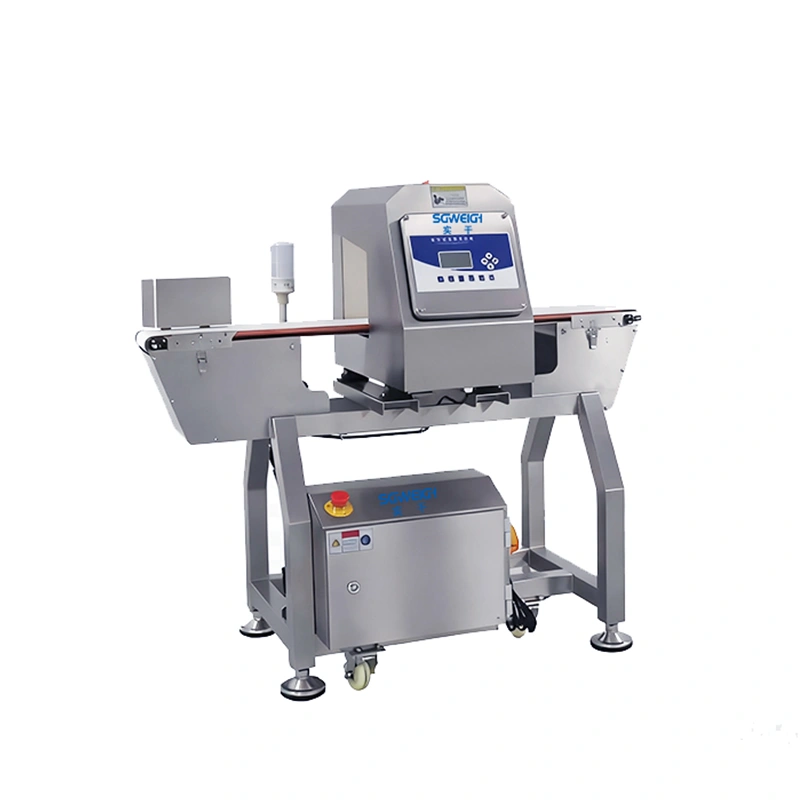

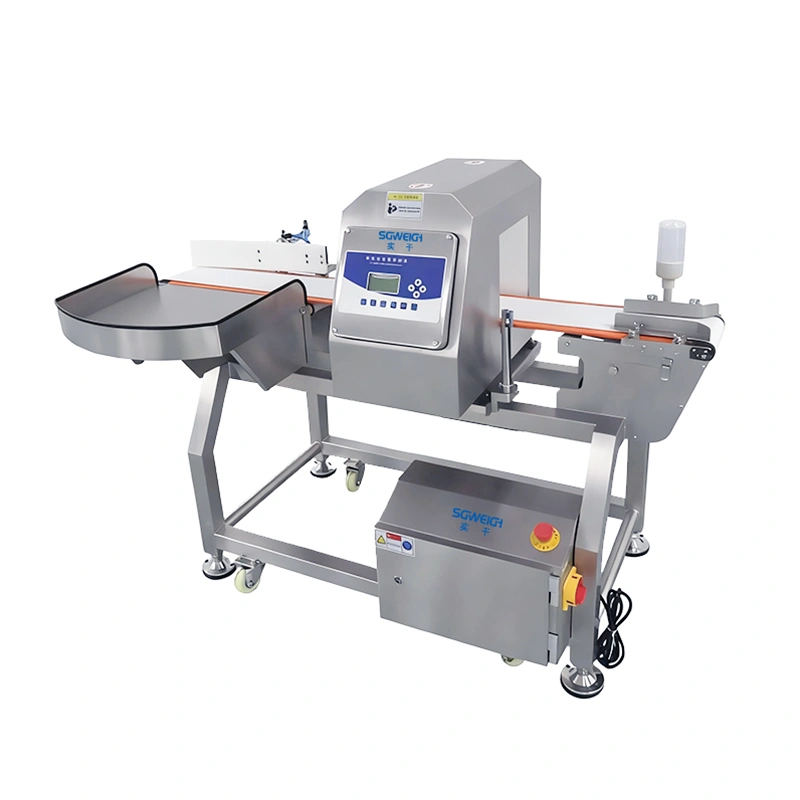

Inline metal detector for beverage food photos
Detection chamber opening height: Standard sizes: 100/120/150/200mm. Other heights can be customized upon request. Higher window heights result in lower sensitivity.
Detection port width: 500mm.
Body material: All stainless steel.
Sensitivity: Iron ball φ0.8m-φ2.5m; Stainless steel 340 type/non-ferromagnetic metals such as copper and aluminum ≥φ2.5m.
Power supply: 220V 50Hz.
Power: 120W.
Alarm method: Audible and visual alarm with automatic shutdown.

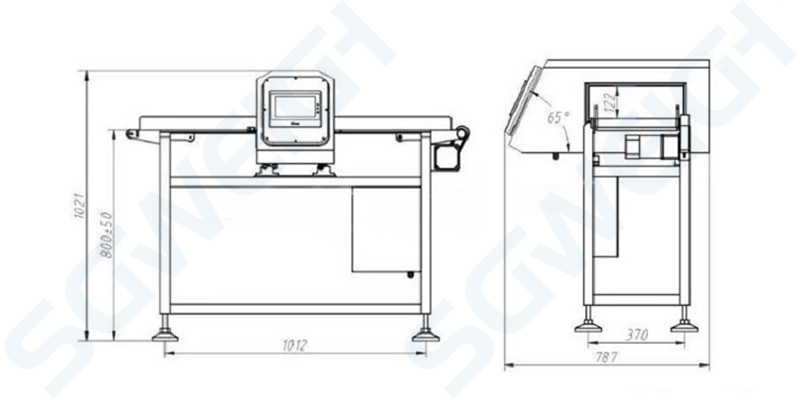

External dimensions (L x W x H): 1600 x 840 x 1005 mm.
Weight: 200kg.

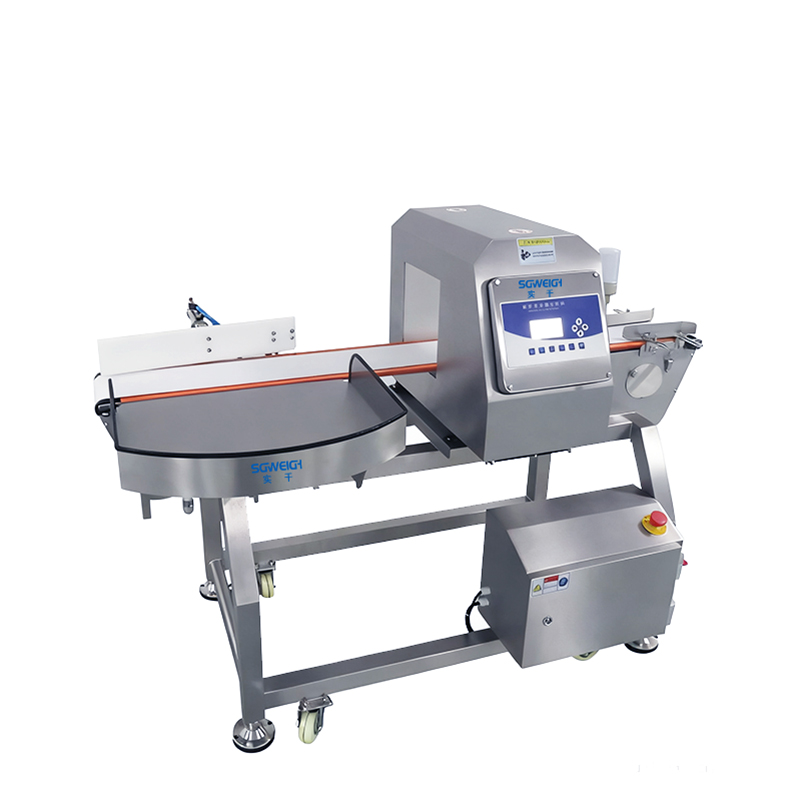

Inline Metal Detector for Beverage Food Processing Conveyor Metal Detector

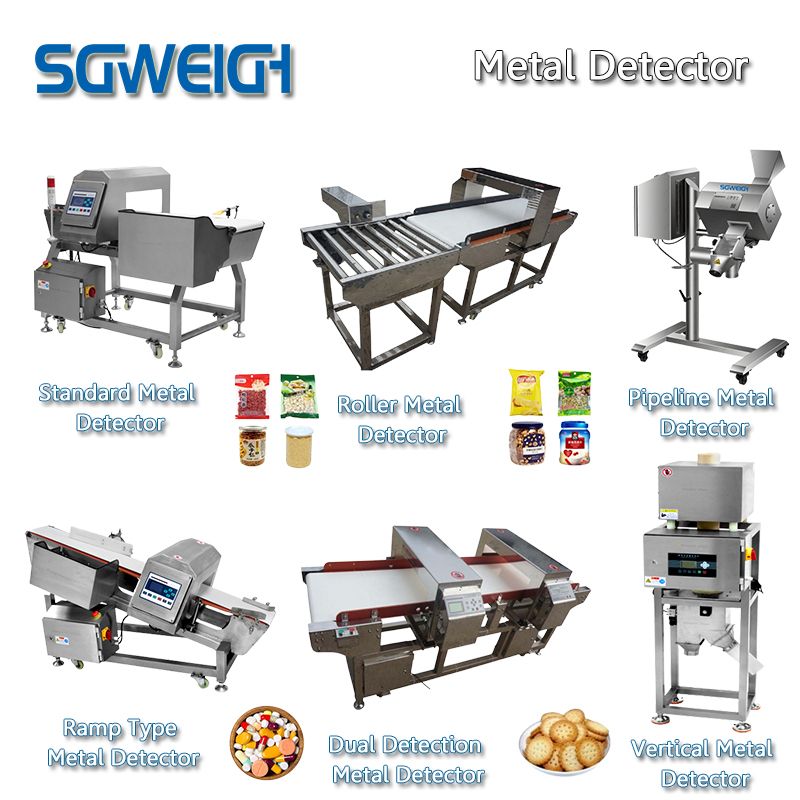

SGWEIGH offers a full range of inline metal detector for beverage foods, customizable to your industry and application requirements. Whether you need a compact solution for limited space or high-speed equipment for large-scale production, our machines offer precise, reliable, and durable designs.
1. High sensitivity and reliable performance.
2. Phase adaptive technology adapts to different products, effectively eliminating product effects.
3. Utilizes a combination of DSP and microprocessor to process test data of detection signals, improving detection efficiency.
4. Convenient setting of detection parameters.

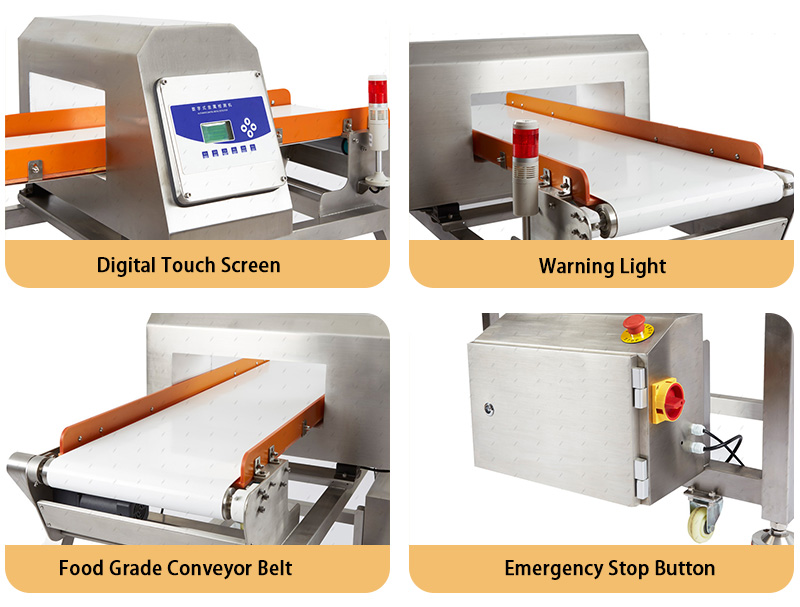

5. Simple operation. Self-learning function automatically learns and saves product memory. Touchscreen operation is simple and easy to use.

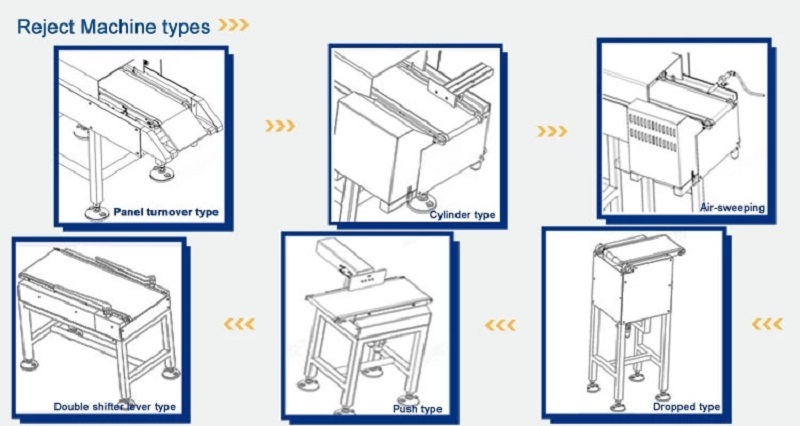

6. High efficiency. The automatic baffle rejection system improves production efficiency and saves labor costs.

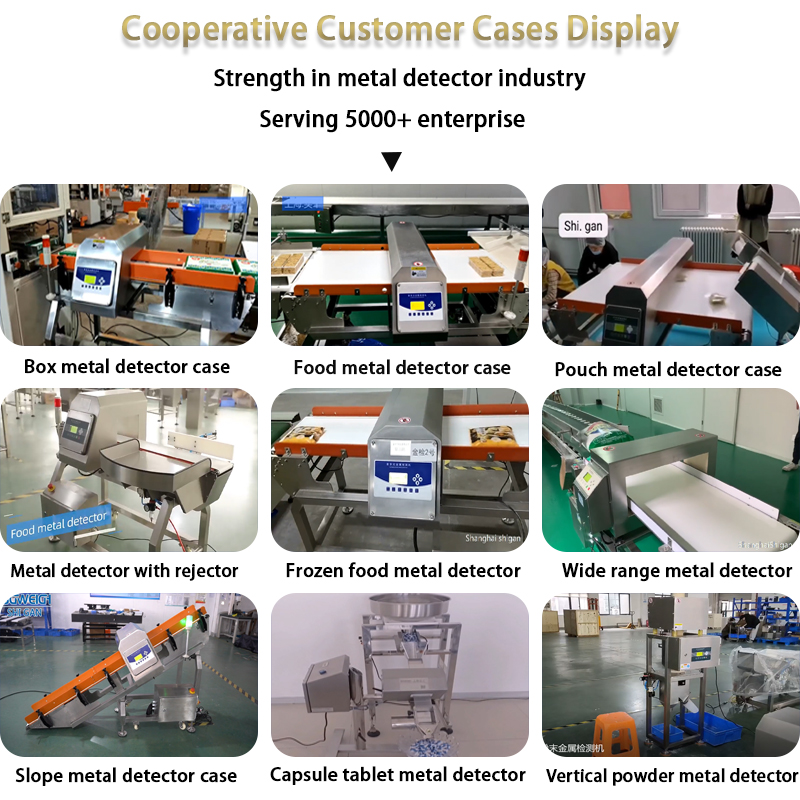

Inline metal detector for beverage food is widely used in the food, pharmaceutical, chemical, textile, clothing, toy, and rubber industries. It is the first choice for HACCP in the food industry and GMP in the pharmaceutical industry, and is especially suitable for flour-based foods, vegetable foods, frozen foods, sugar-based foods, and pickles.
Inline Metal Detector for Beverage Food Processing Conveyor Metal Detector
The usual packaging is a wooden box (size: length * width * height). If exported to European countries, wooden boxes will undergo fumigation treatment. If the container is too tight, we will use polyethylene film packaging or packaging according to the customer's special requirements
1. Customer Consultation and Technical Support: Providing customers with consultation services regarding product use, repair, and maintenance, and answering questions encountered during operation and use.
2. Technical Training: Providing training tailored to customer needs on product operation, maintenance, and repair, ensuring customers can correctly use and maintain the products.
3. Parts Supply: Providing genuine parts, ensuring the quality and performance of parts to meet user needs.
4. One-Year Warranty, Lifetime Repair
5. After-Sales Service Tracking: Tracking and providing feedback on the after-sales service process, promptly understanding customer needs and opinions, and continuously improving service quality.
