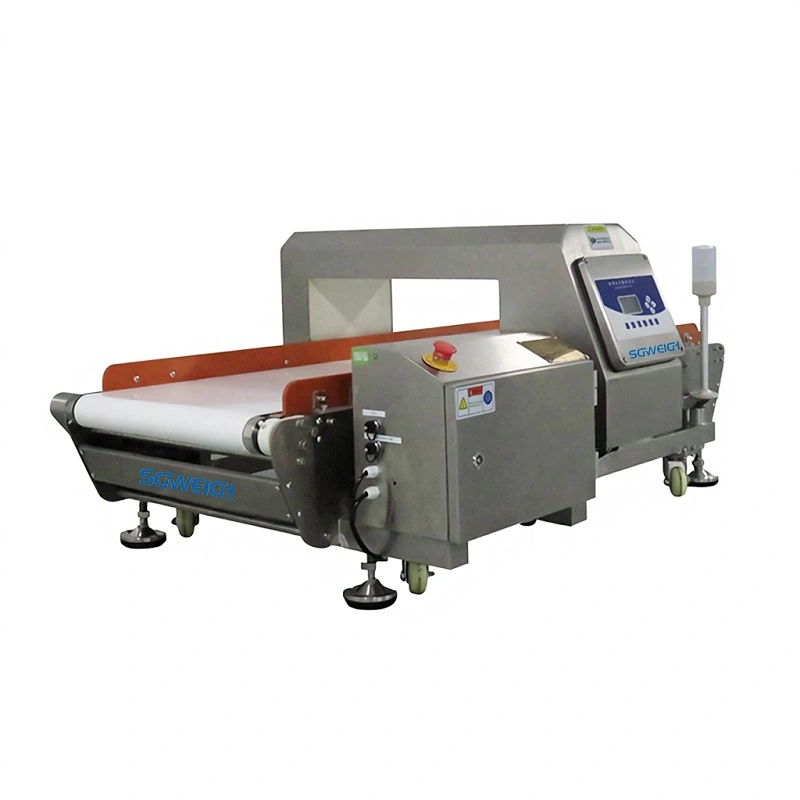

Large-Range Food Metal Detector High-Sensitivity Conveyor Belt Metal Detector
This large-range food industry metal detector is designed to ensure food safety, boasting superior sensitivity and a wider detection range. It can identify ferrous, non-ferrous, and stainless steel contaminants in large or bulk food items, providing reliable protection without impacting production efficiency. This high-sensitivity food metal detector is designed for continuous operation under harsh food processing conditions, combining robust construction with stable, high-precision performance. You are welcome to contact us at any time for quotation.

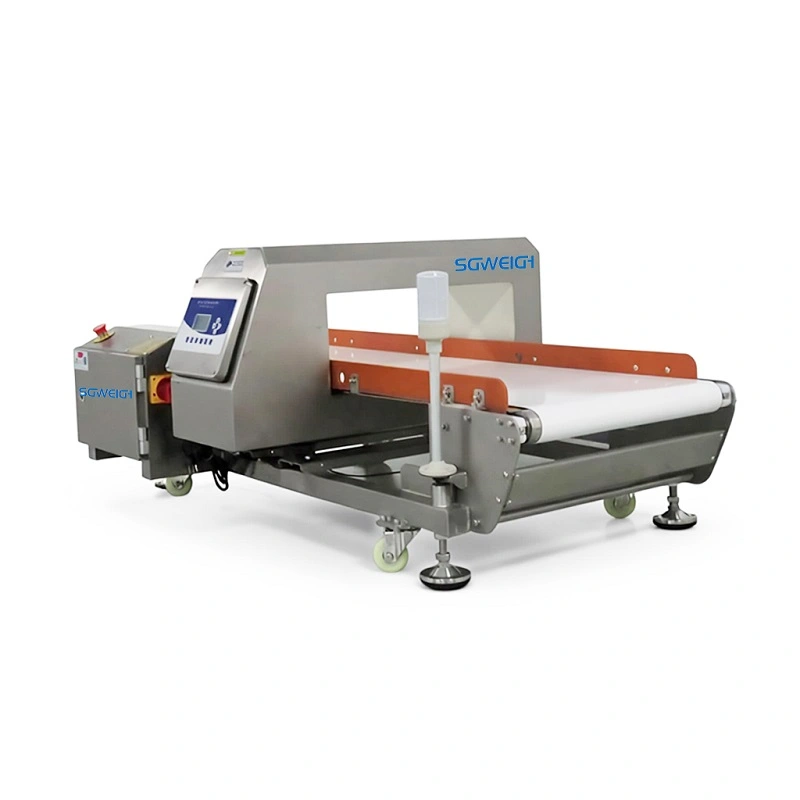

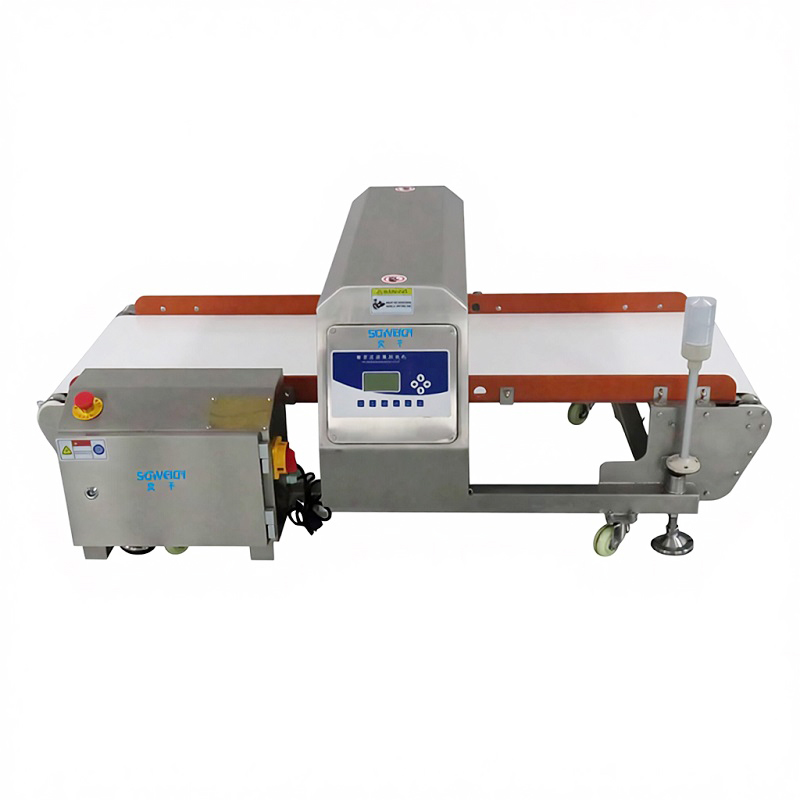

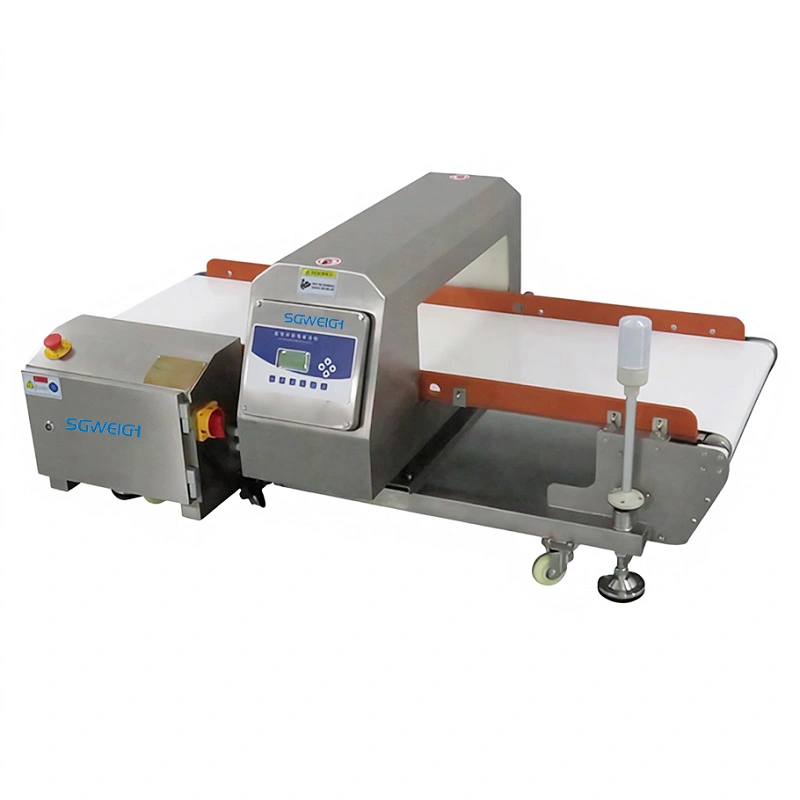

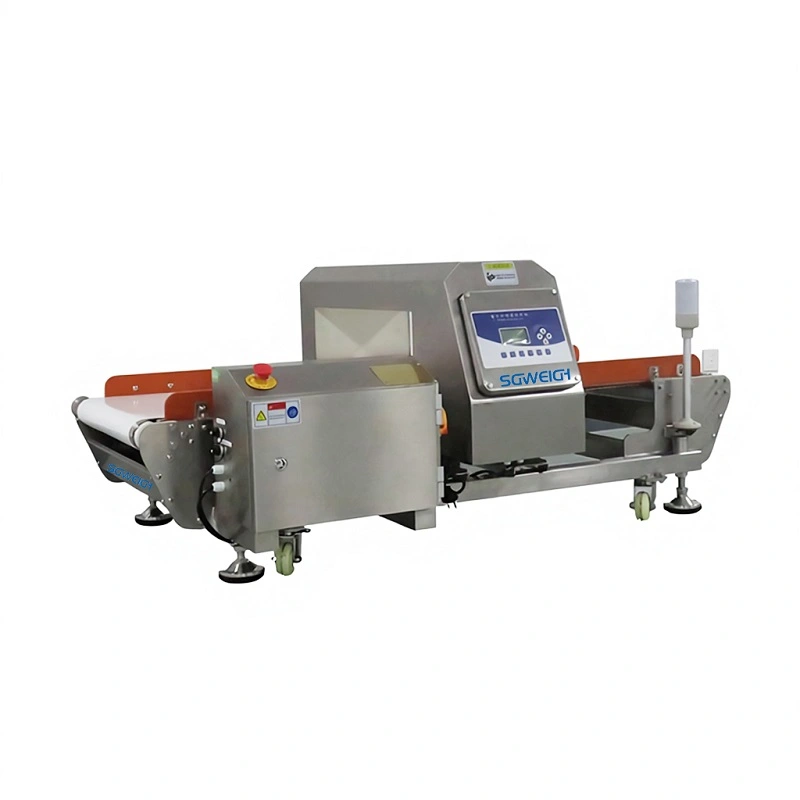

Large-range food industry metal detector photos

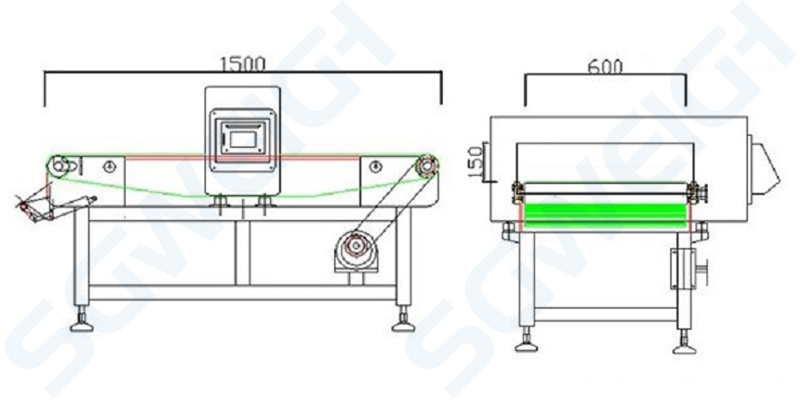

Detecting Tunnel Width 400mm* Height 60mm ( Customized)
Belt Height from Ground 770mm ( customized)
Language Chineses-English by default(Other languages customized)
Detecting Method Electromagnetic Wave
Sensitivity FeΦ0.3mm, CuΦ0.5mm, SusΦ1.0mm
Sensitivity Degree 100 Degrees
Alarm Mode Flap reject, Sound and Light Alarm, Belt-stop ( and other reject devices)
Conveyor speed Fixed speed 20m/min or adjustable 15-30m/min
Product Memory 12 products, 100 products ( optional)
Input Power/ Voltage Single-phase 220VAC or 110VAC 200W
Construction Material 304 SUS ( 316 SUS available)
Machine Weight 150kg
1. High Sensitivity Detection: Detects even trace amounts of metallic contaminants in food.
2. Wide Range of Product Handling: Suitable for solid, packaged, and bulk foods.
3. Hygienic Construction: Stainless steel body and sealed design for easy cleaning and sterilization.

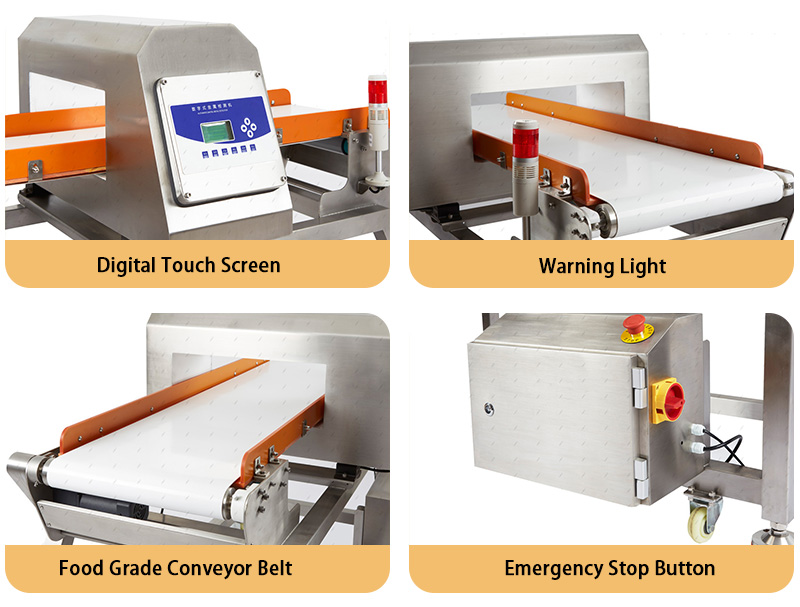

4. User-Friendly Interface: Intuitive touchscreen for quick calibration, monitoring, and reporting.
5. Automatic Rejection System: Instantly rejects contaminated products, ensuring your production line is safe and compliant.
Large-Range Food Metal Detector High-Sensitivity Conveyor Belt Metal Detector

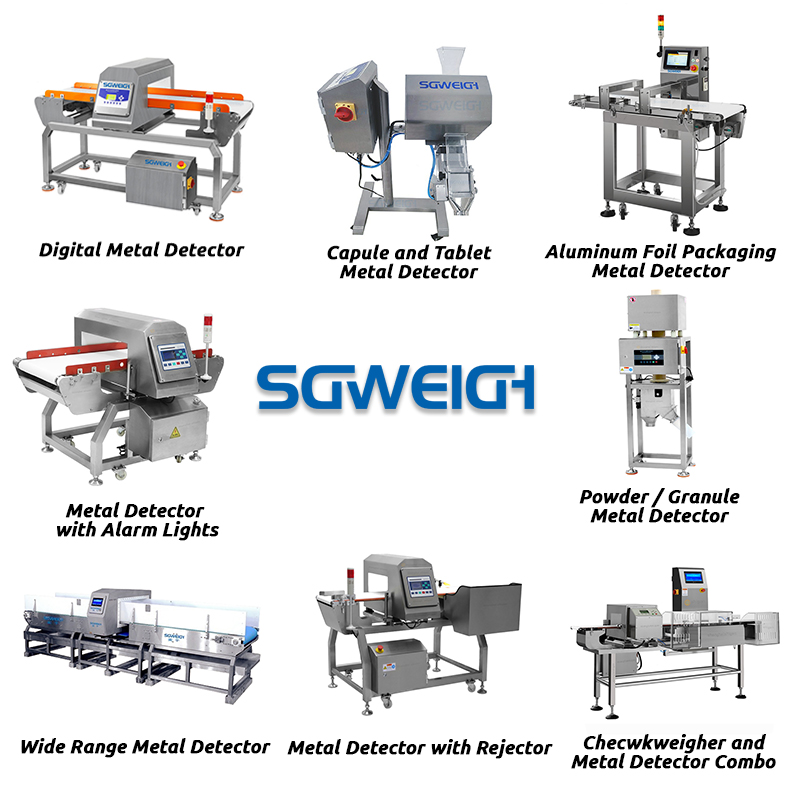

This large-range metal detector is a custom-made model based on client requirements and may not meet your needs. Our company offers digital metal detectors in stock and provides non-standard customized equipment. We also offer various large-range food industry metal detector solutions free of charge. Please feel free to contact us anytime.
Large-range food metal detectors have a wide range of applications and can be used in many industries and fields, such as the food industry, pharmaceutical industry, cosmetics industry, plastics and rubber industry, and textile industry, to check whether there are metal fragments or impurities in raw materials, semi-finished products and finished products, so as to prevent metal contamination from threatening food safety.
Large-Range Food Metal Detector High-Sensitivity Conveyor Belt Metal Detector
Inner packaging is plastic film, outer packaging is wooden or plywood.
Packaging with plastic film only, with a plastic pallet.
We can provide fumigation packaging and certification.
Shipping, training, express delivery, or as per customer's requirements.
1. Warranty: Our packaging machines come with a 12-month warranty. Most parts are replaced free of charge under warranty (PLC, servo controller, servo motor, touch screen, cylinder).
2. After-sales Service: One-year warranty, lifetime maintenance.
3. Technical Support: We will provide technical consultation, drawings, specifications, customized solutions, and technical problem analysis before customers place an order.
4. Operation Training: We welcome customers' technicians to visit our factory to learn the operation process, take photos, and record videos.
